laser welder
Negotiable
/ Set
1 Set(Min. Order)
- shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HTLASER | |
| Model Number | HT-WD400 | Pulse Width | ≤20ms | |
| Wavelength | 1064nm | Focal Spot Diameter | 0.2-3.0mm | |
| Max. Output Power | 400W | Usage | laser welder |
Product Description
Specifications

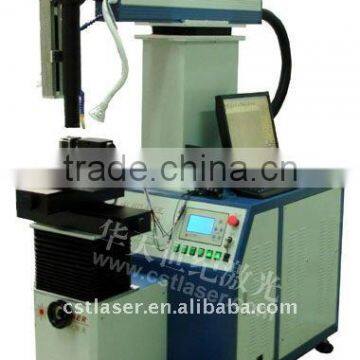

Laser welder high speed, high efficiency, deep, small deformation, small heat effect area, high welding qualityIntroduction
Suitable for welding of thin plates within 1mm; 3D work bench and the master unit are integrated; can weld space curve and welds of high variable, applied in medical, electronics, battery, instrument, etc.
Suitable materials and application
Suitable for welding of kettle, vacuum cup, stainless steel bowl, sensor, tungsten wire, high power diode (triode), aluminum alloy, laptop shell, mobile phone battery, door handle, mould, electric apparatus fittings, filter, nozzle, stainless steel products, golf head, zinc alloy artworks
Weld point, straight line, circle, square or any plane graphs drawn by AUTOCAD; weld vertical track.
Weld point, straight line, circle, square or any plane graphs drawn by AUTOCAD; weld vertical track.
Technical parameters
Model | HT-WD200 |
Maximum laser power | 200W |
Laser wavelength | 1064nm |
Laser welding depth | ≤2mm |
Pulse width | ≤20ms |
Laser welding frequency | ≤50Hz |
Adjusting range of light spot | 0.1-3.0mm |
Size of light spot | 0.2-3.0mm |
Integrity power | ≤9KW |
Power supply | 380V/3-phase/50Hz/40A |
Maximum bearing of standard work bench | ≤100kg |
Stroke of work bench | 200*200mm to 1200*1200mm |
Repeating precision of work bench | ±0.01mm |
Positioning precision of work bench | ±0.02mm |
Sighting positioning system | Red light, CCD monitor system (optional rotary clamp) |
Cooling method | Water cooling |
Master unit dimensions | 1600*800*1800mm |
