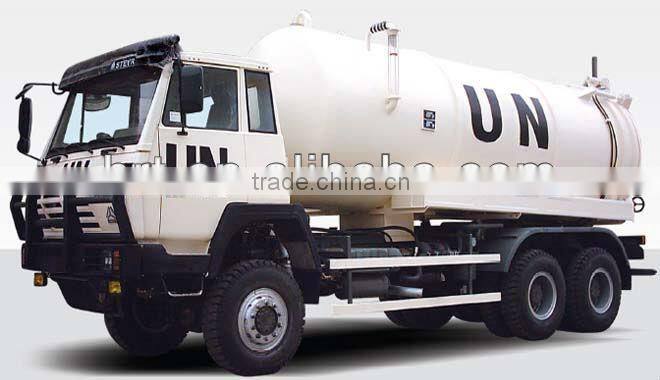

UN peacekeepers purchased Sewage Suction Truck
- China main port
- T/T
You May Like
Product Details
| Transmission Type | Manual | Condition | New | |
| Emission Standard | Euro 3 | Fuel Type | Diesel | |
| Tank Volume | 20 | Dimension (L x W x H) | 9400*2480*3800 | |
| Place of Origin | Shandong, China | Brand Name | HUANGHE SHAOSHUAI | |
| Model Number | JHL5251GXW | Horsepower | 266 | |
| Gross Vehicle Weight | 25000 |
Product Description
Specifications
UN peacekeepers purchased Sewage Suction Truck196kw,213kw Engine power
Manufacturer
Factory
UN peacekeepers purchased Sewage Suction Truck
The introduction of Germany advanced manufacturing technology, with rinsing underground sewage pipes,the collection and transportation of sludge and city life waste and building operations such as muddy water in liquid waste and other functions.
Main specification
No. | Item | Unit | Value | |
1 | Model |
| JHL5251GXW | |
2 | Chassis model |
| ZZ1256M4646C | |
3 | Engine power | KW | 196,213 | |
4 | Overall dimension of truck(L*W*H) | mm | 9400*2480*3800 | |
5 | Overall dimension of tank(D*L) | mm | Ø2050*6600 | |
6 | Effective volume of tank | m3 | 20 | |
7 | Wheelbase | mm | 4325+1350 | |
8 | Front overhang | mm | 1560 | |
9 | Rear overhang | mm | 2133 | |
10 | Tread | mm | 1939/1800 | |
11 | Max speed | km/h | 90 | |
12 | Vehicle curb weight | kg | 11650 | |
13 | Vehicle gross weight | kg | 25000 | |
14 | Diameter of suction tube | mm | Ø100 | |
15 | Suction depth | m | ≥ 8 | |
16 | Opening angle of the rear tank door | ° | 60 | |
17 | Tank lift angle | ° | 30 | |
Vacuum | Type |
| Vane pump | |
Pumping speed | m3/h | 318 | ||
Rated speed | rpm | 1300 | ||
Max vacuum | Absolute value |
| 10 | |
Percentage | % | 90 | ||
Photo:
