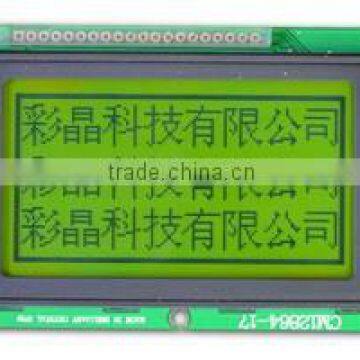

128x64 Alphanumeric lcd display module with led backlight ,stn cob
USD $11.5 - $12.5
/ Piece
1 Piece(Min.Order)
- 30000 Piece / Pieces per Month
- Shenzhen Port
- Credit Card
You May Like
-
128x64 blue white lcd display module with led backlight,STN COB
-
128x64 STN graphical LCM with ks0108 controller and LED backlight
Quality Choice
-
Fstn black white 128x64 dots matrix lcd display module with led backlight
-
240X128 dots matrix cog graphical lcd display module
-
128X32 STN graphical LCM with serial interface
-
20x4 stn blue white cob lcd display module with LED backlight ,splc780d controller and pins connection.
Product Details
| Place of Origin | Guangdong, China | Brand Name | Caijing | |
| Model Number | CM12864-17SLDAA-5 | Type | COB |
Product Description
128x64 STN graphical LCM with LED backlight ,parallel interface,5V
Product Description
Model no.: CM12864-17SLYA
Dot matrix: 128 x 64 dots
Size: 86.5 x 56 x 13.2mm
V.A: 70.8 x 38.8mm
Drive method: 1/64 duty, 1/9 bias
View angle: 6: 00
Display: STN blue or Y-G model
Voltage: 3/5V
Controller: KS0108
Top: -20-70ºC
TST: -30-80ºC
Certifications
Our factory pass ISO9001 and all products can pass CE,ROHS,SGS.
Company Advantages
14 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance
Free samples are available for some styles
Related Products
About graphical lcd module ,we have 120x32 dots matrix lcd module ,122x32 graphical lcd module,128x32 stn lcd display module ,128x64 monochrome lcd module,128x128 lcd display module,160x128 dots matrix lcd display,160x160 stn lcd,
192x64 graphical lcd display module,240x64 lcd,240x128,240x160 and 320x240 lcd module display .
| Display Content | Product No. | Outline size(mm) | V.A(mm) | Dot size(mm) | Controller | Supply Voltage | Interface |
| 192x64 | CM19264-8 | 100×60×13 | 84×31 | 0.36×0.36 | KS0108 | 5V/3V | parallel |
| 240x64 | CM24064-1 | 180×65×13.8 | 132×39 | 0.49×0.49 | T6963C | 5V/3V | serial/parallel |
| 240x64 | CM24064-2 | 180×65×13.8 | 132×39 | 0.49×0.49 | RA8835 | 5V/3V | serial/parallel |
| 240x64 | CM24064-8 | 180×65×13.8 | 132×39 | 0.49×0.49 | T6963C | 5V/3V | serial/parallel |
| 240x64 | CM24064-10 | 146×62.5×13 | 123×42.5 | 0.45×0.57 | T6963C | 5V/3V | serial/parallel |
| 240x128 | CM240128-1 | 144×104×12 | 114×64 | 0.4×0.4 | T6963C | 5V/3V | serial/parallel |
| 240x128 | CM240128-2 | 144×104×12 | 114×64 | 0.4×0.4 | T6963C | 5V/3V | serial/parallel |
| 240x128 | CM240128-3 | 144×104×12 | 114×64 | 0.4×0.4 | HD61830 | 5V/3V | parallel |
| 240x128 | CM240128-4 | 144×104×12 | 114×64 | 0.4×0.4 | T6963C | 5V/3V | serial/parallel |
| 240x128 | CM240128-5 | 154×84×12 | 114×64 | 0.4×0.4 | T6963C | 5V | serial/parallel |
| 240x128 | CM240128-6 | 144×104×12 | 114×64 | 0.4×0.4 | T6963C | 5V/3V | serial/parallel |
| 240x128 | CM240128-9 | 144×104×12 | 114×64 | 0.4×0.4 | T6963C | 5V/3V | serial/parallel |
| 240x128 | CM240128-10 | 144×104×12 | 114×64 | 0.4×0.4 | T6963C | 5V/3V | serial/parallel |
| 240x128 | CM240128-11 | 144×104×10.8 | 114×64 | 0.4×0.4 | UC1698U | 3V | parallel |
| 240x128 | CM240128-12 | 88.5×67×8.5 | 75.6×41.5 | 0.285×0.285 | UC1698U | 3V | parallel |
| 240x128 | CM240128-12 | 88.5×67×8.5 | 75.6×41.5 | 0.285×0.285 | UC1698U | 3V | parallel |
| 240x128 | CM7401 | 159×101×12 | 114×64 | 0.4×0.4 | HD61830 | 5V/3V | parallel |
| 240x128 | CM7420 | 159×101×12 | 114×64 | 0.4×0.4 | T6963C | 5V/3V | serial/parallel |
| 240x160 | CM240160-1 | 143×96.8×11 | 104×79.3 | 0.37×0.4 | RA8835 | 5V/3V | serial/parallel |
| 240x160 | CM240160-2 | 91.3×64.5×7.4 | 69.4×47 | 0.261×0.261 | ST7529 | 3V | parallel |
| 320x240 | CM320240-1 | 143×97.9×11 | 104×79.3 | 0.27×0.27 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-2 | 103×77×12.6 | 80.4×61 | 0.225×0.225 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-3 | 160×109×11 | 122×92 | 0.33×0.33 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-4 | 139×120×12 | 103×79 | 0.27×0.27 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-9 | 103×77×7.9 | 80.4×61 | 0.225×0.225 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-12 | 160×109×11 | 122×92 | 0.33×0.33 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-13 | 139×120×12 | 103×79 | 0.27×0.27 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-15 | 160×109×11 | 122×92 | 0.33×0.33 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-20 | 92.8×71.8×8 | 79.5×59.5 | 0.22×0.22 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-23 | 160×109×11 | 122×92 | 0.33×0.33 | RA8835 | 5V/3V | serial/parallel |
| 320x240 | CM320240-29 | 139×100×11.4 | 103×79 | 0.27×0.27 | RA8835 | 5V/3V | serial/parallel |
