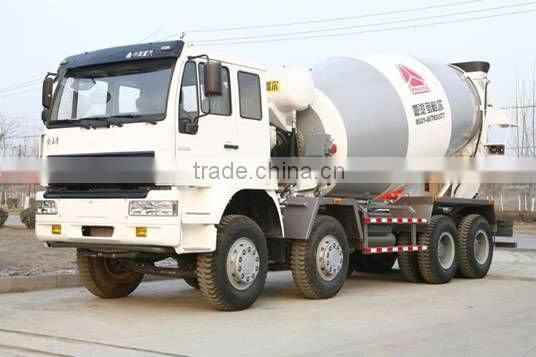

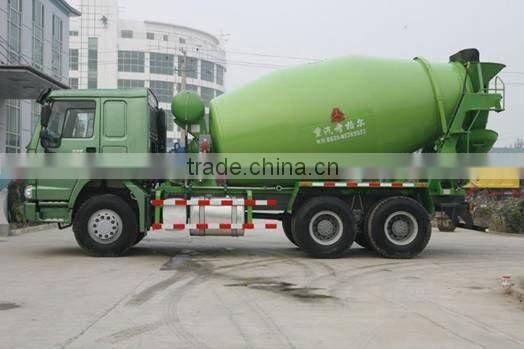

Concrete Mixer Truck Howo 6*4

Specifications

Concrete mixer truck howo 6*4
concret truck
Mixing Volume:8,9,10,12,14cubic
Engine power :290~375hp
chasis:howo,golden hoyu

Main features of upload of concrete mixer:

      Using foreign advanced technology and after over ten years of technological

improvements, now the products has become more perfect in performances, more

reliable in quality, and more convenient in operation.

1.  Feature one: The tank body uses double helical blades that makes its density

moderate, with symmetrical mixing board on the front taper place; double blades

and guiding blades

of discharge are installed on the outlet of tank, which makes the discharge more

evenly, faster in speed, and convenient for the pumping transportation of other

devices (such as

automobile pump).

2. Feature two: The tank body adopts the domestic first submerged arc welding

technology which makes it more solid in strength and more beautiful in appearance.

The linked parts of

the tank body use bounded construction which can extend its service life. The seal

head adopts German cold spinning technology that makes it sleek and fine in

appearance. And

six reinforcement plates are installed inside the seal head and can increase its

wear resistance.

3. Feature three: Low angle for mixing drum can extend the service life of hydraulic

pump, motor and reducer. The sub frame uses high intensity square tube with

damping in the central

area that can play role when vehicle is at full load and under the bad conditions of

road, which can lower the center of gravity of truck and make it move more

smoothly.

4. Feature four: The blades are extruded by more than 20 sets of molds, which can

ensure the spiral curve and angle and spiral distance, and can achieve uniform

mixing of concrete.

5. The upload production of this mixer adopts multiple advanced technology, which

can produce various types of mixer in volume such as 8m3, 9m3, 10m3, 12m3,

14m3, 16m3and so on.
