1000feet VGA Extender With Audio Over CAT 5E/6 Ethernet

Specifications

Features & Applications

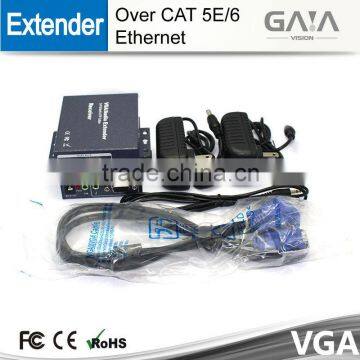

The CAT5-Link TM mini VGA-Audio Extender and tiny VGA-Audio Remoter transmit VGA-Audio up to 100/1200 feet away from a computer using CAT5/5e/6 cable. The VGA-Audio extender consists of a local unit that connects to a computer and also supplies VGA video and stereo audio to a local monitor and speaker, and a remote unit that connects to a monitor and speaker. The mini VGA-Audio extender and tiny remoter uses +9V to +12VDC (500mA) external adaptor power, mini extender has mounting holes in metal case.

• Sharpest and clearest VGA quality over CAT5 of any manufacturer.
• Hi performance Audio quality over CAT5 of any manufacturer
• Supports local and remote VGA monitors and Speakers.
• Real Time Transmission Video & Audio signals by single CAT5 cable
• No TCP/IP protocol and networking setting and maintenance
• No Ant firewall needed, no IP and networking occupation
• Plug and Play, compatible with all format VGA video signals.
• Built-in ESD and surge protection.
• Available with VGA contact and RGB brightness adjustment
• Power-red LED.
• Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.
• Metal case (Sender, Remoter)

Local Unit

Host Connection

• Supports a PC, SUN, MAC or PC Switch.
• Female 15-pin HD connector for computer connection.
• Stereo audio support - 3.5mm stereo plug.

Local Access

• Crisp and clear 640X480 to 1920x1440 video resolutions.
• Female 15-pin HD and 3.5mm stereo connectors for local VGA monitor and speaker.
• Stereo audio input - 3.5mm stereo jack.

Power

• Single channel VGA Audio Sender:
• +9V to +12V DC/500mA via AC/DC adapter
• 3.5mm male stereo audio cable
• Power consumption: 2W

MTBF

• Single CH Mini Sender: 89,708 hrs

Cables

• CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

Dimensions:

• WxDxH (mm): 95x97x28 (Mini Sender)
• Weight: 550g (Mini Sender)
• Mounting holes in metal case(Mini Sender)

Environmental

• Operating temperature: 32°F to 100°F (0°C to 38°C).
• Storage temperature: -20°F to 140°F (-30°C to 60°C).
• Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.

Remote Unit

• Supports resolutions from 640X480 up to 1920x1440; refer to the resolution charts below for resolutions at different lengths.
• Female 15-pin HD connector.
• One 3.5mm connector for audio output connection.
• Both Mini and Tiny VGA Remoter can support POE solution Video Quality and Adjustment
• ToolFreeTM - Mini VGA Audio Remoter,: video quality brightness, contractadjustment for different lengths of CAT5/5e/6 cable is done manually for video-audio remoter.
• EasyToolTM Tiny VGA Audio Remoter (30/60/100m): video quality and audio, no adjustment needed.

Power

• Mini VGA Audio Remoter (ToolFreeTM), Tiny VGA Audio Remoter (EasyToolTM) +9V to +12V via AC/DC adapter (Included).

• Power consumption: 1W (Tiny Receiver) 2W (1to 2/4 Receiver (Repeater))

• POE VGA Mini or Tiny Remoter (100m/300ft) : powered from local unit via CAT5/5e/6 cable, 300ft.

MTBF

• Single CH Mini Remoter: 81,625 hrs, Tiny Remoter: 81,214 hrs.

Dimensions:

• WxDxH (mm): 64x45x23 (Tiny Remoter)  95x97x28 (Mini Remoter)
• Weight: 300g/550g
• Mounting holes in metal case(Mini Remoter)

Audio Specification

• Stereo/Audio can be heard both locally and remotely.
• Frequency response: 20 Hz to 20 kHz, +/-1 dB.
• Signal-to-Noise Ratio (SNR): 76 dBA.
• Total Harmonic Distortion and Noise (THD+N): 0.017%.
• Stereo crosstalk: -70 dB.
• Input impedance: 10k Ohms.
• Line level 640ohm output; supports multimedia speakers.
• Maximum I/O levels: 3.1Vp-p (line level).

Electronics Specification

• Video Input :HDB-15 Female
• Video Ouput:HDB-15 Female (75ohm load)
• Video Input Signal: 0.5Vp-p - 1Vp-p Single End
• Video Ouput Signal: 0.5Vp-p -1Vp-P Single End (75ohm load)
• Video Transmission Distance: 100-1200ft (CAT5/5E/6 cable)
• Audio Input: 3.5mm Stereo Female Socket
• Audio Output: 3.5mm Stereo Female Socket
• Audio Input: 1Vp-p – 2Vp-p Single End
• Audio Output: 1Vp-p – 2Vp-P Single End(300/640 ohm load)
• Audio CMRR: -80dB @1kHz
• Video CMRR: -55dB @1MHz
• Audio Transmission Distance: 100-1200ft (CAT5/5E/6 cable)
• External Power Supply: +9V to +12V DC
