Product Details
Place of Origin | Guangdong, China | Brand Name | Gaia Vision | |
Model Number | HDSW0301M2 |
Product Description

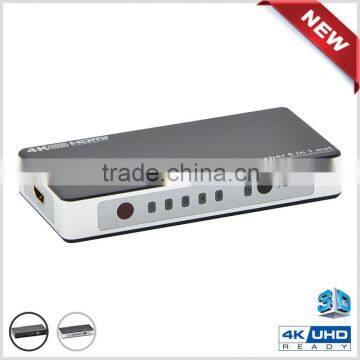

NEW 5 in 1 HDMI Switcher 5x1 HDMI HUB Switch
Our series of HDMI converters, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.
The 5x1 HDMI Switcher allows a single HDMI sink to access multiple sources.The Switcher allows five HDMI devices to be switched easily through one HDMI compatible monitor or projector. The Switcher can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES
- Five HDMI input signals switched to a single HDMI sink devices
- Support deep color 30bit, 36bit
- Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
- Digital audio format - DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Support signal retiming
- Support - input up to 15 meters 26AWG HDMI standard cable length, output up to 15 meters 26AWG cable length.
- Inputs can be switched with the IR remote control,also can be controlled by button.
- It can smartly jump over those input sources which are not connected.
- With the smart function of memory, it can come back to the latest status when restarted or reconnected.
- No loss of quality
- Installs in minutes
- Need DC5V/1A power supply
SPECIFICATIONS:
HDMI resolution …… 24/25/30fs/2160p, 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format …………………………..…………….24bit/deep color 30bit,36bit
Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth……………………………………………………………………………250MHz
Max baudrate……………….…….………………….…………………………………...7.5Gbps
Input/Output TMDS signal ………….…………………………..…………0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)
Input cable distance..…... ……………………….…….…≤15m AWG26 HDMI standard cable
Output cable distance…………………………….……….≤25m AWG26 HDMI standard cable
Max working current………………………………………………………………………...650mA
Power adapter format..Input: ……………...AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….………………………………… (-15 to +55℃)
Operating Humidity range………………………….….…..….5 to 90%RH (No Condensation)
Dimension (L x W x H) ………………………………..………………………134x65x21 (mm)
Shipping:
1. UPS / DHL / FEDEX /EMS / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.
Delivery:
1. Sample within 1-3 days
2. Wholesales Orders : 5-10 days according various quantities
3. OEM 10-20 days after receiving your sample confirmation and payment.
Warranty:
1. One year warranty.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
