Home > Products > Cable Stripping Machine > 918-KOB Factory Price cable cutting and stripping machine CE ISO

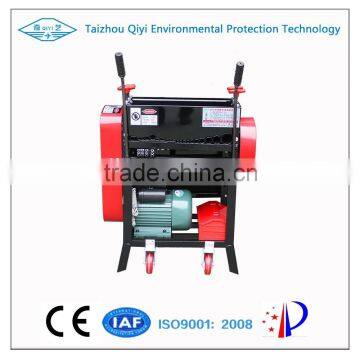

918-KOB Factory Price cable cutting and stripping machine CE ISO

FOB Price

US$ 500 - 550 / Set

1 Set(Min. Order)

Port Ningbo/Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	QIYI
Model Number	918-KOB		After-sales Service Provided	No overseas service provided

Product Description

Model	918-KOB
	Automatic wire stripping machine
Applicable Scope	Φ1mm~40mm
Name	New multi-function wire stripping machines
Size	70cm × 55cm × 84cm
Weight	110kg
Voltage Power	110v/2.2kw ,220v/2.2kw, 380v/1.5kw
Capacity	200kg-1000kg
Functions and features	It is the latest multi-function stripping machine which is the most advanced and functional disassembling device currently. It processes various specifications and shape of cable, such as cable television line, three core and four core cable, wire, copper wire, monofilament strands, wire separation and so on. The core and outer shell will be automatically separated after the blade rolling out from the insulating layer.

DESCRIPTION:

*3HP Motor,Belt&Gear Driven
*Power Supply:220V/110V/380V
*Cable Range:1-40mm
*15 round cutting Channels(including 2 flat cutting channel and 3 twin wire cutting channels ),and additonal 4 channels for some wires or TV wire,telephone wires and Net Wires,additonal 1 channel main for processing single core wire
*Total 23pcs cutting wheel blades
*Dual Channel five knifes stripping machine(Top&Bottom)
*Extra Handles easy for mooving the machine
*Front protecting Guards more save when operating

This machine can strip upto 40mm diameter ,such mult-functional wire stripper can strip almost all kinds of wires/cables/TV NET Phone wires under 40mm.

Product Overviews

All Models

Model	Applicable scope(mm)	Size(cm)	Output(kg/10h)	Power(kw)	Weight(kg)
DX-QYF	Φ1.5-Φ35	543448	100-300	1.5	68
DX-QYAF5	Φ1.5-Φ38	633748	200-500	1.5	77
DX-QY	Φ6-Φ70	633748	100-700	1.5	55
918-F	Φ1-Φ35	545284	100-300	1.5	81
918-AF5	Φ1-Φ38	555284	100-500	1.5-2.2	89
918-KOB	Φ1-Φ40	705584	200-1000	2.2	110
918-QY6	Φ5-Φ90	8478120	200-3000	3	215
918-Press	Φ1-Φ40	7055115	400-600	3-4	196
918-B	Φ1.5-Φ98	7755118	200-5000	3-4	240
918-B120MM	Φ1.5-Φ120	9355128	200-7000	4	280
918-150MM	Φ8-Φ150	9858132	1000-8000	4-5.5	320
918-B200MM	Φ50-Φ200	13862128	5000-12000	5.5	620

Maintenance

1. Operator must pay special attention to the safety of hands. FATIGUE OPERATION IS FORBIDEN !

2. The pressure should not be too tight. Overload work will shorter the life span of the machine.

3. If the cable cannot get through, operator has to check whether the belt is loose or the pressure is too light, or the blades are wrong directed.

4. If this machine works with heavy duty for a long time, operator has to check the transmission oil capacity, grease lubrication is required on the four shaft gears before working every three months.

5. Keep daily maintenance of the four bearing, any damager of bearing will cause shaft broken easily after continuous operating.

6. When work with bigger size cables, the upper shaft should be kept hanging on the same line by both sides.

7. Any loosing of the four lifting screw nuts of the transmission and motor have to be adjusted by fastening the chain and V-belt.

Note: the position of transmission and the motor have to be kept parallel

If the copper wire and rubber or plastic cannot be separated completely, please pay attention as below:

1, Choose the right feeding hole, adjust the positioning fixture via the diameter of cable‘

2,Adjust the gap between the drove-gears according to the diameter of cable.

Basically, the gap should be smaller than the diameter of cable.

3,Keep both sides of the long blades to be symmetrical, as well as the long blades and the position of fixture.

Workshop

Package and shipping

Our Services

1) Lifelong Maintenance and considerate technical support.

2) Any problem before or after, you could find and talk with us anytime anywhere.

3) Technicians can be sent to abroad, door to door service.

4) Vedio/CD of test running and installation, Users’ Manual.

5) Complete parts& tools in box sent with machine.

Company Information

We are a professional and experienced environmental protection dismantling machine manufacturer in China. We've specialized in field for a decade. Many of our products have been awarded national patents and utility model patents. So far, we have been certified by Quality Management System ISO 9001:2008 and CE. Every year, our sales volume is on the top among manufacturers in China. We have different models which have different function and capacity and we an make the most suitable solution according to your requirement.

Our products include: cable recycling machine, wire stripping machine, waste motor recycling machine, waste radiator recycling machine, pcb recycling machine, single shaft shredder, double shaft shredder, etc. Among them, cable recycling machine is our main product.

FAQ

1) Are you a factory or trade company?

We are professional dismantling machine manufacturer with own factory for 10 years, from a pure wire stripping machine producer, water-type copper wire recycling machine producer, to an experienced dry-type copper wire recycling machine and other environmental protection equipment producer.

2) How can I trust your company?

a. With professional design and sales team, we can serve you the perfect solution with lowest cost.

b.Assessed by third party, national patents for all equipment, also CE, ISO.

c.Welcome to inspect anytime. We are near Shanghai airport.

d.About the machine, we do much better. Raw material, motor, outlook, overall design, stable ,smooth

3) How about the testing running & installation?

Before delivery, we have finished the test over 3 times.

If the machine you buy is of integral design, it doesn’t need installation at all. If it’s of parted design, we can send our technicians to your country to install and adjust.

4) Any warranty?

Under the proper usage, one year for whole machine except delicate parts.

5) Is your price competitive?

Only good-quality machine we supply. Surely we will give you best factory price based on superior product and service.

If you have any interest in this machine, please don't hesitate to contact me.
