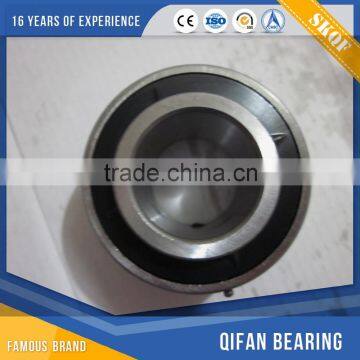

Y-bearing units YAR208-2F

Y- bearing units

Bearing YAR208-2F

Product range features
1. Designed for quick, easy and safe mounting

2. Sealed, greased and ready to mount

3. Multiple sealing solutions available

4. Virtually maintenance-free variants available

5. Available in different designs, materials and sizes

6. Standard and food grade greases available

7. In accordance with ISO

User benefits

1. Increased productivity

2. Reduced maintenance cost

3. Reduced environmental impact

4. Long bearing service life

5. Reduced noise and vibration levels

6. Quick, easy and safe to replace

Applications

Because of their versatility, and cost effectiveness, Y-bearings are typically found in the following applications:

1. Agricultural machinery

2. Food and beverage processing and packaging

3. Conveyor systems

4. Material handling systems

5. Textile equipment

6. Industrial fans

7. Special machinery (e.g. car wash systems, gym equipment, go-karts)

Y-bearings, which are usually referred to as insert bearings, are based on sealed deep groove ball bearings in the 62 and 63 series, but have a convex outer ring and in most cases an extended inner ring with a certain locking device enabling quick and easy mounting onto the shaft.

Y-bearings are available singly or as units. Y-bearing units consist of a housing, bearing and seal that is preassembled and greased at the factory. These ready-to-mount units can accommodate moderate initial misalignment (Demo) but normally do not enable axial displacement of the shaft.

Y-bearings and Y-bearing units offer a simple, cost-effective solution that can provide a number of benefits.
