MINI HDMI2HDMI+Audio converter

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Gaia Vision
Model Number	GYHS35

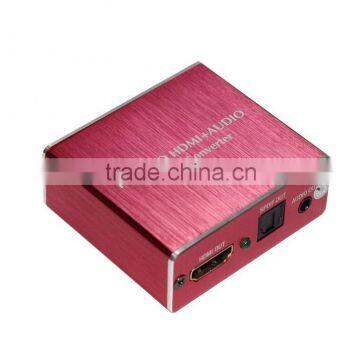

MINI HDMI2HDMI+Audio converter

Product Description

The HD converter allows the HD Source connected to single HD Display and adds extra one 3.5 earphone and SPDIF audio out port.

FEATURES:

l One HDMI input converted to one HDMI+AUDIOoutput .

l Output audio support: SPDIF+R/L analog Audio Output.

l Input Resolution: up to 4KX2K,1080P 60Hz,3D/24Hz.

l HDMI to achieve the synchronization of audio signal separation. There are PASS / 2.0CH / 5.1CH three kinds of audio mode options.

l Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length, No loss of quality.

SPECIFICATIONS:

Dimension (L x W x H)	51X56X22(mm)
Weight	61g
Max bandwidth	HDMI,SPDIF,3.5mm&L/R
Audio output	3.5mm&L/R+SPDIF
Max bandwidth	225MHz
Max baud rate	6.75Gbps
HDMI resolution	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format	24bit/deep color 30bit,36bit
Input cable distance	≤15m AWG26 HDMI standard cable
Output cable distance	≤20m AWG26 HDMI standard cable
Max working current	190mA
Standby power	5V/500mA
OperatingTemperature range	-5 to +40℃
Operating Humidity range	5 to 90%RH (No Condensation)
