Military connectors
- Shanghsi
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | kaipu | |
| Model Number | FQ18 |
Product Description
Specifications

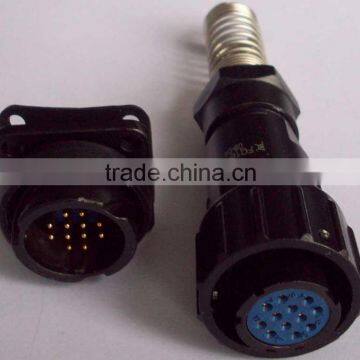

Military connectors,FQ18 series connectors can be useed in the water-proof place.They can be IP67 water proof. black color.Military connectors,FQ series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment..
Product Ordering
FQ 18 7 T K 8
1 2 3 4 5 6
1. Name of series: FQ
2.Shell size : 18
3.Number of contacts: 1,2,3,4,5,6,7,10,12
4.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle,
Z2:Receptacle with O ring,ZY: circular recptacle
5. Type of contacts: K:socket,J:pin
6. Wire gauge: 6,7,8,9,10
Technical characteristics The connector is allowed to submerged in 1m deep water for 30min.(Ip67)
Temperature | Relative humidity | Atmosphere | Vibration | Shock | |||||||
-55°C~+85°C | (90~96)% at40°C | 4.4KPa | 10~200Hz,150m/s² | 490m/s² | |||||||
Current | Voltage | Contact resistance | Endurance | ||||||||
2A~5A | 110V/250V | ≤10mΩ | 500cycles | ||||||||
10A-25A | 400V | ≤5mΩ | 500cycles | ||||||||
Environment | Voltage proof | Insulation resistance | |||||||||
Normal | 2000V For 400V | ≥5000MΩ | |||||||||
1500V For 250V | ≥1000MΩ | ||||||||||
1000V For 110V | ≥1000MΩ | ||||||||||
Moisture | 1000V For 400V | ≥100MΩ | |||||||||
750V For 250V | ≥20MΩ | ||||||||||
500V For 110V | ≥10MΩ | ||||||||||
Low pressure | 300V For 400V | - | |||||||||
250V For 250V | |||||||||||
180V For 110V | |||||||||||
