Home > Products > water proof metal shell connectors > circular receptacle

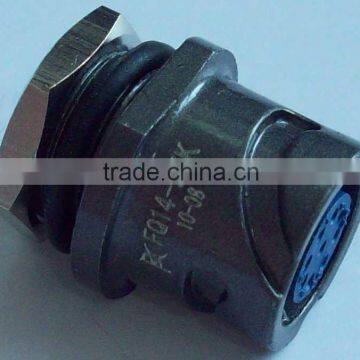

circular receptacle
- Shanghsi
- T/T Credit Card
You May Like
Product Details
| Material | Alloy | Technics | Casting | |
| Type | Coupling | Place of Origin | Zhejiang, China | |
| Model Number | FQ14 | Brand Name | kaipu | |
| Connection | Flange | Shape | Equal | |
| Head Code | Other, circular |
Product Description
Specifications
circular receptacle, FQ14 series circular type can be useed in the water-proof place.They can be IP67 water proof.CE,ROHScircular receptacle,cable connectors,Cable to box connector FQ14 series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment.IP67 protection.
Product Ordering
FQ 14 6 T K 8
1 2 3 4 5 6
1. Name of series: FQ
2.Shell size : 14
3.Number of contacts: 2,3,4,5,6,7,910,13
4.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle,
Z2:Receptacle with O ring,ZY: circular recptacle
5. Type of contacts: K:socket,J:pin
6. Wire gauge: 5,6,7,8,9
Technical characteristics The connector is allowed to submerged in 1m deep water for 30min.(Ip67)
| Temperature | Relative humidity | Atmosphere | Vibration | Shock | ||||||
| -55°C~+85°C | (90~96)% at40°C | 4.4KPa | 10~200Hz,150m/s² | 490m/s² | ||||||
| Current | Voltage | Contact resistance | Endurance | |||||||
| 2A~5A | 110V/250V | ≤10mΩ | 500cycles | |||||||
| 10A-25A | 400V | ≤5mΩ | 500cycles | |||||||
Environment | Voltage proof | Insulation resistance |
| ||||||||
Normal | 2000V For 400V | ≥5000MΩ |
| ||||||||
1500V For 250V | ≥1000MΩ |
| |||||||||
1000V For 110V | ≥1000MΩ |
| |||||||||
Moisture | 1000V For 400V | ≥100MΩ |
| ||||||||
750V For 250V | ≥20MΩ |
| |||||||||
500V For 110V | ≥10MΩ |
| |||||||||
Low pressure | 300V For 400V | - |
| ||||||||
250V For 250V |
| ||||||||||
180V For 110V |
| ||||||||||
