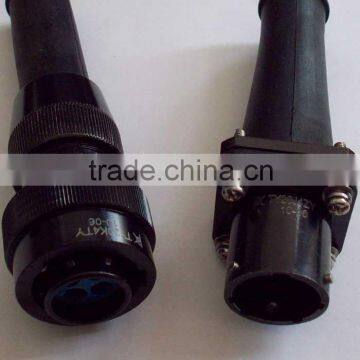

TY20 connectors
- Shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | kp | |
| Model Number | TY20 | Type | VGA | |
| Application | Other, railway station | Gender | Other, male and female |
Product Description
Specifications
TY20 CONNECTORS, connectors,circular rain proof connectors TY series use the high reliable hyperboloid socket as the contacts.TY20 connectors,Military connectors ,Circular rain proof connectorsTY series use the high reliable hyperboloid socket as the contacts.This connector has the features of low contact resistance,soft force of mating and unmating,anti-vibration,shock-proof,high reliability,etc.The main technical characteristics is in accordance with Ministry of Railway standard TB/T2761. The type of connection between socket and plug is bayonet coupling.This product is widely used for the connection between electrical and electronic equipments for the railway,electricity,etc.Both plug and receptacle may be mounted with pins or sockets. Product Ordering
TY20 J 4 Z Y
1 2 3 4 5
1. Name of series: TY20
2.J:Pin,K:Socket
3.Number of contacts: 4,5
4. T:Plug,Z:Receptacle
5. Y: Crimp contacts.
Technical characteristics
Temperature | Relative humidity | Atmosphere | Vibration | Shock |
-55°C~+125°C | (90~95)% at40+2°C | 101KPa~6.7Pa | 10~2000Hz,154m/s² | 300m/s² |
Current | Voltage | Contact resistance | Endurance |
10A(1.5mm Silver) | 500V | ≤2.5mΩ | 500cycles |
20A(2mm Gold) | 500V | 1.25 mΩ | 500cycles |
