high pressure connectors

Specifications

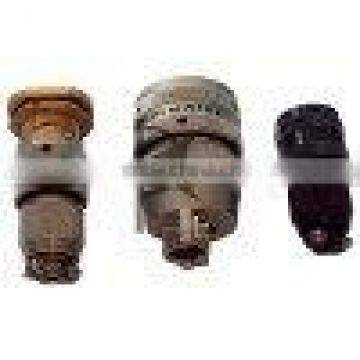

High pressure connectors Y11 series connectors are used extensively for the connections between electrical instrument and equipment with 3 point bayonet coupling and 5 key/keyway mating,quickly push-pull,small size,light-weight,high reliability,diversified functions and wide range of type.Contact termination is solder.The shell is shield or non-shield with ordinary sealing,vacuum sealing,high pressure sealing, dust-proof,rain-proof.The seal of receptacle is ordinary sealing and glass sealing.Termination type is flange,threaded and thro-wall. Y50

Y11series connectors is made comform to the standard GJB101A(similar as MIL-C-26482G series). Y11x series is same as Y50x series,Y11D is same as Y50D.

Product ordering

                Y 11  X   II  20 41  Z  J  10 - 2

                 1    2   3      4  5   6  7  8    9

    1.Name of the product:  Y11series circular connectors(Y50 series)

  2.Seal type: X:rubber,Hglass,P:shield,Nradiation-proof

3.   5 key/keyawy Position: III,Iwithout notice

4.Type of shell:     08,10,12,14,16,18,20,22

5.Number of contacts:4,7,10,12,16,19,21,26,32,41

6.T:plug,Z:receptacle

7.Type of contacts:J:pin,K:socket,S:panel(pin and socket)

8.Termination:  10:square flange,11:circular flange,14:screw

9.Cable shell:  2:pressure brace,5:rubber pipe,6:shield
