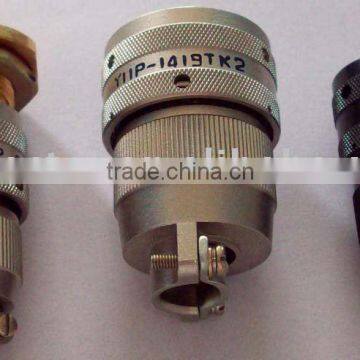

Military connectors Y11 series connectors are used extensively for the connections between electrical instrument and equipment with 3 point bayonet coupling and 5 key/keyway mating,quickly push-pull,small size,light-weight,high reliability,diversified functions and wide range of type.Contact termination is solder.The shell is shield or non-shield with ordinary sealing,vacuum sealing,high pressure sealing, dust-proof,rain-proof.The seal of receptacle is ordinary sealing and glass sealing.Termination type is flange,threaded and thro-wall.

Y11series connectors is made comform to the standard GJB101A(similar as MIL-C-26482G series).

Product ordering

                Y 11  X   II  20 41  Z  J  10 - 2

                 1    2   3      4  5   6  7  8    9

    1.Name of the product:  Y11series circular connectors

    2.Seal type: Xrubber,Hglass,Pshield,Nradiation-proof

3.5 key/keyawy Position: III,Iwithout notice

4.Type of shell:     08,10,12,14,16,18,20,22

5.Number of contacts:4,7,10,12,16,19,21,26,32,41

6.Tplug,Zreceptacle

7.Type of contacts:Jpin,Ksocket,Spanel(pin or socket)

8.Termination:  10square flange,11circular flange,14screw

9.Cable shell:  2pressure brace,5rubber pipe,6shield
