Auto Hospital Gauze Packaging Machinery

Specifications

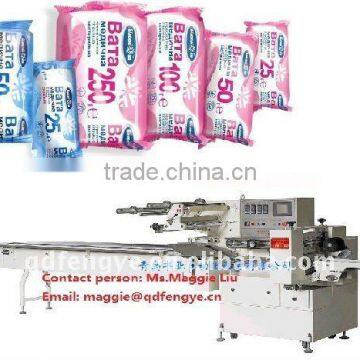

Auto Medical Gauze Packaging Machinery

Application:

Suitable for packaging operations of foodstuffs in small packages(such as medical bandage, cottom gauze, instant noodles, bread, biscuits, bottled yoghurt beverages etc.) daily use items (such as medicine, cosmetics, soap, etc.) and industrial component parts. It has a wide scope of application, and can be adjusted for application in packaging of a variety of objects.

Features:
1. Compact design and easy operation.
2. Automatic on-site stop.
3. Digitally indicating the size of the film, speed of wrapping, turnout and temperature.
4. Micro-computer control system based control system reliable and stable, low maintenance.
5. Speed control via A.C. invertors. Film control via servo motor. We also can supply the machine with two servo motors.
6. Photoelectric cell and dual tracking without mechanical contact.

Model: FA450/120

Main Technical Data:

Capacity:50-200 packs/min(depends on material and thickness of film and packaging size)
Packaging size: length45-210mm, width10-150mm, height:15-70mm
Floor space: 4400mm*965mm*1750mm
Power consumption: 3.7kw, single phase: 220V, 50Hz
Net Weight:1000kg

Packing material: Any heat-melt-cut sealing materials like paper/PE,OPP/PE,OPP/AL/PE, etc.

We have the most professional technology ( more than 20 years ) and most serious attitude for our packing machines.
