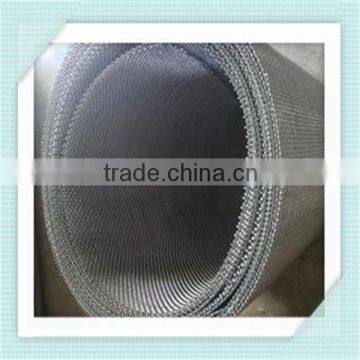

Dutch weave stainless steel wire mesh filter

• Material: SS 201,202,304,304L, 316,316L, 321, 430,ect

• Woven style: plain,twill,dutch

• Mesh :1-1500mesh
• Diameter: 0.0008"-0.08"

Used for the majority of commercial applications and for filtration where a high flow rate is required.

 Twill Weave

Each weft wire passes alternately above and below every successive pair of warp wires and vice versa.

This weave of stainless steel wire cloth permits a heavier wire diameter to be used than would be possible in a plain weave with similar mesh count.

 Dutch Weave

Dutch Weave is a description applied to woven stainless steel wire cloth where the diameter of the warp and weft wires, and the mesh count in the warp and weft directions, are different. The wires are driven up much closer during the weaving process, thus producing a more densely compacted media.

Mesh count per inch and aperture size in microns are the most commonly used methods of describing the various Dutch Weave specifications

Woven as a plain weave, but with the warp wires of greater diameter than the weft wires.

The weft wires are woven tightly together producing a strong wire cloth whilst allowing a good flow rate.

Stainless Steel Wire Mesh Features:

• Corrosion resistance.
• Anti-acid and alkali.
• Anti-high temperture.
• Good filter performance.
• Long using life

Applications:

• In acid, alkali environment conditions sieving and filtering.
• Petroleum industry as mud mesh,.
• Chemical fiber industry as screen mesh.
• Plating industry as acid cleaning mesh

 Wrapped with moister-barrier paper, then in wooden cases.
