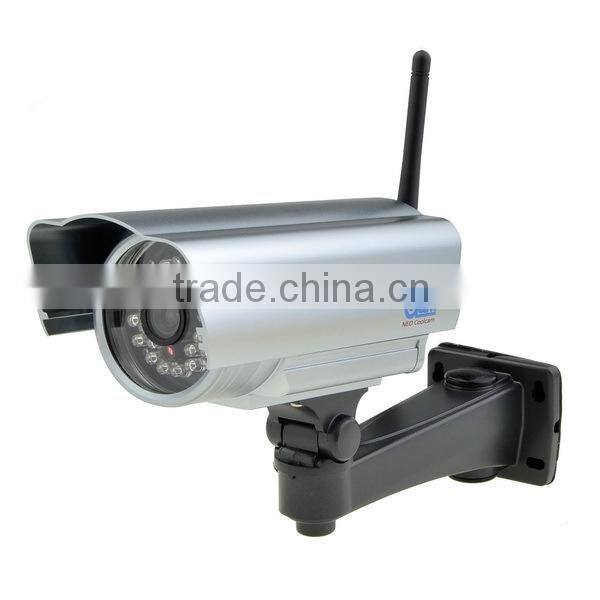

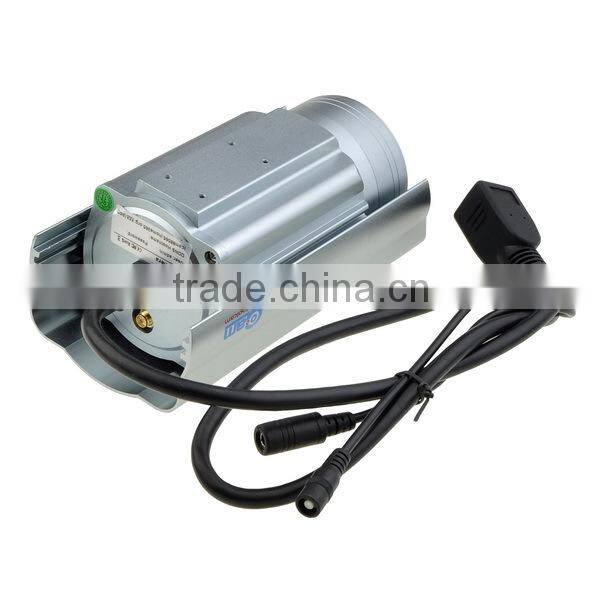

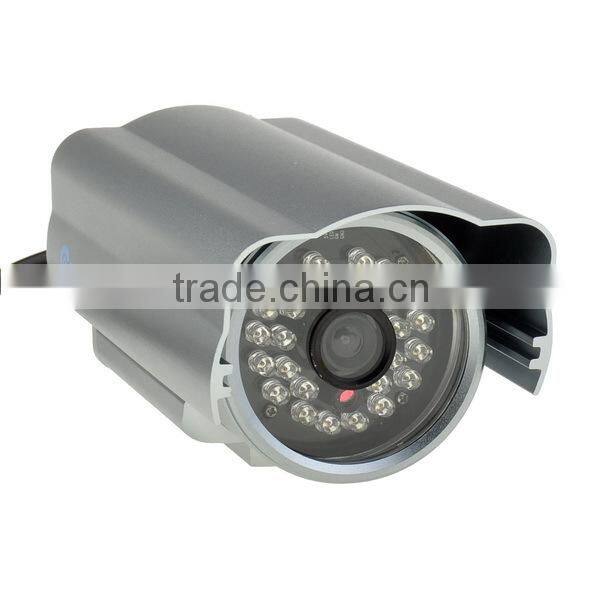

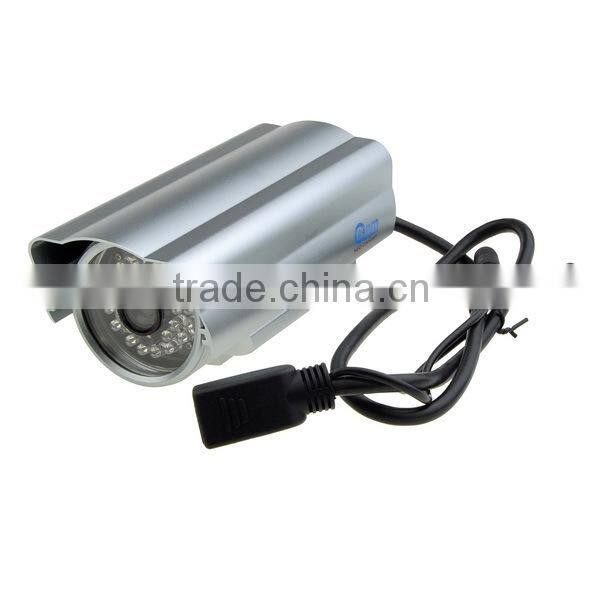

Outdoor Wired/Wi-Fi DIY plug and play IP Cameras

 ITEM

P2P IP CAM

Image Sensor

 Mage sensor

 1/4" Color CMOS Sensor

 Display

 640 x 480 (300K Pixels)

 Lens

 f:3.6mm, F:2.4 (IR Lens)

 Mini.illumination

  0.5 Lux

 Lens

  Lens Type

 Glass Lens

 Viewing Angle

 60 Degree

Audio

Microphone

Not

Domain name

Server

P2P server

 Video

  Image Compression

  M-JPEG

 Image Frame Rate

  15 FPS(VGA),30FPS(QVGA)

 Resolution

 640 x 480(VGA), 320 x 240(QVGA)

 Flip Mirror Images

 Rtical / Horizontal

mode

50Hz, 60Hz or Outdoor

 Video Parameters

 Brightness, Contrast

 Communication

 Ethernet

 One 10/100Mbps RJ-45

Supported Protocol

  HTTP/DHCP/IP/TCP/UDP/SMTP/DDNS/PPPoE/UpnP/P2P

Mobilephone monitor

Support iPhone/iPad/3G phone/Android smartphone

 Wireless Standard

 IEEE 802.11b/g/n

 Wireless Standard

 802.11b:11Mbps(max.)  802.11g:54Mbps(max.)

 Wireless Security

  64/128-bitWEP Encryption

 Physical

  Pan/Tilt Angle

Fixed

 Infrared Light

 24 IR LEDs, Night visibility up to 10-20 Mete

 Product size

 176(L) x83(W) x76mm(H)

 GrossWeight

1386.6/pcs  (packing size:245x145x120mm)

 NetWeight

 830g/pcs (only product)

 Power

 Specification

 DC 5V/2.5A  1.5 meter

 Power Consumption

 5 Watts

 Environment

 Operate Temper

 0°~ 55°C  (14°F~122°F)

 Operating Humidity

 20% ~ 85% non-condensing

  Storage Temper

 -10°C ~ 60° (14°F ~140°F)

 Storage Humidity

 0% ~ 90% non-condensing

PC Requirements

 CPU

 2.0GHZ or above (suggested 3.0GHz)

 Memory Size

512MB or above (suggested 1.0GHz)

 Display card

 64M or above

 Supported OS

 Microsoft Windows XP/Vista/Windows7

 Browser

 IE 6.0, IE7.0 IE8.0 firefox2.0 firefox3.0 .Google

 Certification

 CE,FCC,RoHS

  Warranty

 Limited 1-year warranty
