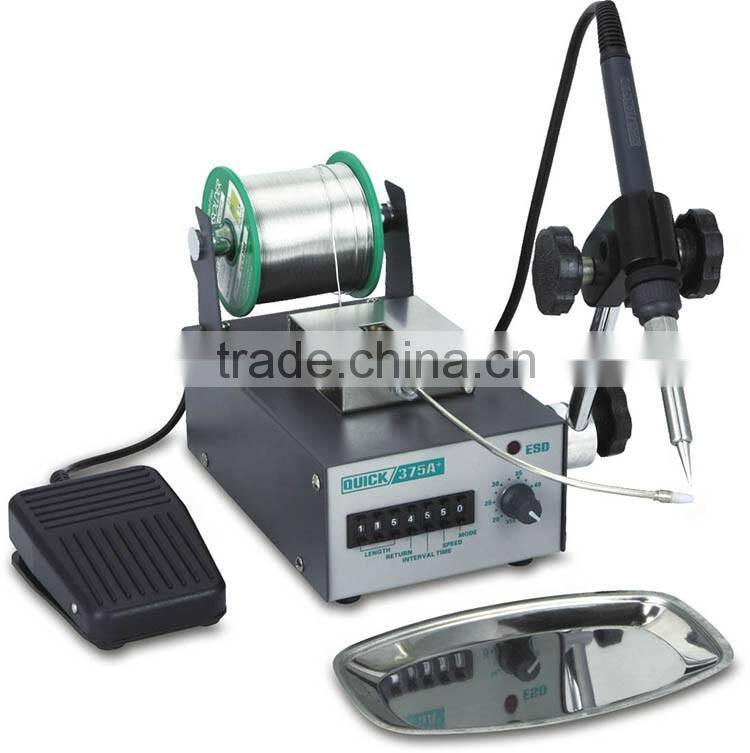

QUICK 375A+ Self-feeder Soldering Station Automatic Welding Equipment
- Shanghai Port
You May Like
-
QUICK 376D/376DI Self-feeder Soldering Station Portable Welding Kit
-
QUICK TS2300 Lead-free Soldering Station Smart Welding Machine
-
QUICK TS2200 Lead-free Soldering Station for Portable Welding
-
QUICK TS1100 Lead-free Soldering Station for Welding Pcb
-
QUICK 3112 Lead Free Soldering Station With Solder Iron
-
QUICK 236 Lead Free Soldering Station With Solder Iron
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | QUICK | Model Number | QUICK 375A+ | |
| Dimensions | standard size | Weight | 2.6kg | |
| Usage | Soldering | Certification | ISO 9001:2008 | |
| After-sales Service Provided | Overseas third-party support available |
Product Description

Festures for QUICK 375A+ Self-feeder Soldering Station:
1.Ceramic heating element,long life time,24V DC heating,safe and reliable.
2.Temperature controlled by RTD sensor,rapid heating,temperature precise and stable.
3.Imported motor,automatic feeding,coding switch design.More functions available and adjustable,such as feeding speed,feeding volume,interval time,backing time etc.
4.Two operation modes:auto and manual.
5.Soldering direction may be changed as needed.
6.Suitable for soldering connectors,adapters and soldering under other special conditions.
Specifications:
| Power consumption | 60W |
| Temperature range | 200-480℃ |
| Temperature stability | ±2℃(stationary air,no load) |
| Tip to ground potential | <2mV |
| Tip to ground resistance | <2Ω |
| Motor | step |
| Feeding speed | about 2.7-27mm/s(36-360°/s) |
| Feeding volume | 0-150mm |
| Feeding interval time | 0-2.7s |
| Backing time | 0-0.9s(about0-25mm,regular speed:360°/s) |
| Feeding mode | auto(1-9)/manual(0) |
| Dia of wire usable | 0.6,0.8,1.0,1.2,1.4(mm) |
| Solder wire usable | about 2.6kg |
Below is our related self-feeder soldering stations with different models.
If there is any model you like,please contact us without hesitation.

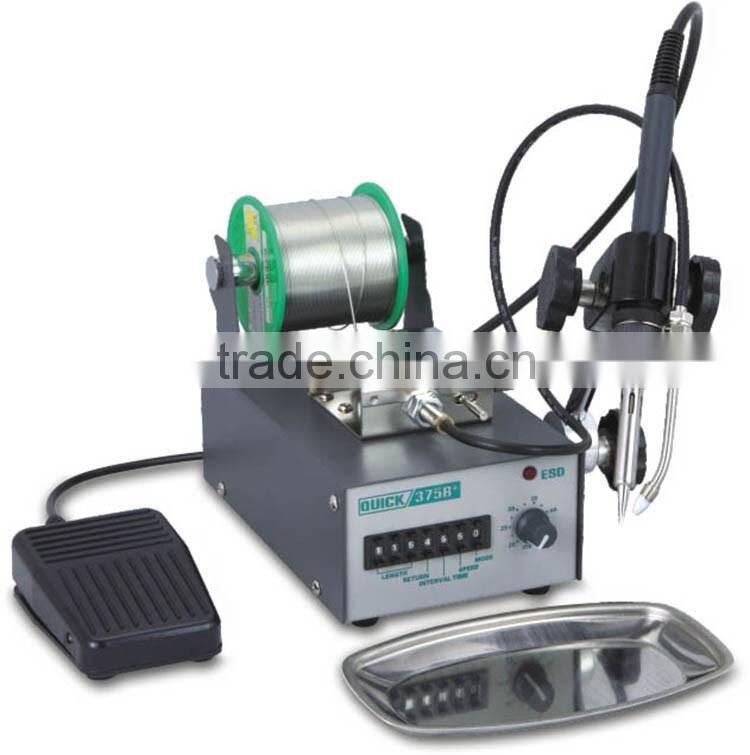

QUICK 375B+ SELF-FEEDER SOLDERING STATION
QUICK 376D SELF-FEEDER SOLDERING STATION
QUICK , as a leading company of soldering station products,has got CE certificates for most of our products,and also approved ISO9001 & ISO14001.

Established in 1994 and located in Changzhou,QUICK Soldering has grown to be the leading manufacturer of soldering station equipments and other productions in China.It is widely recognized as a comprehensive solution provider in eletronics assembly industry.
QUICK Soldering takes pride in its professional teams of R&D,manufacturing and sales.ISO9001 Quality Management and ISO14001 Environment Protection System are both implemented to improve and perfect it in all aspects.
Nowadays,QUICK products consists of various types of soldering equipments,such as solderingstation,rework soldering station,soldering robot,laser soldering robot,quantitative solder melting&dropping soldering robot,infrared&hot air BGA rework system and other related equipments like dispensing robot,screwing robot,fume extractor,static eliminator etc.Automantic assembly lines combined with soldering,dispensing,screwing,AOI and jig-returing etc can also be customized as per different applications.
QUICK Soldering adheres to the principle of providing customers with superior quality products at reasonable prices and excellent services.As it dis in the past,QUICK Soldering will continue to offer customers an sll-round support in future.It's the sincere wish to establish a long term business relationship with customers who are interested in the products.
OUR WORKSHOP & SHOWROOM:


1.We are the largest and most professional manufacturer of soldering station products.
2.Our company has passed ISO9001 & ISO14001.
3.Over 60 R&D engineers, with more than 20 years experience.
4.Have global users in many countries such as Korea,Vietnam,India,Mexico,Brazil,North Africa,European countries etc.
5.High quality & competitive price.
6.Most products have CE certificates.
7.100% NEW from QUICK factory.
8.100% QC inspect before shipment.
9.OEM is acceptable.
All products purchased in QUICK are tested and guaranteed to keep in good quality with one year warranty excluding consumable parts. If quality problems happen in guarantee period,our company provides technical supports and fittings.Our local distributor will help to solve your problems timely after receiving telephone or emails. If you are caught in some problems when using our products, welcome to contact us at any time.
QUICK is a leading company which is specialized in providing soldering station and other electronic soldering equipments.
If there is anything you'd like to know,please contact us without hesitation.
