Mixing Equipment Supplier Industrial Mixers for Chemical Plant

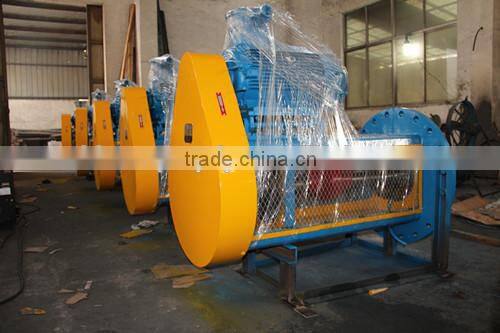

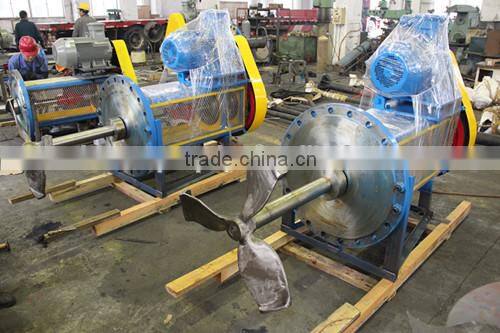

• Heavy duty, large-scale tank mixers for batch processes or agitation of low or high viscosity materials in storage, holding, or reaction tanks.
• Mixer-duty electric motors are available in a variety of sizes, phases, and voltages chosen based on your need. Other options include washdown duty, inverter duty, and explosion proof motors. Air motors are also available.
• Many right angle gearbox options are available that require less space in restricted areas:
  –Helical-bevel gearboxes with double or triple reduction gear arrangements provide quiet operation and extended life. Hundreds of gear ratios are available.
  –Worm drive gearboxes offering single or double reduction worm gear arrangements allow high shock loading and economical design. Choose from 13 gear ratios to match process requirements.
  –Minimum of 1.5 mechanical service factor on all gearing and bearings.
• Virtual drywells and heavy-duty output bearings are typically used on large units for reduced vibration and to allow for longer shaft lengths (available with Helical-Bevel gearboxes). Rigid in-tank couplings used as required.
• Closed Tank configurations are available with vapor seals, stuffing box glands (up to 150 PSI) and single or double mechanical seals (300+ psi). In-tank shutoff mechanism allows seal changes on side entry mixers without emptying the tank.

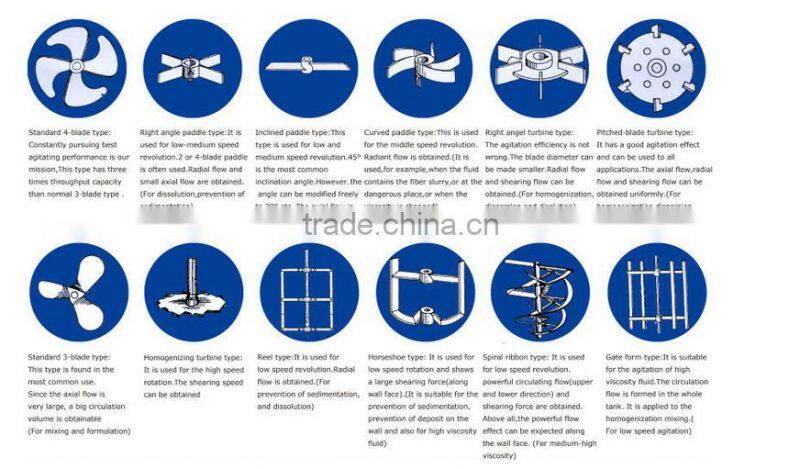

• Various impeller styles and mounting options such as ANSI flange mount, TriClamp mount, beam mount are available for your process.




More blade types are available. Every mixer is customized as your special needs :

By the way, re-design motor model, reducer, shaft length , shaft diameter is avilable for you .

Application filed:

If any more information for Industrial oil mixer , Please don't hesitate to contact us , we sincerely hope to have cooperate with you !
