High Quality Customized Copper Clad Steel Earth Rod,grounding Rod With Copper Plated
- Shanghai or Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Milky Way | |
| Model Number | Copper clad Steel Earth Rod |
Product Description

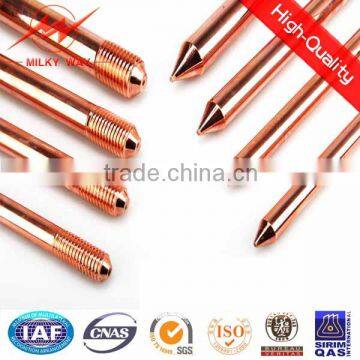

Copper clad Steel Earth Rod
Ground Rod
Quick Description
| Item Number | Copper clad Steel Earth Rod |
| Copper layer thickness | >=0.254mm |
| Tensile strength | >=600Nm/mm2 |
| Straightness error | <=1mm/m |
| Service life | >=50years |
| Function | Used in grounding and lightning system |
| Type | Threaded or flat or pointed |
| Plasticity of copper layer | No crack under U bent |
| Available service mode | OEM;ODM |
| Certificate | ISO9001:2008 |
Product Introduction
Copper bonded ground rod is mainly used in the grounding device. Due to its good conductivity, corrosion resistance, tensile strength, low prices, etc.,
Copper bonded ground rod can be widely used, and have been recognized by the United States Institute of Electrical and Electronics Engineering (IEEE) standard, BS standard and International Electrotechnical Commission (IEC) standards.
In China, have been recognized in China Sinopec, China National Petroleum, the national electricity company, and gradually be widely used.
Product Introduction
| 1.The manufacturing process: | Copper bonded ground rod is cast through an electrolytic process, to 99.9% copper molecules evenly covering the steel core. It is very uniform copper layer and the thickness of 0.254mm or more. Products have conductive properties of copper and the tensile strength of steel. Since the copper layer and the steel material is a binding molecule, the copper layer is not easily peeled off, and will not crack when bent in operation. |
| 2. Good conductivity: | Since the Copper bonded ground rod of the outer copper layer of 99.9% purity electrolytic copper, having a thickness of 0.254mm or more, the conductivity has been tested more than 40%, when the transmission frequency is greater than 1.67MHz, which is fully equivalent to the conductive properties of solid copper. |
| 3. Strong corrosion resistance: | The surface of the ground rod is 99.9% pure electrolytic copper. Combined with its copper and steel are molecules overcome their electrochemical corrosion, buried in the soil and thus has a strong resistance to corrosion, the service life of over 30 years. |
| 4. Tensile strength: | Copper bonded ground rod has conductivity of copper, and steel’s large tensile strength (up to 580N/mm2) characteristics. In construction operations, ground rods can be easily driven into depth of up to 20m or more under the ground. That will reduce a lot of trouble during construction and installation costs. |
Data Sheet
| Earth Rod Size List | ||||||||
| Small Size | ||||||||
| Model | Diameter | Copper Thickness | Length | N.W. | Packing | |||
| inch | mm | Mil | mm | Feet | mm | kgs/pc | pc/bundles | |
| YH-8 | 8 | 10 | 0.254 | 3 | 900 | 0.45 | 20 | |
| YH-8 | 8 | 10 | 0.254 | 4 | 1200 | 0.45 | 20 | |
| YH-8 | 8 | 10 | 0.254 | 5 | 1500 | 0.45 | 20 | |
| YH-9 | 9 | 10 | 0.254 | 3 | 900 | 0.57 | 20 | |
| YH-9 | 9 | 10 | 0.254 | 4 | 1200 | 0.57 | 20 | |
| YH-9 | 9 | 10 | 0.254 | 5 | 1500 | 0.57 | 20 | |
| YH-10 | 10 | 10 | 0.254 | 3 | 900 | 0.7 | 20 | |
| YH-10 | 10 | 10 | 0.254 | 4 | 1200 | 0.7 | 20 | |
| YH-10 | 10 | 10 | 0.254 | 5 | 1500 | 0.7 | 20 | |
| YH-11 | 11 | 10 | 0.254 | 3 | 900 | 0.85 | 20 | |
| YH-11 | 11 | 10 | 0.254 | 4 | 1200 | 0.85 | 20 | |
| YH-11 | 11 | 10 | 0.254 | 5 | 1500 | 0.85 | 20 | |
| YH-12 | 12 | 10 | 0.254 | 3 | 900 | 1.01 | 20 | |
| YH-12 | 12 | 10 | 0.254 | 4 | 1200 | 1.01 | 20 | |
| YH-12 | 12 | 10 | 0.254 | 5 | 1500 | 1.01 | 20 | |
| YH-13 | 13 | 10 | 0.254 | 3 | 900 | 1.18 | 20 | |
| YH-13 | 13 | 10 | 0.254 | 4 | 1200 | 1.18 | 20 | |
| YH-13 | 13 | 10 | 0.254 | 5 | 1500 | 1.18 | 20 | |
| YH-13 | 13 | 10 | 0.254 | 6 | 1800 | 1.18 | 20 | |
| YH-14 | 5/8 | 14..2 | 10 | 0.254 | 4 | 1200 | 1.54 | 20 |
| YH-14 | 5/8 | 14.2 | 10 | 0.254 | 6 | 1800 | 2.3 | 10 |
| YH-14 | 5/8 | 14.2 | 10 | 0.254 | 8 | 2400 | 3.07 | 10 |
| YH-14 | 5/8 | 14.2 | 10 | 0.254 | 10 | 3000 | 3.84 | 10 |
| YH-14 | 5/8 | 14.2 | 10 | 0.254 | 20 | 6000 | 7.68 | 5 |
| YH-16 | 14.2 | 10 | 0.254 | 4 | 1200 | 1.95 | 10 | |
| YH-16 | 16 | 10 | 0.254 | 6 | 1800 | 2.93 | 10 | |
| YH-16 | 16 | 10 | 0.254 | 8 | 2400 | 3.9 | 10 | |
| YH-16 | 16 | 10 | 0.254 | 10 | 3000 | 4.88 | 10 | |
| YH-16 | 16 | 10 | 0.254 | 20 | 6000 | 9.75 | 5 | |
| YH-17 | 3/4 | 17.2 | 10 | 0.254 | 4 | 1200 | 2.25 | 10 |
| YH-17 | 3/4 | 17.2 | 10 | 0.254 | 6 | 1800 | 3.38 | 10 |
| YH-17 | 3/4 | 17.2 | 10 | 0.254 | 8 | 2400 | 4.51 | 10 |
| YH-17 | 3/4 | 17.2 | 10 | 0.254 | 10 | 3000 | 5.64 | 7 |
| YH-17 | 3/4 | 17.2 | 10 | 0.254 | 20 | 6000 | 11.27 | 5 |
| YH-18 | 18 | 10 | 0.254 | 4 | 1200 | 2.47 | 10 | |
| YH-18 | 18 | 10 | 0.254 | 10 | 3000 | 6.17 | 7 | |
| YH-18 | 18 | 10 | 0.254 | 20 | 6000 | 12.34 | 5 | |
| YH-20 | 20 | 10 | 0.254 | 6 | 1800 | 4.57 | 10 | |
| YH-20 | 20 | 10 | 0.254 | 8 | 2400 | 6.1 | 10 | |
| YH-20 | 20 | 10 | 0.254 | 10 | 3000 | 7.62 | 7 | |
| YH-20 | 20 | 10 | 0.254 | 20 | 6000 | 15.24 | 5 | |
| YH-20 | 20 | 10 | 0.254 | 8 | 2400 | 6.1 | 10 | |
| YH-22 | 22 | 10 | 0.254 | 10 | 3000 | 9.22 | 7 | |
| YH-22 | 22 | 10 | 0.254 | 6 | 1800 | 5.53 | 10 | |
| YH-25 | 25 | 10 | 0.254 | 8 | 2400 | 9.53 | 10 | |
| YH-25 | 25 | 10 | 0.254 | 10 | 3000 | 11.91 | 7 | |
| YH-25 | 25 | 10 | 0.254 | 20 | 6000 | 23.81 | 5 | |
| Also supply copper layer thickness0.01mm,0.05mm,0.1mm,0.33mm,0.5mm and 1.0mm | ||||||||
| Also supply any length shorter than 6000mm | ||||||||
Certified name Certificate No. Expired Date Product Scope Certifie Picture
ISO 9001:2008 04320Q29536R0S 2016/04/12 Production and Service of stadium lighting
Steel Tube Pole and stadium lighting
Support, Metal Steel Tube Pole for Lighting,
Steel Prop and Portal Structure for Contact
Line in stadium lighting field.
Accessories
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on
