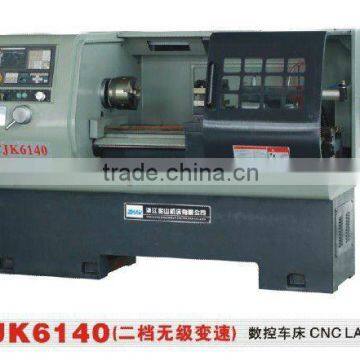

CJK-6140 CNC lathe

Specifications

Zhejiang Zhaoshan Machine Tool Co.,Ltd, which belongs to the China Zhaoshan Group, is located in Zhuji City, Zhejiang Province, China. We are manufacturer of good quality milling machines and lathe machines. Since it founded, we have won ISO9001, ISO14001 and CE, what is more, we were awarded as The High and New Technology Company of Zhejiang.

At the same time, we have developed the formalization, intensified company’s direction. We established Hubei Zhaoshan Machinery Co.,Ltd and Hubei Xiangfan Machine Tool Co.,Ltd, which are located in Hubei Province as our son companies.

CJK6140 specifications:

System: GSK 980TDb system
Max. Swing over bed: 500mm

Max. Swing over cross slide: 260mm

Max. Processing length: 1000mm

Range of spindle speed: 60-1600r/min

Step of spindle speed: 2
Spindle bore: Φ80mm
Inner taper spindle: MT No.7
Main motor power: 7.5kw (10.2HP) Induction motor
X-axis travel: 300mm

Z-axis travel: 1000mm
Rapid feed: 4/6m/min

Minimum input unit: 0.001mm
Feed motor power X/Z: 7.5/10Nm
Positioning accuracy X/Z: 0.02/0.03mm
Repeatability positioning accuracy X/Z: 0.0075/0.01mm
Standard cutter diameter size: 25*25mm

Standard: four-position electric tool post
Tailstock sleeve travel: 150mm

Tailstock sleeve diameter: Φ75mm
Inner taper of tailstock: MT No.5
Packing size (L*W*H): 2870*1560*1950mm
Net weight: 2500kg
Gross weight: 2700kg
