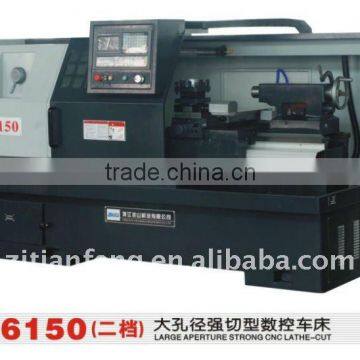

CK6150 lathe machine

Specifications

Zhejiang Zhaoshan Machine Tool Co.,Ltd, which belongs to the China Zhaoshan Group, is located in Zhuji City, Zhejiang Province, China. We are manufacturer of good quality milling machines and lathe machines. Since it founded, we have won ISO9001, ISO14001 and CE, what is more, we were awarded as The High and New Technology Company of Zhejiang. We can produce all types milling machines and lathe machines according to your requirements.

At the same time, we have developed the formalization, intensified company’s direction. We established Hubei Zhaoshan Machinery Co.,Ltd and Hubei Xiangfan Machine Tool Co.,Ltd, which are located in Hubei Province as our son companies.

CK6150 specifications:

Max. Swing over bed: 500mm
Max. Swing over cross slide: 260mm

Max. Processing length: 1000mm

Range of spindle speed: 60-1600r/min
Step of spindle speed: 2

Spindle bore: Φ80mm
Inner taper spindle: MT No.7
Main motor power: 7.5kw (10.2HP) Induction motor
X-axis travel: 300mm

Z-axis travel: 1000mm

Rapid feed: 4/6m/min

Minimum input unit: 0.001mm

Feed motor power X/Z: 7.5/10Nm

Positioning accuracy X/Z: 0.02/0.03mm
Repeatability positioning accuracy X/Z: 0.0075/0.01mm

Standard cutter diameter size: 25*25mm

Standard: four-position electric tool turret
Tailstock sleeve travel: 150mm

Tailstock sleeve diameter: Φ75mm
Inner taper of tailstock: MT No.5
Packing size (L*W*H): 2870*1560*1950mm
Net weight: 2500kg
Gross weight: 2700kg

Power: 3 phase 380V
