Product Details
| Brand Name | Weiye or OEM brand | Model Number | Y-112M-2 | |
| Type | Asynchronous Motor | Frequency | 50hz,60hz and 50/60hz | |
| Output Power | 370W | Protect Feature | Totally Enclosed | |
| Phase | Three-phase | Certification | CCC, CE | |
| AC Voltage | Other, 220/380V,380/660V or on your request | Place of Origin | Zhejiang, China | |
| Efficiency | IE 1 |
Product Description
Specifications
1.14 years manufacturing experience2.Three phase electric motor,Y series
3.0.37-315KW,100% copper wire
4.Competitive price
Product Description

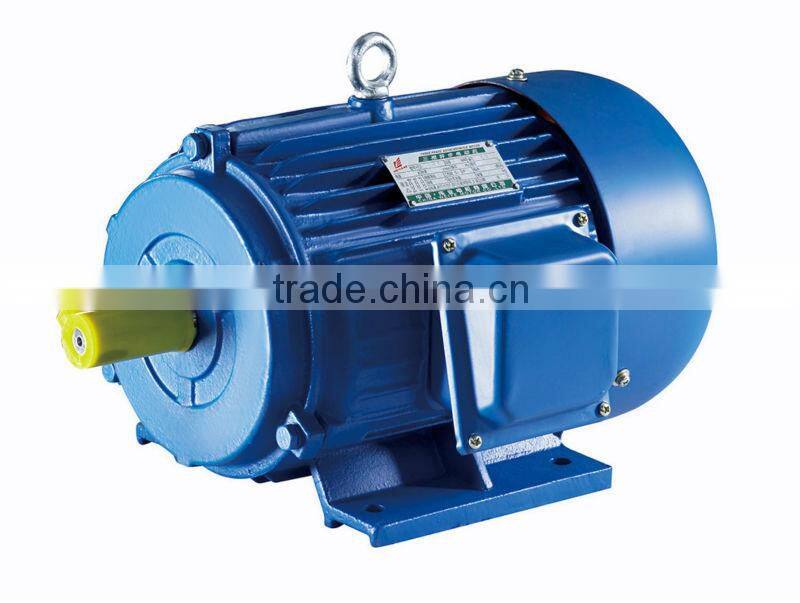

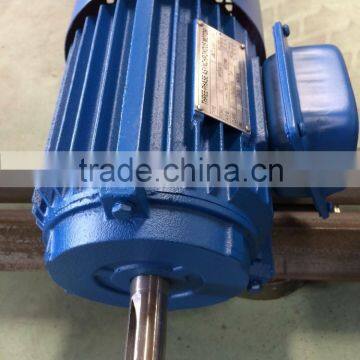

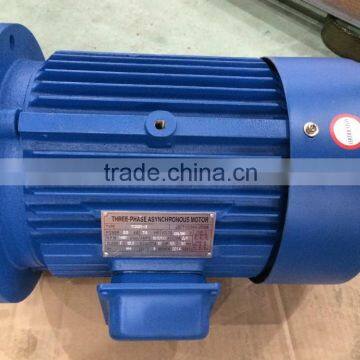

Y Three Phase Electric Motor
Brief Introduction
- Y series motors are totally enclosed fan cooled(TEFC),three phase squirrel cage induction motors,it is national uniform design in conformity with the relevant standards of IEC34-1 and JB/T9616-1999,enjoys international interchangeable features.
- Y series motors have outstanding performance such as high efficiency,energy-saving,high starting torque,low noise,slight vibration,reliable operation and easy maintenance,etc.
- Y series motors are widely used in many places,where there do not exist combustible,explosive or corrosive gas,special requirements,such as machine tools,pumps,blowers,transport machinery,mixer,agriculture machinery and food machines,etc.
1. Customized Production is available.
2. Supply for OEM and After Markets.
3. 100% tested for the quality prior to shipment
4. Certificate and Guarantee: ISO 9001:2008 / one year
5. package: carton&pallet
Detailed Product Description
1.CE certificate
2.Copper wire
3.Cold-rolled silicon steel sheet
Specifications
1) Frame sizes: 63-355
2) Rated power: 0.12kw-200kw
3) Rated voltage: 220/380V,380/660V or on your request
4) Frequency: 50Hz, 60Hz
5) Protection class: IP54
6) Insulation class: F
7) Materials: cast iron, aluminum (FRAME 63-132)
8) EFF: EFF3, EFF2, EFF1
9) Poles: 2, 4, 6, 8
10) Cooling method: IC411 (total-enclosed fan-cooled type)

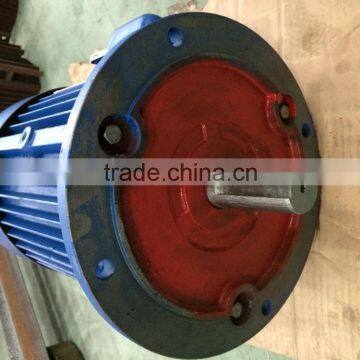

11) Mounting types: B3/B5/B14/B15/B34/B35
12) Operating mode: S1
13) Connection: "Y" type for 3kW and downwards, "D" type for 4kW and upwards
14) Ambient temperature: -15°C < θ < 40°C
15) The altitude should be lower than 1,000m above the sea level
16) Special motors can be designed according to customers' requirements
Technician Data
| Model | Output | Cureent (A) | Speed (r/min) | Eff (%) | Power factor | Tstart/Tn | Lst/In | Tmax/Tn | |
| Kw | Hp | ||||||||
| Y801-2 | 0.75 | 1 | 1.81 | 2830 | 75.0 | 0.84 | 2.2 | 6.5 | 2.3 |
| Y802-2 | 1.1 | 1.5 | 2.52 | 2830 | 77.0 | 0.86 | 2.2 | 7.0 | 2.3 |
| Y90S-2 | 1.5 | 2 | 3.44 | 2840 | 78.0 | 0.85 | 2.2 | 7.0 | 2.3 |
| Y90L-2 | 2.2 | 3 | 4.83 | 2840 | 80.5 | 0.86 | 2.2 | 7.0 | 2.3 |
| Y100L-2 | 3.0 | 4 | 6.39 | 2870 | 82.0 | 0.87 | 2.2 | 7.0 | 2.3 |
| Y112M-2 | 4.0 | 5.5 | 8.17 | 2890 | 85.5 | 0.87 | 2.2 | 7.0 | 2.3 |
| Y132S1-2 | 5.5 | 7.5 | 11.1 | 2900 | 85.5 | 0.88 | 2.0 | 7.0 | 2.3 |
| Y132S2-2 | 7.5 | 10 | 15.0 | 2900 | 86.2 | 0.88 | 2.0 | 7.0 | 2.3 |
| Y160M1-2 | 11 | 15 | 21.8 | 2930 | 87.2 | 0.88 | 2.0 | 7.0 | 2.3 |
| Y160M2-2 | 15 | 20 | 29.4 | 2930 | 88.2 | 0.88 | 2.0 | 7.0 | 2.3 |
| Y160L-2 | 18.5 | 25 | 35.5 | 2930 | 89.0 | 0.89 | 2.0 | 7.0 | 2.2 |
| Y180M-2 | 22 | 30 | 42.2 | 2940 | 89.0 | 0.89 | 2.0 | 7.0 | 2.2 |
| Y200L1-2 | 30 | 40 | 56.9 | 2950 | 90.0 | 0.89 | 2.0 | 7.0 | 2.2 |
| Y200L2-2 | 37 | 50 | 69.8 | 2950 | 90.5 | 0.89 | 2.0 | 7.0 | 2.2 |
| Y225M-2 | 45 | 60 | 83.9 | 2970 | 91.7 | 0.89 | 2.0 | 7.0 | 2.2 |
| Y250M-2 | 55 | 75 | 103 | 2970 | 91.5 | 0.89 | 2.0 | 7.0 | 2.2 |
| Y280S-2 | 75 | 100 | 139 | 2970 | 92.0 | 0.89 | 2.0 | 7.0 | 2.2 |
| Y280M-2 | 90 | 125 | 166 | 2970 | 92.5 | 0.89 | 2.0 | 7.0 | 2.2 |
| Y315S-2 | 110 | 150 | 203 | 2980 | 92.5 | 0.89 | 1.8 | 6.8 | 2.2 |
| Y315M-2 | 132 | 180 | 242 | 2980 | 93.0 | 0.89 | 1.8 | 6.8 | 2.2 |
| Y315L1-2 | 160 | 220 | 292 | 2980 | 93.5 | 0.89 | 1.8 | 6.8 | 2.2 |
| Y315L2-2 | 200 | 270 | 365 | 2980 | 93.5 | 0.89 | 1.8 | 6.8 | 2.2 |
| Y355M-2 | 250 | 340 | 444 | 2980 | 94.5 | 0.90 | 1.6 | 7.0 | 2.2 |
| Y355L-2 | 315 | 430 | 556 | 2980 | 95.0 | 0.90 | 1.6 | 7.1 | 2.2 |
| Y801-4 | 0.55 | 0.75 | 1.51 | 1390 | 73.0 | 0.76 | 2.4 | 6.0 | 2.3 |
| Y802-4 | 0.75 | 1 | 2.01 | 1390 | 74.5 | 0.76 | 2.3 | 6.0 | 2.3 |
| Y90S-4 | 1.1 | 1.5 | 2.75 | 1400 | 78.0 | 0.78 | 2.3 | 6.5 | 2.3 |
| Y90L-4 | 1.5 | 2 | 3.65 | 1400 | 79.0 | 0.79 | 2.3 | 6.5 | 2.3 |
| Y100L1-4 | 2.2 | 3 | 5.03 | 1430 | 81.0 | 0.82 | 2.3 | 7.0 | 2.3 |
| Y100L2-4 | 3.0 | 4 | 6.82 | 1430 | 82.5 | 0.81 | 2.2 | 7.0 | 2.3 |
| Y112M-4 | 4.0 | 5.5 | 8.77 | 1440 | 84.5 | 0.82 | 2.2 | 7.0 | 2.3 |
| Y132S-4 | 5.5 | 7.5 | 11.6 | 1440 | 85.5 | 0.84 | 2.2 | 7.0 | 2.3 |
| Y132M-4 | 7.5 | 10 | 15.4 | 1440 | 87.0 | 0.85 | 2.2 | 7.0 | 2.3 |
| Y160M-4 | 11 | 15 | 22.6 | 1460 | 88.0 | 0.84 | 2.2 | 7.0 | 2.3 |
| Y160L-4 | 15 | 20 | 30.3 | 1460 | 88.5 | 0.85 | 2.2 | 7.0 | 2.2 |
| Y180M-4 | 18.5 | 25 | 35.9 | 1470 | 91.0 | 0.86 | 2.2 | 7.0 | 2.2 |
| Y180L-4 | 22 | 30 | 42.5 | 1470 | 91.5 | 0.86 | 2.0 | 7.0 | 2.2 |
| Y200L-4 | 30 | 40 | 56.8 | 1470 | 92.2 | 0.87 | 2.0 | 7.0 | 2.2 |
| Y225S-4 | 37 | 50 | 70.4 | 1480 | 91.8 | 0.88 | 1.9 | 7.0 | 2.2 |
| Y225M-4 | 45 | 60 | 84.2 | 1480 | 92.3 | 0.88 | 1.9 | 7.0 | 2.2 |
| Y250M-4 | 55 | 75 | 103 | 1480 | 92.6 | 0.88 | 2.0 | 7.0 | 2.2 |
| Y280S-4 | 75 | 100 | 140 | 1480 | 92.7 | 0.88 | 1.9 | 7.0 | 2.2 |
| Y280M-4 | 90 | 125 | 164 | 1480 | 93.5 | 0.89 | 1.9 | 7.0 | 2.2 |
| Y315S-4 | 110 | 150 | 201 | 1480 | 93.5 | 0.89 | 1.8 | 6.8 | 2.2 |
| Y315M-4 | 132 | 180 | 240 | 1490 | 94.0 | 0.89 | 1.8 | 6.8 | 2.2 |
| Y315L1-4 | 160 | 220 | 289 | 1490 | 94.5 | 0.89 | 1.8 | 6.8 | 2.2 |
| Y315L2-4 | 200 | 270 | 361 | 1490 | 94.5 | 0.89 | 1.8 | 6.8 | 2.2 |
| Y355M-4 | 250 | 340 | 459 | 1485 | 94.7 | 0.87 | 1.6 | 6.8 | 2.2 |
| Y355L-4 | 315 | 430 | 576 | 1485 | 95.2 | 0.87 | 1.6 | 6.9 | 2.2 |
| Y801-6 | 0.37 | 0.5 | 1.2 | 900 | 70.5 | 0.68 | 2.0 | 5.5 | 2.2 |
| Y802-6 | 0.55 | 0.75 | 1.45 | 900 | 71.5 | 0.68 | 2.0 | 5.5 | 2.2 |
| Y90S-6 | 0.75 | 1 | 2.25 | 910 | 72.5 | 0.70 | 2.0 | 5.5 | 2.2 |
| Y90L-6 | 1.1 | 1.5 | 3.16 | 910 | 73.5 | 0.72 | 2.0 | 5.5 | 2.2 |
| Y100L-6 | 1.5 | 2 | 3.97 | 940 | 77.5 | 0.74 | 2.0 | 6.0 | 2.2 |
| Y112M-6 | 2.2 | 3 | 5.61 | 940 | 80.5 | 0.74 | 2.0 | 6.0 | 2.2 |
| Y132S-6 | 3.0 | 4 | 7.23 | 960 | 83.0 | 0.76 | 2.0 | 6.5 | 2.2 |
| Y132M1-6 | 4.0 | 5.5 | 9.40 | 960 | 84.0 | 0.77 | 2.0 | 6.5 | 2.2 |
| Y132M2-6 | 5.5 | 7.5 | 12.6 | 960 | 85.3 | 0.78 | 2.0 | 6.5 | 2.2 |
| Y160M-6 | 7.5 | 10 | 17.0 | 970 | 86.0 | 0.78 | 2.0 | 6.5 | 2.2 |
| Y160L-6 | 11 | 15 | 24.6 | 970 | 87.0 | 0.78 | 2.0 | 6.5 | 2.2 |
| Y180L-6 | 15 | 20 | 31.4 | 970 | 89.5 | 0.81 | 1.8 | 6.5 | 2.0 |
| Y200L1-6 | 18.5 | 25 | 37.7 | 970 | 89.8 | 0.83 | 1.8 | 6.5 | 2.0 |
| Y200L2-6 | 22 | 30 | 44.6 | 970 | 90.2 | 0.83 | 1.8 | 6.5 | 2.0 |
| Y225M-6 | 30 | 40 | 59.5 | 980 | 90.2 | 0.85 | 1.7 | 6.5 | 2.0 |
| Y250M-6 | 37 | 50 | 72 | 980 | 90.8 | 0.86 | 1.8 | 6.5 | 2.0 |
| Y280S-6 | 45 | 60 | 85.4 | 980 | 92.0 | 0.87 | 1.8 | 6.5 | 2.0 |
| Y280M-6 | 55 | 75 | 104 | 980 | 92.0 | 0.87 | 1.8 | 6.5 | 2.0 |
| Y315S-6 | 75 | 100 | 141 | 990 | 92.8 | 0.87 | 1.6 | 6.5 | 2.0 |
| Y315M-6 | 90 | 125 | 169 | 990 | 93.2 | 0.87 | 1.6 | 6.5 | 2.0 |
| Y315L1-6 | 110 | 150 | 206 | 990 | 93.5 | 0.87 | 1.6 | 6.5 | 2.0 |
| Y315L2-6 | 132 | 180 | 246 | 990 | 93.8 | 0.87 | 1.6 | 6.5 | 2.0 |
| Y355M1-6 | 160 | 220 | 300 | 990 | 94.1 | 0.86 | 1.9 | 6.7 | 2.0 |
| Y355M2-6 | 200 | 270 | 374 | 990 | 94.3 | 0.86 | 1.9 | 6.7 | 2.0 |
| Y355L-6 | 250 | 340 | 465 | 990 | 94.7 | 0.86 | 1.9 | 6.7 | 2.0 |
| Y132S-8 | 2.2 | 3 | 5.85 | 710 | 80.5 | 0.71 | 2.0 | 5.5 | 2.0 |
| Y132M-8 | 3.0 | 4 | 7.72 | 710 | 82.0 | 0.72 | 2.0 | 5.5 | 2.0 |
| Y160M1-8 | 4.0 | 5.5 | 9.91 | 720 | 84.0 | 0.73 | 2.0 | 6.0 | 2.0 |
| Y160M2-8 | 5.5 | 7.5 | 13.3 | 720 | 85.0 | 0.74 | 2.0 | 6.0 | 2.0 |
| Y160L-8 | 7.5 | 10 | 17.7 | 720 | 86.0 | 0.75 | 2.0 | 5.5 | 2.0 |
| Y180L-8 | 11.1 | 15 | 24.8 | 730 | 87.5 | 0.77 | 1.7 | 6.0 | 2.0 |
| Y200L-8 | 15 | 20 | 34.1 | 730 | 88.0 | 0.76 | 1.8 | 6.0 | 2.0 |
| Y225S-8 | 18.5 | 25 | 41.3 | 730 | 89.5 | 0.76 | 1.7 | 6.0 | 2.0 |
| Y225M-8 | 22 | 30 | 47.6 | 730 | 90.0 | 0.78 | 1.8 | 6.0 | 2.0 |
| Y250M-8 | 30 | 40 | 63.0 | 740 | 90.5 | 0.80 | 1.8 | 6.0 | 2.0 |
| Y280S-8 | 37 | 50 | 78.2 | 740 | 91.0 | 0.79 | 1.8 | 6.0 | 2.0 |
| Y280M-8 | 45 | 60 | 93.2 | 740 | 91.7 | 0.80 | 1.8 | 6.0 | 2.0 |
| Y315S-8 | 55 | 75 | 114 | 740 | 92.0 | 0.80 | 1.6 | 6.5 | 2.0 |
| Y315M-8 | 75 | 100 | 152 | 740 | 92.5 | 0.81 | 1.6 | 6.5 | 2.0 |
| Y315L1-8 | 90 | 125 | 179 | 740 | 93.0 | 0.82 | 1.6 | 6.5 | 2.0 |
| Y315L2-8 | 110 | 150 | 218 | 740 | 93.3 | 0.82 | 1.6 | 6.3 | 2.0 |
| Y355M1-8 | 132 | 180 | 260 | 740 | 93.8 | 0.81 | 1.9 | 6.3 | 2.0 |
| Y355M2-8 | 160 | 220 | 314 | 740 | 94.0 | 0.81 | 1.9 | 6.3 | 2.0 |
| Y355L-8 | 200 | 270 | 392 | 740 | 94.3 | 0.81 | 1.9 | 6.3 | 2.0 |
Company Information

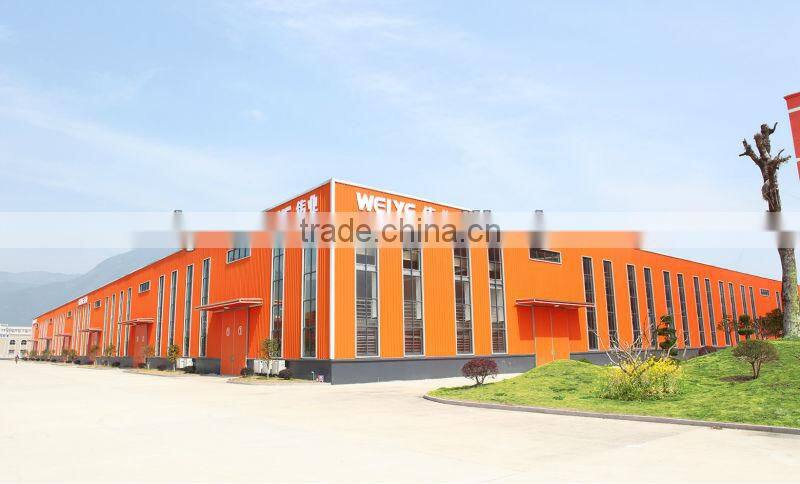

Company Overview
Working Shop
Raw Materials
Testing Machines
Inventory
Packaging & Shipping
Loading Motors
Certifications
Certificates
FAQ
F A Q :
A:What is your MOQ of this item ?
B:20 pcs per item.
A:What is our lead time ?
B:25-30 days.
A:What is your payment?
B:T/T, L/C at sight, D/P at sight, Paypal,
A:Can we type our brand on it ?
B:Yes of course.
A:Where is your loading port ?
B:Ningbo port or Shanghai port.
A:What is your company's available production capacity ?
B:About 1000 PCS per day.
We are willing to cooperate with the friends in all circles to create a new miracle. Welcome you all to come to have a visit !
Contact Us
- Weiye Motor Co., Ltd.
- Contact nameFahong Xie Chat Now
- Phone0086-576-86356555
- AddressYong'an Industrial Area,Xianju,Taizhou, Zhejiang, China, Taizhou, Zhejiang
Product Categories
| Hot sales | New Products | Single Phase Motor | Three Phase AC Motor |
New Products
-
220V 50Hz ac Motor 3hp Single Phase Motor Price
-
JY Series Large Starting Torque ac Induction Motor 220v 50w
-
Discount Single Phase 1kw Electric Motor
-
China Factory Supply 15 hp Single Phase Electric Motor 50hz 220v
-
100% Copper Wire Cast Iron 3hp Single Phase Electric ac Motor
-
Europe Makret Customized Low Price 120v 60hz Single Phase Motor
-
Exhibiton Hot Selling YC Series 1400rpm Small Electric Fan Motor Price
-
Exhibiton Hot Selling YC Series Single Phase Asynchronous Motor 370w
-
Canton Fair Hot Selling 0.5 hp Single Phase Induction Motor
-
Exhibiton Hot Selling YC Series 120v Single Phase 5hp Electric Motor
-
2016 Exhibition New Design 2.5 hp Single Phase Electric Motor,industrial Motor
-
Bottom Price YC 700w Small 1phase Electric Motor
-
20 Year Factory Manufacturing YC 1.1kw 1.5hp Electric Motor for Sale
-
Easy Operation 0.5 hp Single Phase Induction Motor for Sale
-
Professional Direct Sale 220 Volt ac Electric Motor Prices
-
Superior Quality Factory Price Single Phase ac Motor Speed Control 1 hp
-
100% Copper Wire 100% Output Power 220v 1.5kw Single Phase ac Motor
-
Stable Performance YC Series Low Rpm ac Motor Start Capacitor
-
AC Fan Motor Made in China 1 Phase Squirrel Cage Motor for Meat Grinder Machine
-
Professional Electrical Motor Made in China,MC Series Single Phase Micro Motor
-
Direct Factory Supply MC Series 1 Phase Electric Lawn Mower Motor Electric Dynamo Price
-
Direct Factory Supply MC Series 1 Phase Mini Electric Motor Electromagnet Motor
-
China Electrical Equipment Supplier Aluminum Frame Air Conditioner Indoor Fan Motor
-
ML Series Aluminum Frame Endo Motor Universal Fan Motor Price
Popular Searches
- fan motor
- dryer motor
- blower motor
- electric motor
- vibrator motor
- electrical motor
- electric trimmer motor
- garage door motor
- door motor
- motor
- ac motor
- electromotor
- asynchronous motor
- servo motor
- other electrical equipment
- ac drive
- ac motor drive
- variable frequency drive
- squirrel
- electric tubular motor
- water pump motor
- induction hard shaft
- variable speed drif
- variable speed
- ac servo motor
- servomotor
- drive motor
- cnc servo motor
- synchronous motor
- electric servo motor
Recommended Products
- HAAS Servo Amplifier Coordinate Axis Drive 45AMP ASSY Rev B Model 93-32-3551J
- Brush AC Motor Rotor
- AB VPL-B1153E-CJ14AA AB Servo Motor
- ABB HIEE305098R0001 Excitation System Series Control Module
- GE MIFIIPI55E00HI00 Digital Feeder Relay Module
- SCHNEIDER C200/10/1/1/1/00 High-performance Motion Control Module
- SCHNEIDER C400/10/1/1/1/00 C400 Controller
- GE IS220YDOAS1A Safety Discrete Output I/O Module
- GE IS420UCECH1B Core Controller Module
- GE IS200EAUXH1AAA Mark VIe Series Circuit Board Module
- GE PCH1026 CHF 891069 Digital Structural Vibration Monitor
- GE IC687BEM742-EB I/O Expansion Module
Find Similar Products By Category
- Electrical & Electronics > Electric Motor > AC Motor
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now
Weiye Motor Co., Ltd.
AIBot OnlineThis conversation is AI-generated. Contact manufacturer before transaction to confirm info.
-
Fahong Xie
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile
