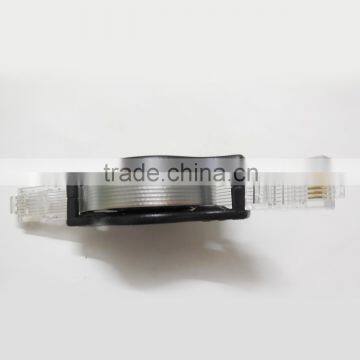

portable rj45 male connector lan cable
- 500000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Brand Name | WEFTAI | Model Number | WT-RJR-0217 | |
| Place of Origin | Guangdong, China | Use | Computer, Other, Computer, lan Internet | |
| USB Type | Other, RJ45 |
Product Description
Specifications
rj45 connector price lan cablerj45 to rj45
male to male
length:1.5m
retractable,portable
portable rj45 male connector lan cable
Retractable cable,retractable rj45 cable for networking/travelling/meeting
1. portable for travel/meeting
2. retractable cable
3. length: 1.5m or customs
Product Features:
1.High quality Retractable cable with rj45 for networking/travelling/meeting
2.Light weight for traveling
3.Connect PC or laptop for network connectivity
4.Retractable design can avoid the trouble of tangle, space-saving.
5.Cable Comes with RJ-45 connectors on each end ,standard RJ45 8P8C plug
6.Support Network Speed: 10 to 100 Mbps automatically
7.Compatible with: BT Broadband, NTL, DSL, Cable Modem
Structure:
1.24AWG/26AWG(7/0.20,7/0.18,7/0.16) stranded bare copper conductor
2.PE insulation
3.4pair
4.fr PVC/LAZH jacket rip cord optional
5.ROHS compliant
6.Frequency:100mhz
7.Transmission:155mbps
Industrial Standards:
1.international ISO/IEC 11801
2.USA ANSI/TIA/EIA-568B.2-2001
3. UL approval
Application:
1.ISDN
2.10BASE-T(IEEE802.3)
3.100BASE-T(IEEE802.3u)
4.ATM155Mbps
5.100VG-AnyLAN(IEEE802.12)
6.Token Ring(IEEE802.5)
7.TP-PMD(ANSI X3T9.5)
Product Performance:
1.linear resistance:max 170 Ω/km
2.mutual capacity(nom):max.5000 pF/100m
3.unbalance apacity max(p/p at 1 khz):1600 Pf/1km
4.Characteristic impedance:100 ± 15 Ω
5.velocity of propagation(f > 1 mhz):66%of c
| ELECTRICAL CHARACTERISTICS: | ||||||
| Frequency(Mhz) | Return loss (dB) | Attenuation (dB/100m) | NEXT (dB) | PS NEXT (dB) | ELFEXT(dB) | PS ELFEXT (dB) |
| 1 | 20 | 3 | 65.3 | 62.3 | 63.8 | 60.8 |
| 4 | 23 | 6.2 | 56.3 | 53.3 | 51.8 | 48.8 |
| 10 | 25 | 9.8 | 50.3 | 47.3 | 43.8 | 40.8 |
| 16 | 25 | 12.3 | 47.2 | 44.2 | 39.7 | 36.7 |
| 20 | 25 | 14 | 45.8 | 42 | 37.8 | 34.8 |
| 25 | 24.2 | 15.7 | 44.3 | 41.3 | 35.8 | 32.8 |
| 31.25 | 23.3 | 17.7 | 42.9 | 39.9 | 33.9 | 30.9 |
| 62.5 | 21.5 | 17 | 38.4 | 35.4 | 27.9 | 24.9 |
| 100 | 20.1 | 22 | 35.3 | 32.3 | 23.8 | 20.8 |
| Product category | Conductor Material | Conductor specification | Standard Test |
| UTP Cat5e Lan Cable | Solid CCS | 4×2×26AWG(0.40mm) | Breakover/Channel test |
| Stranded CCAM | 4×2×28AWG(7×0.12mm) | ||
| 4×2×26AWG(7×0.16mm) | |||
| 4×2×24AWG(7×0.20mm) | |||
| Solid CCA | 4×2×26AWG(0.45mm) | ||
| 4×2×24AWG(0.50mm) | |||
| Stranded CU | 4×2×28AWG(7×0.12mm) | ||
| 4×2×26AWG(7×0.16mm) | |||
| 4×2×24AWG(7×0.20mm) | |||
| Solid CU | 4×2×26AWG(0.40mm/0.45mm) | ||
| 4×2×24AWG(0.50mm) |
