Metal Tile Roof Solar PV Mounting Supports, Solar Mounting Systems, Solar PV Panel Mounting Brackets

 1. Item Name: Metal Tile Roof Solar PV Mounting Supports, Solar Mounting Systems, Solar PV Panel Mounting Brackets

2. Item No. :  RM-0829

3. Introduction

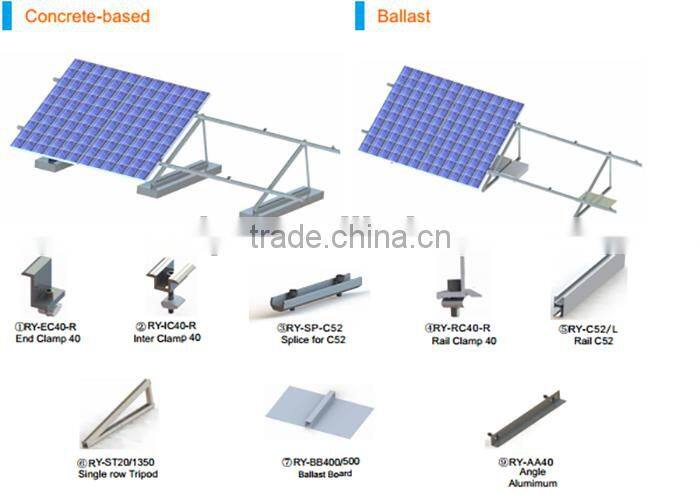

With flat roof photovoltaic project, this flat roof ballast PV mounting system is the most economical and practical solution for the case that the deadlines tight, no enough time to produce concrete and not wanting to destroy the roof due to worry of leaking. All structural parts are made of aluminum and the system has features of good corrosion resistance, great stability, easy to install and environmentally friend and recyclable.

4. Technical Data

5. Main Features

• Large range of applications: The features of 100% aluminum production structure, light weight, high strength, and good corrosion resistance make the product can be applied to very harsh installation environment.

• Compatibility: Suitable for different specifications of PV modules, and the modules can be applied in different ways of arrangement, enabling random swap.

• Safety and reliability: With consideration to the load-bearing, wind, earthquake and other factors, and with rigorous calculation and testing the structure ensures safety and reliability.

• Easy installation: Most of the parts can be pre-assembled, improving the efficiency of on-site installation, and saving time and labor costs for the construction of photovoltaic projects.

• Flexibility and adjustability: Considering of probable construction deviation, the structure is cleverly designed with a flexible regulatory function. The system foundation position errors can be solved by the unique structure of the regulatory function, reducing the difficulty of construction.

7. Test Report

8. Standard Packing

 9. About us

Reysolar are a high-tech company in the solar photovoltaic industry, specializing for solar mounting system R&D, production, sales and service. Reysolar are a6000m² manufactory of the Solar Photovoltaic Mounting System supplier which founded in 2002. Reysolar own 300MW production capacity in providing Solar PV Mounting. We Had Cooperate with a Jordan Company for a 1.6MW and other big company in Euro, Asia, Africa.

10. Fair Show

11. Contact Us

Skype: lar

Tel/Fax: +86-592-5668256-807

Mob / Whatsapp : +86-137-9975-0372

Address: 403# Nanshan Rd, Huli District, Xiamen, China 361006
