Home > Products > Packaging related machinery series > XFC-ZX Bottle Cartoning Machine
XFC-ZX Bottle Cartoning Machine
- shanghai China
You May Like
Product Details
| Condition | New | Application | Beverage, Chemical, Commodity, Food, Medical | |
| Packaging Type | Bags, Cartons, Film, Pouch | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V | Place of Origin | Shanghai, China | |
| Brand Name | XINGFEIPACK | Model Number | XFC-ZX | |
| Dimension(L*W*H) | 2100*2000*2400mm | Weight | 1000kg | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

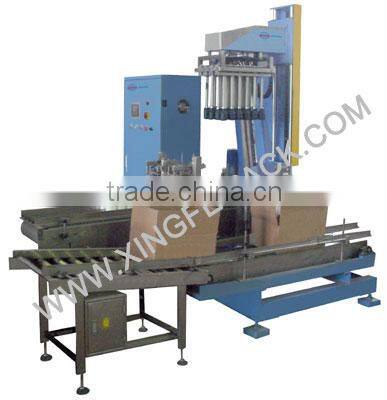

XFC-ZX bottle cartoning machine
I. Brief instruction: The automatic carton packaging machine clamp the bottle by bottle holder (with rubber to avoid damaging the bottle), and then put the bottles into open carton. When the bottle holder lifts, the carton with bottles will be sent to carton sealing machine. The machine is controlled by PLC and Touch Screen. The machine will alarm and stop when it is lack of bottles, This packing line is very easy to operate, manage, and reduce the labors and work intensity, it is necessary for automatic production line.
II. Character:
1. The machine will arrange the products according to the carton filling requirement.
2. It has novelty design and compact construction.
3. It has wide application; it is suit for different products, such as plastic flat bottles, round bottles, irregular bottles, and different kinds of glass bottle, columned and oval-shaped bottle, square cans and paper cans.
4. It is easy to move and used in the carton packing production line
5. It is controlled by the computer and easy to operation and its performance is stable.
III Technical Parameter:
Carton | L200-500 W150-400 H100-450mm | |
Height of the table | 750±50mm | |
Carton speed | 8-12 carton/min | 16-24 carton/min |
Dimension | 2100×2000×2400mm | |
Power supply | 220/380 50/60Hz | |
Air source | 5-6kg/cm3 | 6-8 kg/cm3 |
Weight | 1000kg | 1200Kg |
