Motor Protective Automatic Circuit Breakers

FOB Price

Negotiable / Piece

5000 Pieces(Min. Order)

Port Shanghai or Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Maxwel
Model Number	CDSB1-4P	Type	Mini
Poles Number	1

Product Description

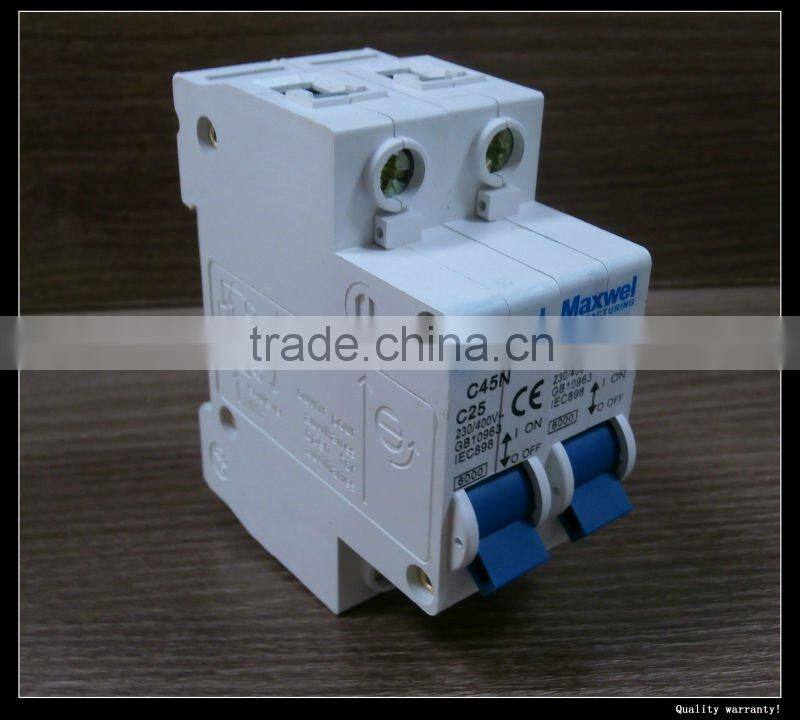

C45N Mini circuit breaker,automatic circuit breaker

Application

CDSB1 series circuit breaker is used in lighting distribution ststem or motor distribution system for protecting overload and short-circuit in the system. The product is novel in structure, light in weight, reliable and excellent in performance. It has hight breaking capacity, can trip quickly and its installation uses with guide. Its case and items are adopted with high fire-resistant and shockproof plastics. The product , with long life, is mainly used in AC 50Hz/60Hz single pole 240V or tow,three, four poles 415V circuit for overload and short-circuit protection as well as for in frequent on-and-off switching electric equipment and lighting circuit in normal case. This product comply with GB10963, IEC898, BS3871.

Specification

Rated temperature: 40°c

Rated voltage: 240V/415V AC

Rated current(C): 1, 2, 4, 6, 10, 15, 16, 20, 25, 32, 40, 50, 60, 63A

Rated current(D): 1, 2, 4, 6, 10, 15, 16, 20, 25, 32, 40A

Electric endurance not lower than 6000 times

Mechanical endurance lower than 20000 times

Tropical tecs: 2 kinds

Weight(g)	1P	2P	3P	4P
Weight(g)	102	208	308	408

CDSB1-AD
Standard	Rated current (A)	Pole	Voltage (V)	Breaking capacity (A)
BS3871-1 IEC898	1-40	1	240	4000
BS3871-1 IEC898	1-40	2, 3, 4	415	4000
IEC157-1	1-40	1	220/240	6000
		2, 3, 4	220/240	12000
		2, 3, 4	380/415	6000
