Polystyrene Foam Extruder CE Approved
- QINGDAO
- T/T
You May Like
-
PS Foam Sheet Extrusion Machine TY-1040
-
Psp Foam Sheet Extrusion Line(TY-PSP 90/120)
-
CE APPROVED EPS Foamed Sheet KT Plate Production Line (PSP-100/130)
-
CE APPROVED EPS Foam Sheet Extruding Machine (PSP-100/130)
-
Excellent Quality CE APPROVED PS Foam Sheet Extrusion Line(TYPSP-90/120)
-
EPS Foam Sheet Machine (TYPSP-90/120)
Product Details
| Condition | New | Product Type | Fast Food Box | |
| Place of Origin | Shandong, China | Brand Name | UNITY | |
| Model Number | TY-1040 | Certification | CE |
standard export packing
Product Description
Specifications
Polystyrene foam extruder1.Fully automatic line
2.CE certificate
3.Exported to many countries

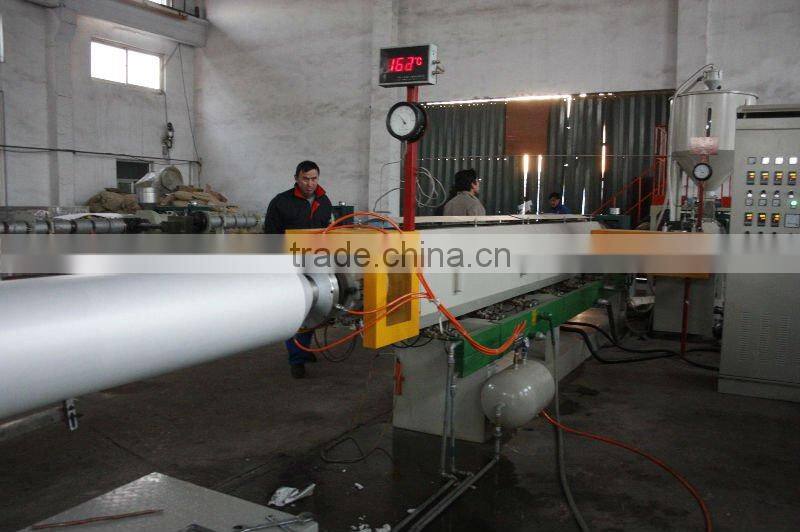

Polystyrene foam extruder CE approved
Machine Instruction
Best Ps foam tray mainly including three main parts:
1. PS foam sheet extruder: make PS foam sheet from raw material
2. Fully auto forming and cutting machine: make PS sheet to finished products, such as PS foam tray, PS foam box etc (we can design mould according to customer requirements)
3. Plastic recycle machine: recycle waste products to granules, the can mix with new material and put into PS foam sheet extruder again
Model | Unit | PSP70/90 | PSP90/120 | PSP100/130 | PSP120/150 |
Extruder |
| 70/90 | 90/120 | 100/130 | 120/150 |
Foam rate |
| 10-20 | 10-20 | 10-20 | 10-20 |
Width of product | mm | 640-1040 | 640-1040 | 640-1040 | 640-1200 |
Cutting method |
| Single cutter | Double cutter | ||
Thickness of product | mm | 1.0-3.0 | 1.0-3.5 | 1.0-3.5 | 2.0-5.0 |
Cooling method |
| Cooled by wind and water | |||
Output | kg/h | 50-90 | 100-180 | 180-230 | 230-320 |
Installed power | kw | 120 | 150 | 180 | 260 |
Dimensions(L×W×H) | m | 26×4.0×2.8 | 30×4.1×2.8 | 36×4.2×3 | 38×4.2×3.2 |
Total weight | T | 10 | 12 | 15 | 18 |
Main technical parameters
Model | Unit | TY-1040 |
Max. forming area | mm2 | 1000×1100 |
Max. forming depth | mm | 80 |
Production efficiency | s/die | 3 - 8 |
Forming pressure | T | 15 |
Mounted power | kw | 168 |
Total weight | T | 16 |
Installation size | m | 13×2×3.2 |
Model | Unit | TY-180+120/100 |
Screw diameter | mm | 180+120/100 |
Motor | kw | 30 |
Heater | kw | 25 |
Extruder capacity | kg/h | 80-130 |
Cooling water tank | mm | 1810×410×225 |
Granule cutting motor | kw | 2.2 |
Company Profile
Shandong Longkou GBL Machinery Co., Ltd. cooperate with italian engineer and adopts italian technic. We own large-scale modernized workshop and advanced CNC processing center and we have accumulated rich experience in equipment manufacturing and products processing, at the same time we get more than 30 patents. Our company has rich specialized technical force and manufacture ability, professional technicians is over 40% of total employees. Shandong Longkou GBL Machinery Co., Ltd. has got the CE certificate. Our products are exported to the countries and regions all over the world, such as Canada, Russia, Italy, Britain, France, Germany, Mexico, Chile, Salvador, Venezuela, South Africa, Nigeria, Tunisia, Vietnam and etc. And we have received favorable comments from international customers. Shandong Longkou GBL Machinery Co., Ltd. will insist the principle of "High quality and Customer is God" and technology innovation to be a world famous brand. Shandong Longkou GBL Machinery Co., Ltd. wishes to build a good future with all friends both at home and abroad together!
