1360 High Alumina Ceramic Fiber Paper

Item

Heat insulation Ceramic fiber paper

Material

Coal gangue

Working Temp.

1000Common Ceramic Fiber Paper--950C

1260Standard Ceramic Fiber Paper--1000C

1260High-purity Ceramic Fiber Paper --1100C

1360High Aluminum Ceramic Fiber Paper--1200C

1430Zirconia Ceramic Fiber Paper--1350C

Specifications

Density:165-220kg/m

Thickness:0.5mm,1mm,2mm,3mm,5mm,6mm,10mm

Width:500mm,600mm,610mm,1200mm,1220mm

Standard size:

120000x610x0.5mm; 60000x610x1mm; 30000x610x2mm;20000x610x3mm;

12000x610x5mm;

10000x610x6mm

Characteristics

Low thermal capacity

Low thermal conductivity

Excellent electrical insulation properties

Excellent machining performance

High strength, tear resistance

High flexibility

Low shot content

Applications

Insulation material for instruments and heating element

Insulation material for automobile and aerospace industry

Expansion joints filling material

Isolation for construction material, metallurgy and glass industries,

Molten metal sealing gasket

Fireproof material

Substitute for glass fiber and asbestos fiber

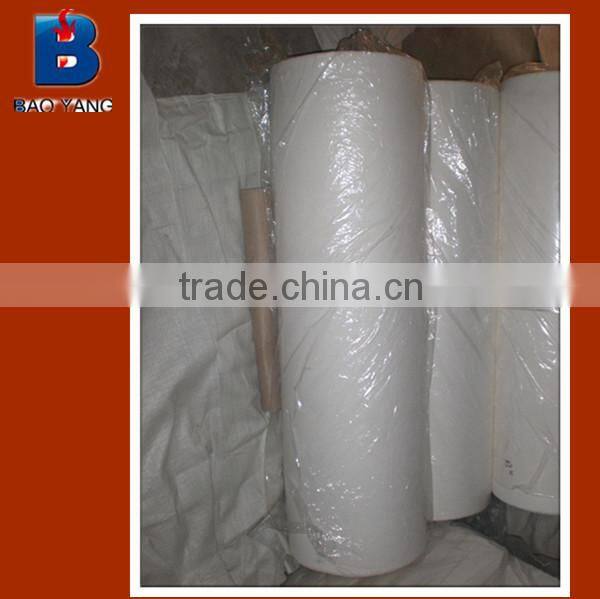

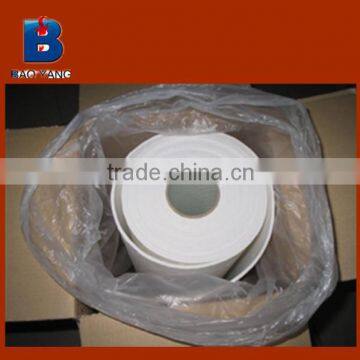

Package

Inner plastic bag,outer carton box;

Product Name

1260 Standard

1360 High-Alumina

1430

Zirconia

Temperature(°C)

1260

1360

1430

Max Operation Temp(°C)/(F)

1050(1922)

1200(2192)

1350(2462)

Density(kg/m3)

200±10

Tensile Strength(Mpa)

≥0.4

≥0.4

≥0.7

Chemical

Composition%

Al2O3

46

52-55

39-40

Al2O3+SiO2

97

99

-

ZrO2

-

-

15-17

Fe2O3

1.0

0.2

0.2

Na2O+K2O

0.5

0.2
