High Quality Phase Line Neutral Line Earth Leakage Earth Leakage Circuit Breaker CMGB3L-32 6A 10A 16A 20A 25A 32A

CMGB3L-32 "phase line +neutral line +earth leakage" protective circuit breaker is used in the single phase residence circuit of AC 50Hz/60Hz, rated voltage 230V for earth leakage protection. It can protect the civil electric circuit from overload and short circuit. The breaker has advantages of small volume, high breaking capacity, zero and live wire cut off at the same time, also protecting person from electric shock when the live wire cut off at the same time, also protecting person from electricshock when the live wire connected opposite.

Phase line+neutral line+earth leakage

Rated current:6, 10, 16, 20, 25, 32A
Rated voltage:230V, 50Hz
Breaking capacity:4500A(GB16917.1);
Grounding earth leakage action current: 30mA, AC class;

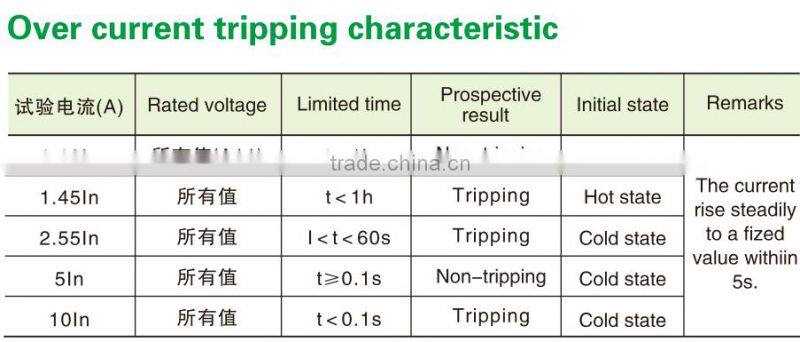

Tripping characteristics: Type C 5to 10In inst and taneous tripping;
Wiring:10mm2 and below conductor;

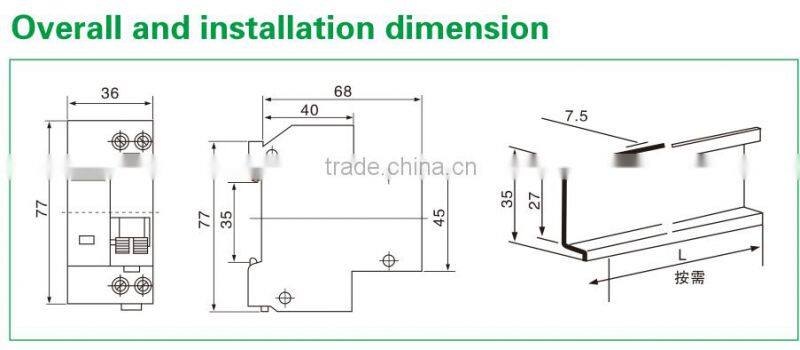

Width:36mm(4times modulus);
Tripping indication is on the positive o the device;
This product conforms to IEC61009/GB16917.1 and so on standards
