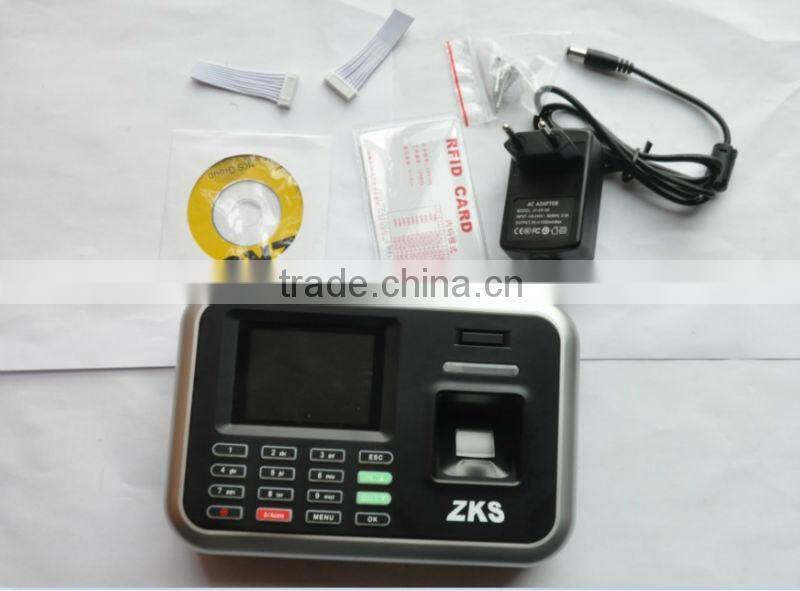

New ! Fingerprint Access Control and Time Attendance T2 With European EURO Power Plug Type AC Adapter

Specifications

New Fingerprint Access Control and Time Attendance T2  with  European EURO Power Plug AC Adapter

Brief Introduction

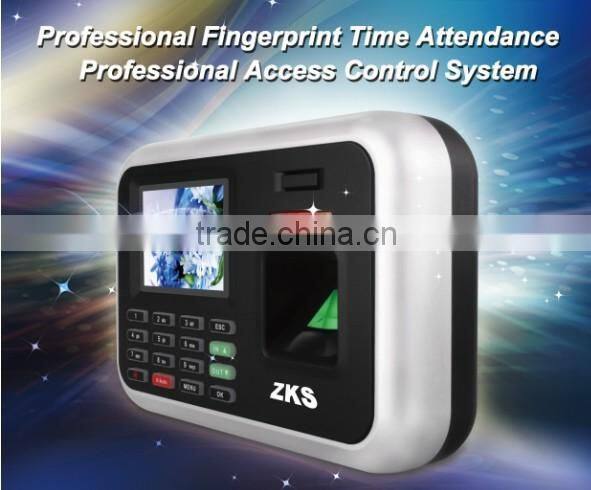

ZKS-T2 is our latest fingerprint access control and time attendance system. It satisfies users not only by elegant design, easy operation but also by its professional and complete access control and time attendance functions.

Features

Separated Access Control and Separated Time Attendance

For general Time Attendance and Access Control systems, both functions are combined as a whole and cannot be separated. It means after verifying, you can access in or out; at the same time, the verification is recorded as time attendance.

As a unique access control and time attendance system, ZKS-T2 has separated AC function and separated TA function as well as integrated AC&TA function. It satisfies various requirements of different users. For example, during office hour, users need to access in and out many times, if all verifications record as time attendance, the records will be messy and hard to manage. In this situation, you can choose separated access control function only.

Professional Access Control Function

ZKS-T2 has professional and complete access control functions as following:

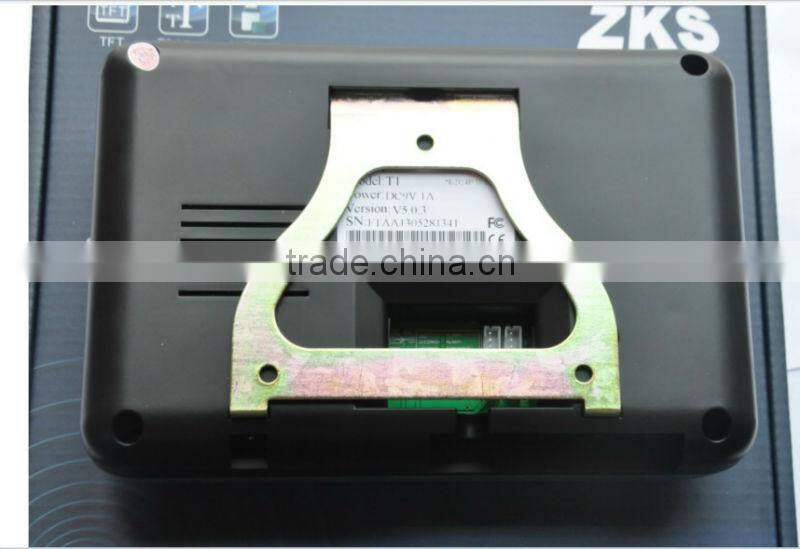

²Back Wiring Design: All interfaces are located on rear panel to avoid dismantle of power or other connections.

²Dismantle Proof Alarm: Machine will send signal to external alarm for alert if sabotage and dismantle of machine happen.

²Duress Alarm: Sending alarm secretly to remote alarm system for help if user is forced to open door.

²Door State Check: When the door has been unlocked and the lock delay has passed, if the door is still open, the terminal will give warning.

²Fire Alarm Input and Output: Connected with external fire alarm system, it can send alarm and open door automatically if fire occurs.

²50 time zones, 30 groups and maximum 5 users unlock combination.

Professional Time Attendance

²You can set valid time attendance periods according to your work pattern. Detailed reports include daily report, monthly report and abnormal report, presenting attendance time and status (normal, late, early-leave or absent), etc.

²It’s able to set valid period of signing in, which can apply to situations such as to avoid casual change of shifts.

²Setting holidays is available to define time attendance pattern.

Setting Data Exchange

User information data can be exchanged among different terminals by USB. You can transmit user’s access control setting and time attendance setting besides basic information (ID No, fingerprint, password, card and name).

Voice Personalization

It’s able to edit voice and bell files of terminal into different languages or individualized voices.

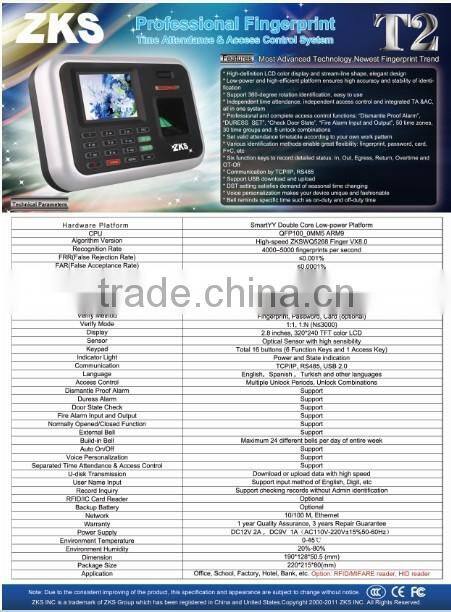

Technical Parameters

Hardware Platform: Smart YY Double Core Low power Platform

CPU: QFP100_0MM5 ARM9

Algorithm Version: High-speed ZKSWQ5268 Finger VX8.0

Recognition Rate: 4000-5000 fingerprints per second

Identification Rate: <0.7 second

FRR(False Rejection Rate): ≤1%

FAR(False Acceptance Rate): ≤0.0001%

ERR (Error): <0.0001%

Fingerprint Capacity: ,000

Record Capacity: 80,000

Admin Record Capacity: 1,000

Verify Method: Fingerprint, Password, Card (optional)

Verify Mode: 1:1, 1:N (N≤3000)

Display: 2.8 inches, 320*240 TFT color LCD

Sensor: Optical Sensor with high sensibility

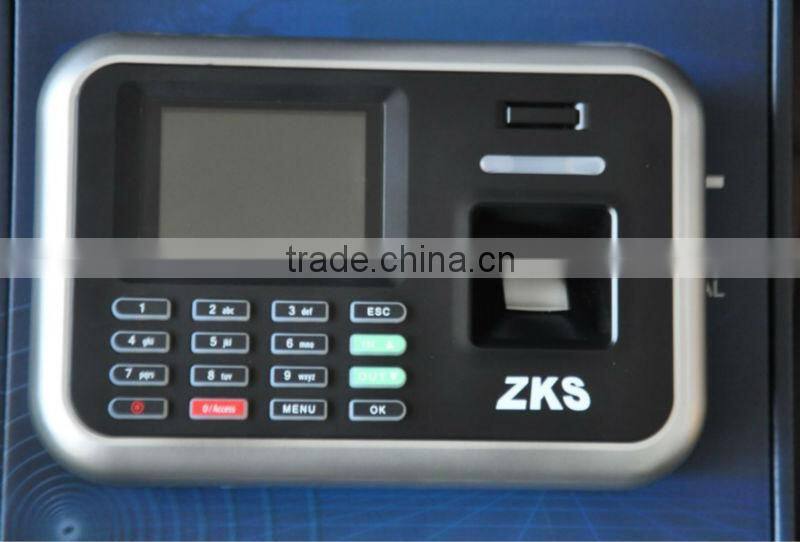

Keypad: Total 16 buttons (6 Function Keys and 1 Access Key)

Indicator Light: Power and State indication

Communication: TCP/IP, RS485, USB 2.0

Network: 10/100 M, Ethernet

USB Transmission: Download or upload data with high speed

Language: Simplified Chinese, Traditional Chinese, English and other frequently-used international languages

Access Control: Multiple Unlock Periods, Unlock Combinations, Dismantle Proof Alarm, Duress Alarm, Door StateCheck & Fire Alarm Input and Output.

Separated Time Attendance & Separated Access Control: Support

Build-in Bell: Maximum 24 different bells per day of entire week

External Bell: Support

Auto On/Off: Support

DST Setting: Support

Voice Personalization : Support

User Name Input: Support input method of Chinese, English, Digit, etc

Record Inquiry: Support checking records without Admin Identification

Optional: RFID/IC Card Reader, Backup Battery

Power Supply: DC9V, 1A(AC110V-220V±15%50-60Hz)

Environment Temperature: 0-45 degree

Environment Humidity: 20%-80%

Application: Office, School, Factory, Hotel, Bank, etc

Dimension: 190*128*50.5 (mm)

Package Size: 220*158*95.5 (mm)

Warranty: 1 year Quality Assurance, 3 years Repair Guarantee
