Home > Products > Dip Power 5mm LED > 590nm - 595nm Color Diffused Yellow Green Oval Led 5mm Diode

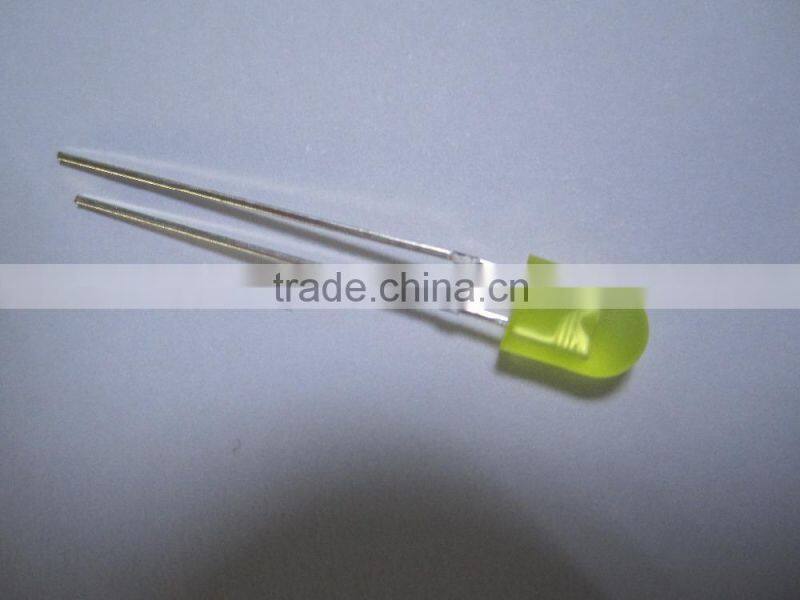

590nm - 595nm Color Diffused Yellow Green Oval Led 5mm Diode
US$ 0.02 - 0.03
/ Piece
1000 Pieces(Min. Order)
- SHANGHAI
- Credit Card PayPal
You May Like
-
5mm Flat Top Dip Power Led Diode 8 - 9lm
-
5mm Christmas Light Concave LED Diode 6000K - 7000K
-
5mm Yellow Green Oval Led 110/60 Degree Viewing Angle
-
Transparent Lens Green Oval Led Diode 5mm Chip With / Without Stopper
-
Diffused 5mm Oval LED Lamp With Stopper
-
Diffused Green 5mm Oval Led Diode 110 / 60 Degree Viewing Angle
Product Details
| Model Number | TDS-506X Series | Chip Material | InGaN | |
| Emitting Color | Yellow | Luminous Intensity | 2000-3000MCD | |
| Luminous Flux(lm) | 4-5lm | Optical Attenuation(%) | 0.0005 | |
| Power | Other, 0.06W, 0.06W | Power Dissipation | 0.001 | |
| Color Rendering Index(Ra) | 75 | Color Temperature | 585-595NM | |
| Operating Temperature(℃) | -20, 80 | Storage Temperature(℃) | -30, 70 | |
| Place of Origin | Jiangsu, China | Brand Name | TDS | |
| Certification | CE |
Product Description
TDS Recommend you to How to Select / Order The LED ?
1. With stopper / Without Stopper
2.Lens Color: water clear / diffused
3.Viewing angle: 70/40 90/50 110/50

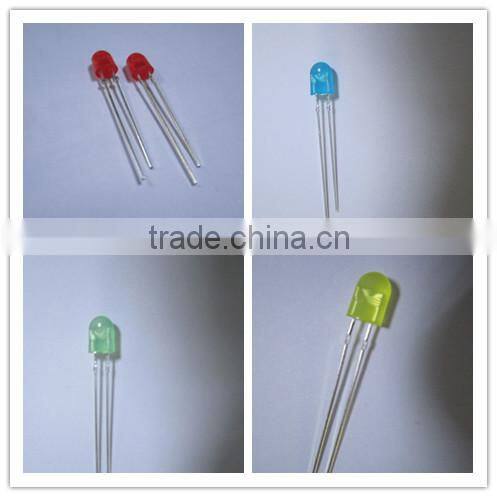

3.Color: Red / Green / Blue / Yellow Green / White / Pink

| Part Number | Chip Material | Emitted Color | λD(nm) CCT Typ. | Lens Color | IV(mcd)@IF=20mA | VF(V)@IF=20mA | Viewing Angle 2θ½ | |||
| Min. | Max. | Min. | Max. | |||||||
| TDS-5067AR3CN | AlGaInP | Red | 625 | Colored Diffuse | 1000-1600 | 1.9 | 2.3 | 70/40 | ||
| TDS-5067EG5CN | InGaN | Green | 520 | Colored Diffuse | 3000-4000 | 3.0 | 3.4 | 70/40 | ||
| DOUBLE COLOR | ||||||||||
| TDS-5069AR3CN | AlGaInP | Red | 625 | Colored Diffuse | 500-600 | 1.9 | 2.3 | 95/50 | ||
| TDS-5069EG5CN | InGaN | Green | 520 | Colored Diffuse | 1700-2500 | 3.0 | 3.4 | 95/50 | ||
| TDS-5069EB4CN | InGaN | Blue | 465 | Colored Diffuse | 400-500 | 3.0 | 3.4 | 95/50 | ||
| FULL COLOR SCREEN | ||||||||||
| TDS-506ACR3CN | AlGaInP | Red | 625 | Colored Diffuse | 800-1000 | 1.9 | 2.3 | 110/50 | ||
| TDS-506AEG5CN | InGaN | Green | 520 | Colored Diffuse | 1700-2500 | 3.0 | 3.4 | 110/50 | ||
| TDS-506AEB4CN | InGaN | Blue | 465 | Colored Diffuse | 400-500 | 3.0 | 3.4 | 110/50 | ||
| TDS-506AW5CN | InGaN | White | 6500K | Colored Diffuse | 3500-4000mcd | 3.0 | 3.4 | 110/50 | ||

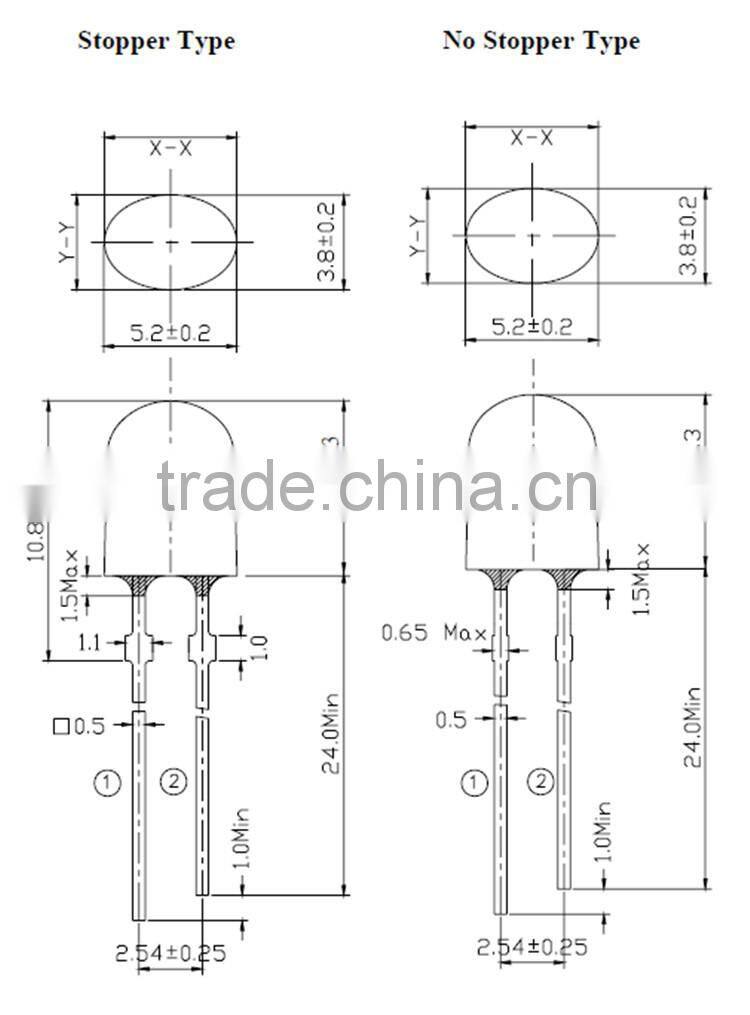

LED Dimension

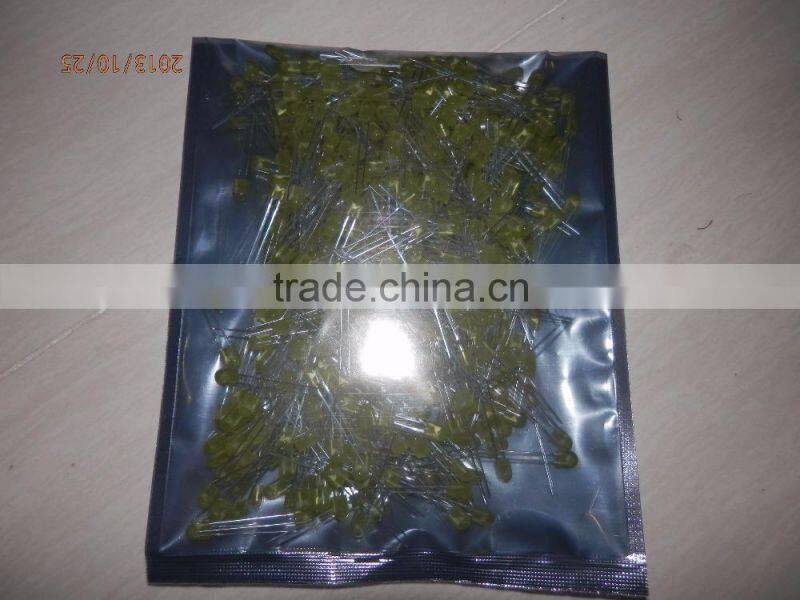

Packaging & Shipping

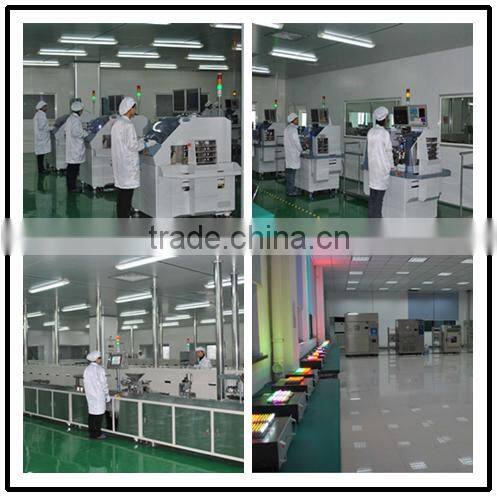

Company View
