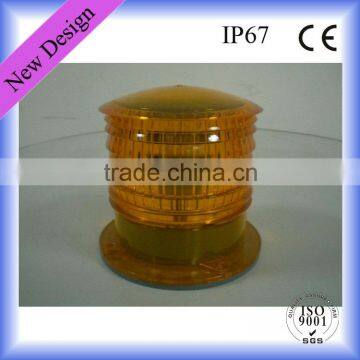

Tower Aviation Double Obstruction Light

Tower Aviation Double Obstruction Light

Features & Benefits

Available in blue, red, amber , white and green.

Can be ordered in steady-on or flash patterns.

Automatically turns on at dusk and off at dawn

Completely self-contained and watertight. Designed to operate reliably in harshest of environmental and work conditions.

Polycarbonate lens is virtually indestructible

Will charge under nearly all weather conditions and up to 140 hours of operating capacity from a full charge.

Manufactured to ISO9001:2000 Quality Assurance standards .

Proprietary, patented dome protects solar panel while improving efficiency, sheds snow.

LSL 305:  51LEDs, Flashing or steady on

SIZE

SPECIFICATIONS

Light Output                         FLASHING              STEADY ON

Effective Intensity

Green                        31.2~36.0 candela          19.5~22.5 candela

  Blue                        16.2~21.6 candela            9.0~12.0 candela

 Amber and white                   36.0~48.0 candela          22.5~30.0 candela

      Red                         24.0~36.0 candela           15.0~22.5 candela

Nominal Night Range                    3.6km ~6km               3.6km

Vertical Divergence                                      ±3.5° at 50% intensity

Horizontal Output                                        360°

Operation

Minimum Autonomy                      140Hours                70Hours

Latitude Range                                            55°S  to  55°N

On/Off Level                                                   60/100 Lux

No. LED                                  51 PCS

Lifespan of LEDS                                          up to 100,000 Hours

Solar panels

Type                                                 poly-crystalline

Potted with UV-protected

Polyurethane and doomed for higher efficiency

Maximum Power                                                 5 watts

Efficiency                                                       14%

Battery

Type                                     Lead-acid  maintenance free

Capacity                                                       12v/3.2Ah

Construction

Base material                                               stainless steel

Lens Material                                            Polycarbonate

Sealing                                    Self-contained unit, potted with polyurethane

Weight

Environmental and Electrical

Temperature Range                                        -40°C to +60°C

Waterproof                                                as per IP65

Quality control and Patents

Quality Assurance                                       ISO9001:2000

*ALL THE SPECIFICATIONS ARE ROUGH AND SUBJECT TO CHANGE WITHOUT NOTICE

Pictures for your reference(Red flashing)

LSLDWS301 used at the airport of Salt Lake City of America.
