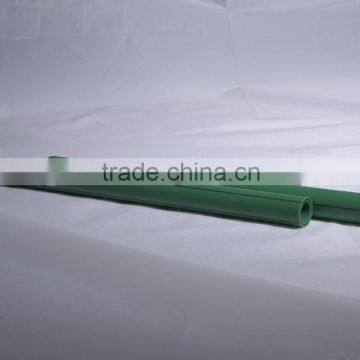

PPR Fiberglass Reinforced Composite Pipes FR-PPR Pipes

Specifications

FR-PPR pipe for water supply

Product Description:

Material: ppr and glass fiber

Sizes: 20mm to 63mm

Pressure Rating: 1.25MPa, 1.6MPa, 2.0MPa and 2.5MPa

Colors: white, green, grey

Certification: ISO9001:2008, ISO14001:2004

Advantages:

High pressure resistance, High rigidity that not easy to change its shape.

Low linear expansion coefficient, only 1/3 of the plain PP-R pipes.

Excellent thermal stability and frostbite prevent bring it a working temperature up to 95°C.

Low longitudinal shrinkage factor

Long lifespan up to 50 years

PPR-FB-PPR Pipe combines advantages both PP-R pipe and FRPP pipe. It is composite pipe of three layers: PPR/glass fiber/PPR. Inside and outside layers of which are made of excellent PP-R material; middle layer is the new material mixed glass fiber and pp-r material.

Application: Hot water and cold water transportation system. The pipe and pipe fittings adopts heat melting connection, which will never leak, can be applied in the pipe transportation system of medical water supply, North section's water heating and air heating, high class uptown, high building, stove room, bath center, high pressure water supply.
