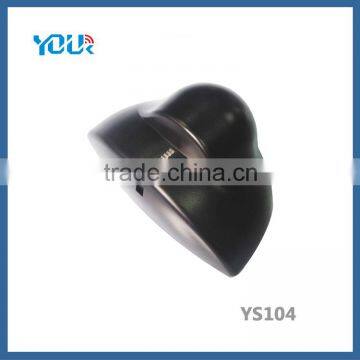

24 GHz Microwave Motion Sensor for Automatic Door Opening (YS104) Quality Choice

FOB Price

US$ 1 - 15 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Germany Innosent detecting chip, 24.125GHZ.

2.The detecting chip can be adjusted easily by special part.

3.Electric filter provide a good capacity of resisting disturbance from raining, wind, lighting and so on.

4.Safe, beautiful, economic, comfortable.

Specifications

24 GHz Microwave Motion Sensor for automatic door opening (YS104)
Approval	CE & ISO9001
Lunch frequency	24.125ghz
Launch power	<20 dBm EIRP
Launch frequency density	< 5mW/ cm ²
Assemble a dip angle	15°, 30°, 45°, 60°
The maximum checks range (while assembling 2.2 meters of altitude)	42m(WH)
Checking pattern	Move
The minimum checks speed	5cm/s (Along the longitudinal axis of air wire to tests)
Power source voltage	12V-24V AC(+/-10%), 12V-30V DC
Power source frequency	50-60HZ
Power dissipation	<2W(VA)
The relay outputs(there be no initial electric potential)
Maximal contact voltage	42V AC-60V DC
Maximal contact electric current	1A(Electric resistance)
The maximum change power	30W(DC) / 60VA(AC)
Output retention time	0.5 second
Temperature range	-20℃~55℃
Protection rate	IP 52
Outer covering material	ABS Plastic
Outer covering color	Black, Silver gray
Weight	100g
Conducting wire length	2.5m
External form dimension	12179mm(DW) 42*52mm(Height)

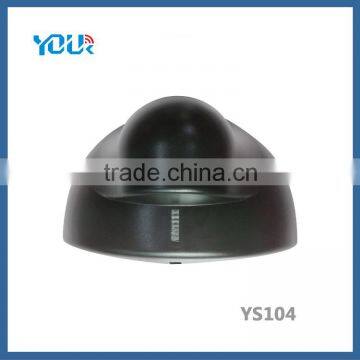

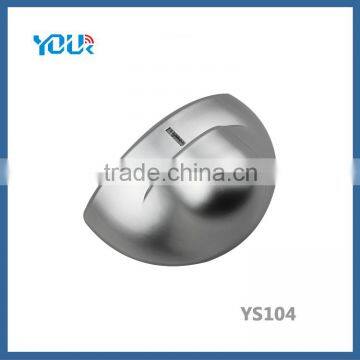

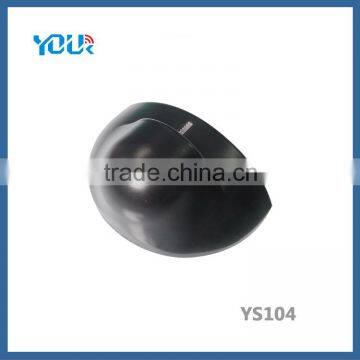

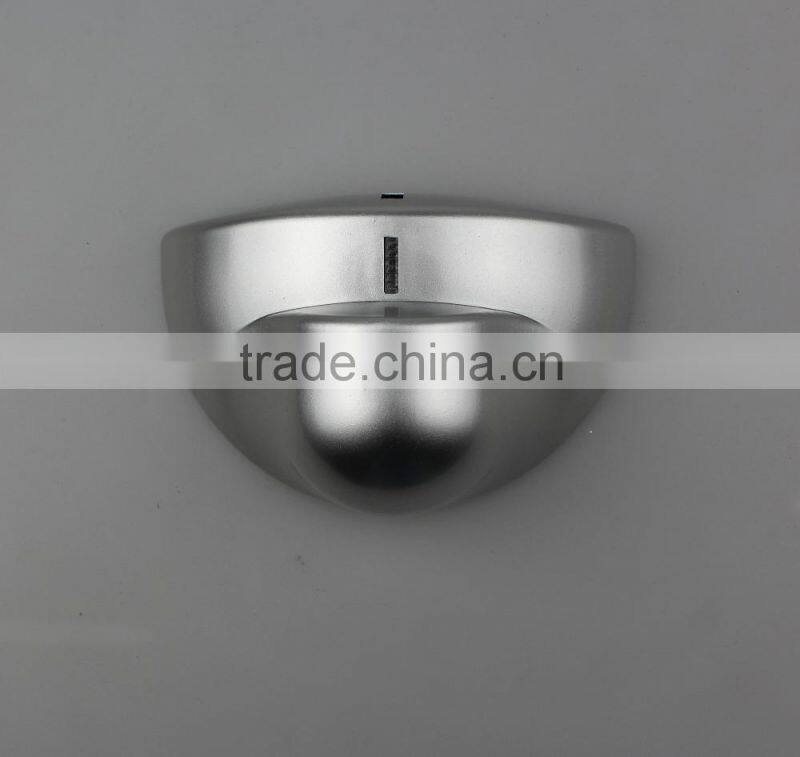

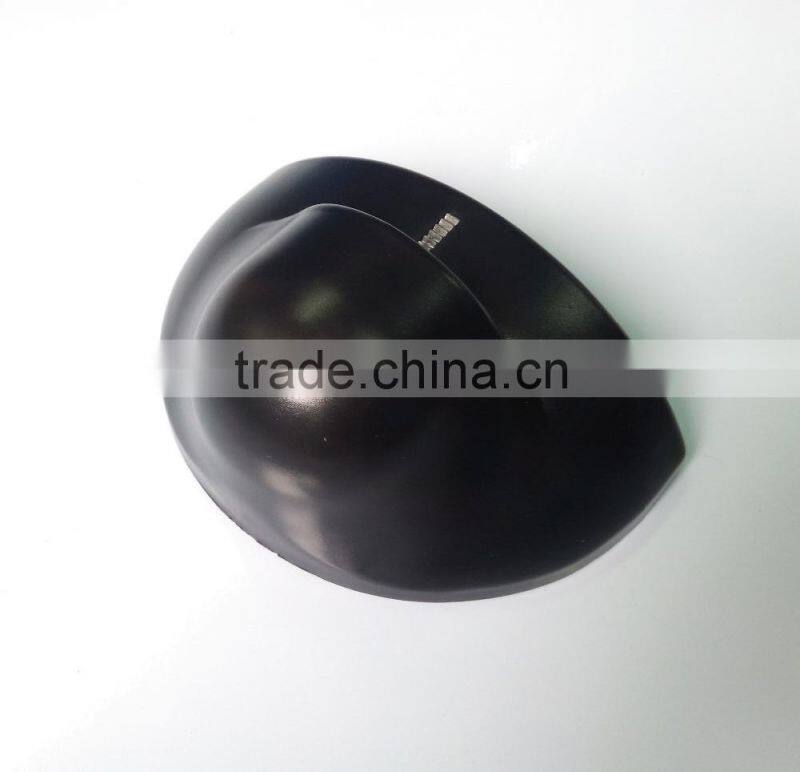

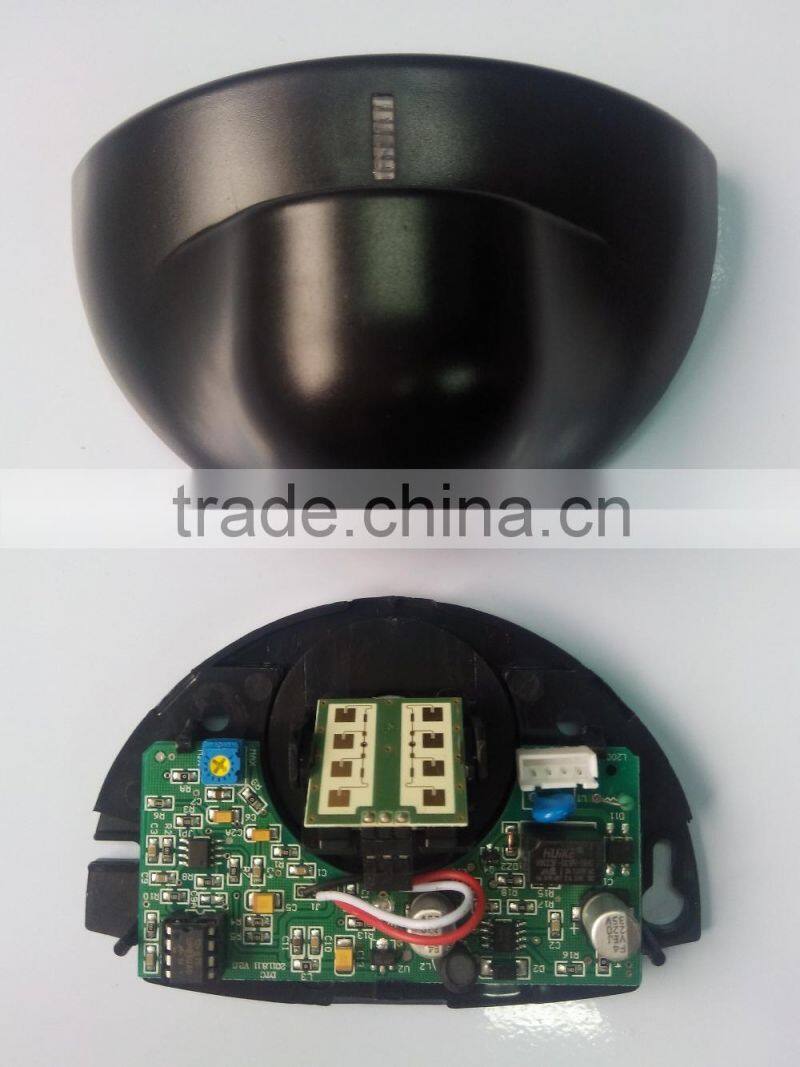

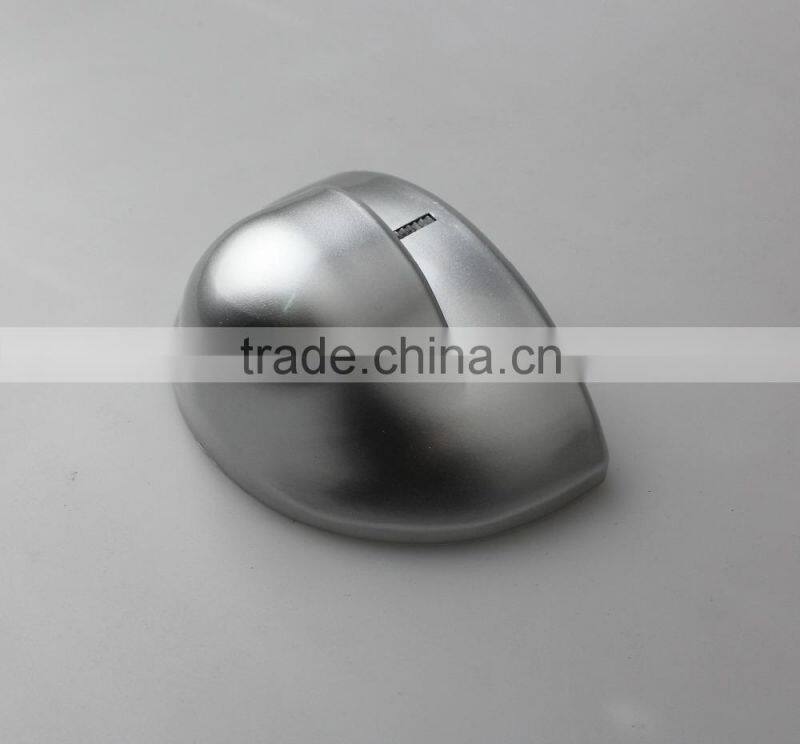

Detailed photos

Application
