24.125ghz microwave motion sensor for automatic door (YS105)

FOB Price

USD $1 - $30 / Piece

10 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Germany Innosent detecting chip, 24.125GHZ.

2.Eletric filter provide a good capacity of resisting disturbance from raining, wind, lighting and so on.

3.Safe, beautiful, economic, comfortable.

24.125ghz microwave motion sensor for automatic door (YS105)
Approval	CE & ISO9001
Realization technology	Microwave and microprocessor
Power source voltage	12v-24v AC +/- 10%; 12v-30v DC
Launch frequency	24.125ghz
Launch power	<20 dBm EIRP
Launch frequency density	<5mW/cm ²
Output retention time	0.5 second
Assemble an altitude maximal	3m
Assemble a dip angle	15° ,30° ,45° , 60°
The maximum checks range (while assembling 2.2 meters of altitude)	4m(W) x2m(H)
Checking pattern	Move
The minimum checks speed	5cm/s (Along the longitudinal axis of air wire to tests)
Power source frequency	50-60 HZ
Power dissipation	<2W(VA)
The relay outputs (there be no initial electric potential)
Maximal contact voltage Maximal contact electric current The maximum change power	42V AC-60V DC 1A (Electric resistance) 30W(DC) / 60VA(AC)
Temperature range	-20°C to +55°C
Protection rate	IP 52
Outer covering material	ABS Plastic
Outer covering color	Black, Silver gray
Weight	100g
Conducting wire length	2.5m
External form dimension	1286660mm(DWH)

Detailed Photos

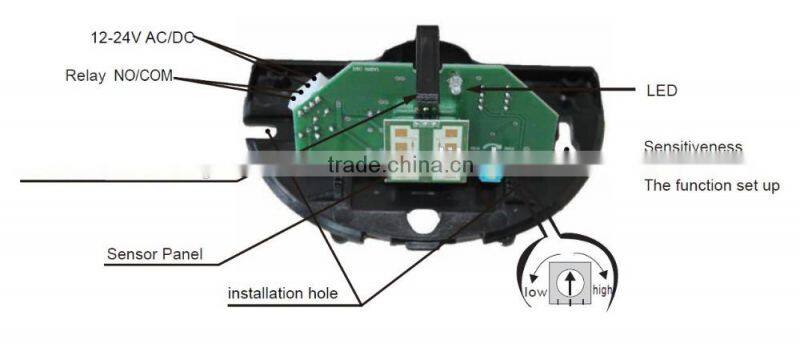

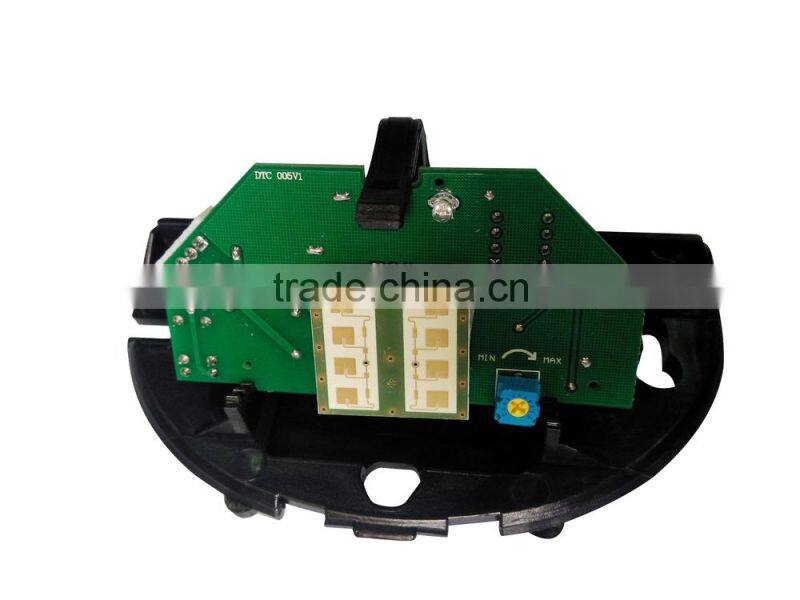

Components

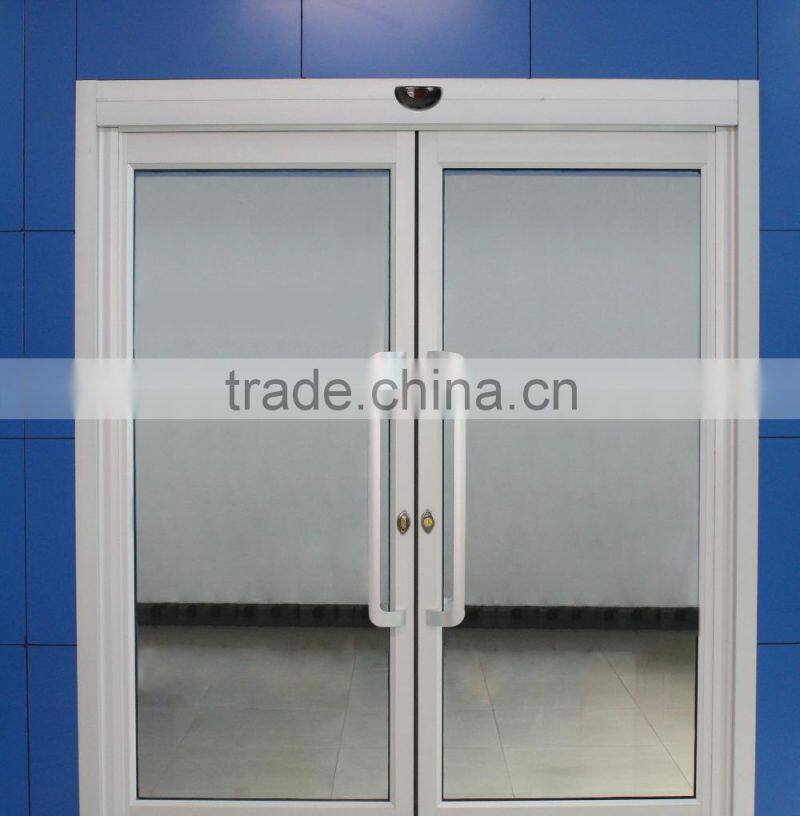

Application
