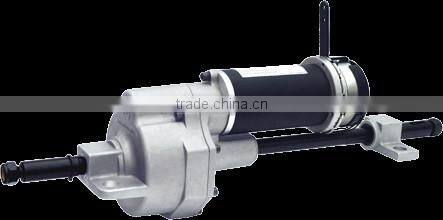

Mobility Scooter Propulsion Bridge
Negotiable
/ Unit
1 Unit(Min. Order)
- NINGBO/SHANGHAI
- T/T
You May Like
Product Details
| Voltage | 24V | Power | Other, 120-200W |
Product Description
Specification
Voltage: 24V
Power: 120-200W
Output Speed: 250-280rpm
Gear Ratio: 18:1
Torque Output:more than 0.5N.m
Noise: less than 60dB

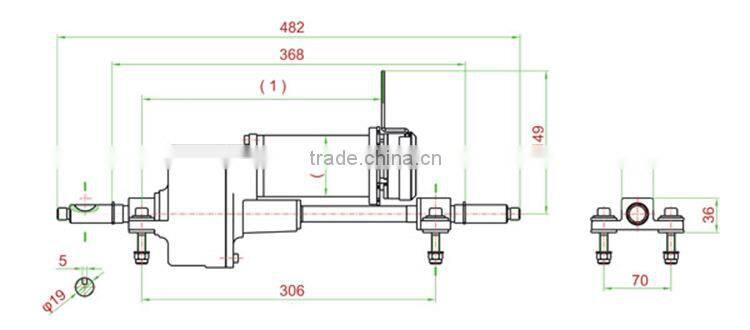

Motor Diameter: 250mm
Mobility Scooter Propulsion Bridge
Reducer Specifications
| Item | Reduction Ratio | Noise (dB) | Axial Clearance (mm) | Brake Torque (N.m) |
| GD-01 | 18 : 1 | ≤ 60 | ≤ 0.8 | ≥ 6.0 |
DC Motor Specifications(With Load)
| Item | Dimensions(mm) | Torque (N.m) | RPM (r/min) | Power (W) | Voltage (V) | Efficiency (%) | |
| (1) | (2) | ||||||
| GD-1001A | 250 | Φ64 | 0.40 | 3100±5% | 120 | 24 | ≥ 79.0 |
| GD-1002A | 250 | Φ70 | 0.58 | 3200±5% | 200 | 24 | ≥ 77.0 |
