12V DC Gear Motor for Golf Trolley Model ZY7712Z
US$ 40 - 100
/ Piece
100 Pieces(Min. Order)
- NINGBO / SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GINDUN | |
| Model Number | ZY7712Z | Usage | Electric Bicycle, Other, Electric Bicycle, used for Golf Trolley | |
| Certification | CE | Type | Gear Motor | |
| Torque | 0.57N.m | Construction | Permanent Magnet | |
| Commutation | Brush | Protect Feature | Totally Enclosed | |
| Speed(RPM) | 3250rpm | Continuous Current(A) | 19.2A | |
| Output Power | 200W | Voltage(V) | 12V | |
| Efficiency | IE 4 |
Product Description
Product Size: 77mm in Diameter, 236mm in Length
Votage: 12V / 24V
Torque: 0.57-0.64N.m
Rated Output: 150W-200W
Speed: 3250-3800rpm
Efficiency: ≥78%

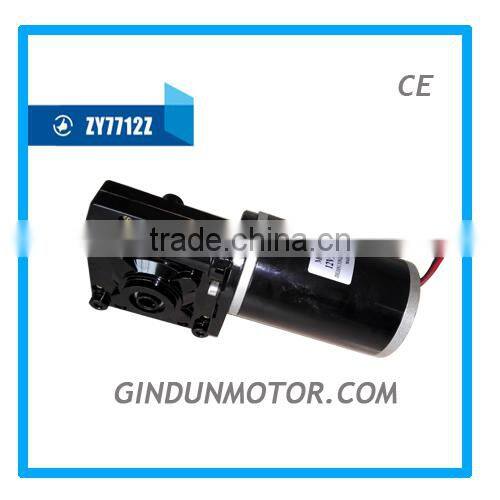

1.PRODUCT PHOTO

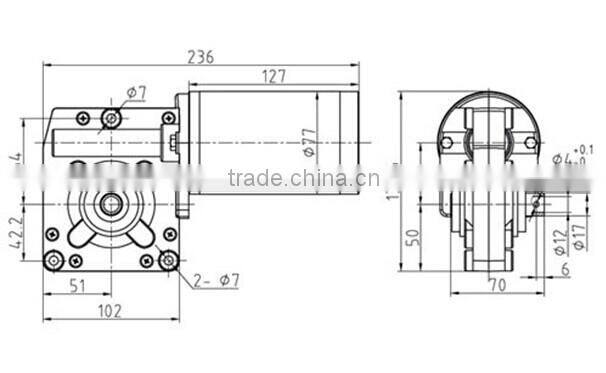

2.PRODUCT DEMISIONS
3.PRODUCT SPECIFICATIONS
| Specifications | No-load | Loaded | ||||
| Current/A | Speed/rpm | Torque/N.m | Speed/rpm | Rated Output/W | Current/A | |
| 150W12V | 1.8 | 3250 | 0.57 | 2500 | 150 | 19.2 |
| 150W24V | 1.6 | 3250 | 0.57 | 2500 | 150 | 9.2 |
| 180W12V | 1.8 | 3500 | 0.63 | 2750 | 180 | 23 |
| 180W24V | 1.6 | 3500 | 0.63 | 2750 | 180 | 11.5 |
| 200W24V | 1.8 | 3800 | 0.64 | 300 | 200 | 11.9 |
Our services
ALL THESE SPECIFICATIONS CAN BE CHANGED ACCORDING TO THE CLIENTS REQUESTS. EXACTLY IMAGES OR DESIGNS ARE WELCOMED FOR WEITHER ORDERS OR SAMPLES. WE ARE SINCERELY TO MATCH WITH YOUR DEMANDS.
