Home > Products > 4.5M High Lift Wheel Loader > XD918F 4.5M 0.8Ton High Dump wheel loader china agricultural equipment

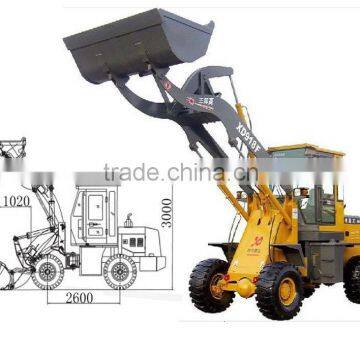

XD918F 4.5M 0.8Ton High Dump wheel loader china agricultural equipment
- 300 Unit / Units per Month
- qingdao or other main port
- T/T
You May Like
-
4.5m high dump wheel loader for sale XD935G farm machinery express china made
-
china made 4.5M high dump wheel loader XD918F express grain loader for sale
-
4.5M high dump wheel loader for sale express china made grain loader for sale
-
XD930G 1.2Ton 2.2CBM high dump Grain and cotton wheel loader with CE MADE IN CHINA Farm machine express
-
XD935G 1.6Ton grain wheel loader with CE MADE IN CHINA FOR dumping cotton seed and corn express
-
XD926G farm machinery
Product Details
Condition | New | Brand Name | XIANDAI | |
Model Number | XD918F | Place of Origin | Shandong, China | |
Type | Front Loader | Moving Type | Wheel Loader | |
Dimension(Long * Breadth * High) | 6800*2010*3000MM | Rated Load | 0.8T | |
Certification | CE/ CE NOISE /ISO9001 | Warranty | 12months | |
After-sales Service Provided | Overseas third-party support available |
1units/20GP container
Product Description
I.Basic Equipment
1.It has the highest dumping height(4.55m) in the world to meet all kinds of truck’s loading.
2.Big capacity bucket(1.2m3) make it load more light materials.
3.Widely used in cotton factory and plastic recycle workshop.
II.Specifications
Model | XD918F |
Main specifications | |
Bucket capacity (m3 ) | 1.2 |
Rated load (t) | 0.8 |
Weight (t) | 5.0 |
Lifting time of the arms (s) | ≤6 |
The sum of three items(s) | ≤10 |
Forward gear(km/h) | I 0-8 II 0-18 |
Reverse gear | I 0-8 II 0-18 |
Max. climbing gradient | 30° |
Demensions | |
Overall dimension (mm) | 6800*2010*3000 |
Wheel base (mm) | 2600 |
Wheel tread(mm) | 1430 |
Max. dumping height(mm) | 4500 |
Dumping reach (mm) | 1020 |
Diesel engine | |
Engine model | YN33 |
Engine type | In-line,water-cooling,4-stroke,4cylinder,direct-injection |
Rated power(kw) | 48 |
Rated speed (r/min) | 2400 |
Total exhaust of cylinder(L) | 3.76 |
Type of starting | Electric start |
Transmission system | |
Torque converter |
|
Model | YJ265 |
Type | Single stage, three elements |
Gearbox |
|
Model | ZL15 |
Type | Fix counter-shaft, power-shift |
Axle and tire |
|
Type of main reducer | Spiral bevel gear,single stage |
Type of final reducer | Single stage planetary |
Size of tire | 17.5-16 |
Working device of hydraulic system | |
Model of working pump | CBG2050 |
Nminal displacement(ml/r) | 50 |
Multi-way directional valve | ZL20 |
Rated flow(L/min) | 15 |
Steering system | |
Type | Load-sensing hydraulic steering |
Displacement(ml/r) | 250 |
Max input pressure(Mpa) | 16 |
Brake system | |
Type of traveling break | Air over hydraulic break |
Type of parking break | Manual disc break |
