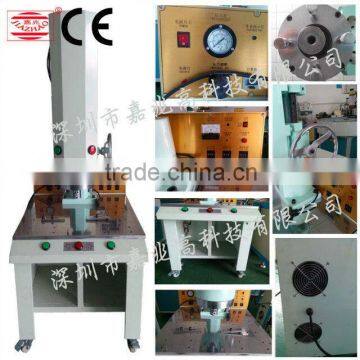

ABS Access Card Welding Ultrasonic Plastic Welding Machine

Main Features

1. True Digital Autotune- Provides fully-automatic tuning

2. Weld by time, energy, peak power, ground detect

3. Available in 2 frequencies – 15 Khz, 20 Khz

4. Increased power levels

5. Amplitude Stepping for optimization of weld strength and appearance

6. Built-in digital amplitude control - for fine tuning of critical applications

7. Various welding modes providing maximum flexibility, A range of welding modes enable

optimum ultrasonic processing of plastic parts.

8. Quick application changeover, high welding seam strength

9. Suitable for high cadences and short cycle times

10. Systems Protection Monitor (SPM) Five levels of power supply protection are provided:

1) phasing, 2) over voltage, 3) over current, 4) over temperature, 5) power.

Process of Ultrasonic Plastic Welding Machine

Step 1 - Parts in fixture

The two thermoplastic parts to be assembled are placed together, one on top of the

other, in a supportive nest called a fixture.

Step 2 - Horn contact

A titanium or aluminum component called a horn is brought into contact with the

upper plastic part.

Step 3 - Pressure applied

A controlled pressure is applied to the parts, clamping them together against the

fixture.

Step 4 - Weld time

The horn is vibrated vertically 20,000 (20 kHz) or 40,000 (40 kHz) times per second, at distances measured in thousandths of an inch (microns), for a predetermined amount of time called weld time. Through careful part design, this vibratory mechanical energy is directed to limited points of contact between the two parts. The mechanical vibrations are transmitted through the thermoplastic materials to the joint interface to create frictional heat. When the temperature at the joint interface reaches the melting point, plastic melts and flows, and the vibration is

stopped. This allows the melted plastic to begin cooling.

Step 5 - Hold time

The clamping force is maintained for a predetermined amount of time to allow the

parts to fuse as the melted plastic cools and solidifies. This is known as hold time.

(Note: Improved joint strength and hermeticity may be achieved by applying a

higher force during the hold time. This is accomplished using dual pressure.)

Step 6 - Horn retracts

Once the melted plastic has solidified, the clamping force is removed and the horn

is retracted. The two plastic parts are now joined as if molded together and are

removed from the fixture as one part.



Adsvantages of Ultrasonic plastic welding machine



Plastics assembly is a fast, clean, efficient, and repeatable process that consumes very little energy. No solvents, adhesives, mechanical fasteners, or other consumables are required, and finished assemblies are strong and clean.

Machine Parts

Name: Injection molded parts ultrasonic welding machine

Brand: Jiazhao

Original: China

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits .

Main Features

Name:ABS access card welding machine
Brand: Jiazhao
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits .

Machine Parts

Name: ABS access card welding machine
Brand: Jiazhao
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits .

Main Features

Name: ABS access card welding machineBrand: Jiazhao
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits .
