Support Suspended Ceiling System Ceiling Grid Tee Bar

Suspension ceiling t grids       product is the indispensible building decoration material used in the ceiling suspension system. It is applied for the installation of various ceiling panels like miner fiber board, gypsum board, PVC gypsum board and so on.

Feature

Material:

hot-dip galvanized steel,  With beautiful rustproof, non-corroding, fire-resistant, high intensity, high toughness.

Surface:

prepainted steel strip

Thickness:

0.4mm,0.35mm, 0.3mm, 0.26mm,0.23mm

Color:

ivory-white/ black ( optional)



The length, width, thickness and color can be provided according to customers' requirements

Product	Item	Name	Size 1	Size2	Packing (pcs/carton)	Materia	Color
	Flat T grid	Main tee	24*38*3000	24*32*3000	25	hot-dip galvanized steel	white/black
		Cross tee	24*26*1200	24*24*1200	50	hot-dip galvanized steel	white/black
		Cross tee	24*26*600	24*24*600	75	hot-dip galvanized steel	white/black
		Wall angle	22*22*3000	22*22*3000	50	hot-dip galvanized steel	white/black
	Slotted T grid	Main tee	15*42*3000	15*32*3000	25	hot-dip galvanized steel	white/black
		Cross tee	15*42*1200	15*32*3,000	50	hot-dip galvanized steel	white/black
		Cross tee	15*42*600	15*32*600	50	hot-dip galvanized steel	white/black
		Wall angle	22*22*3000	22*22*3000	50	hot-dip galvanized steel	white/black
	Grooved T grid	Main tee	23*32*3000	23*29*3000	25	hot-dip galvanized steel	white/black
		Cross tee	23*32*1200	23*29*1200	50	hot-dip galvanized steel	white/black
		Cross tee	23*32*600	23*29*600	50	hot-dip galvanized steel	white/black
		Wall angle	22*22*3000	22*22*3000	50	hot-dip galvanized steel	white/black

Real Product Photos Show

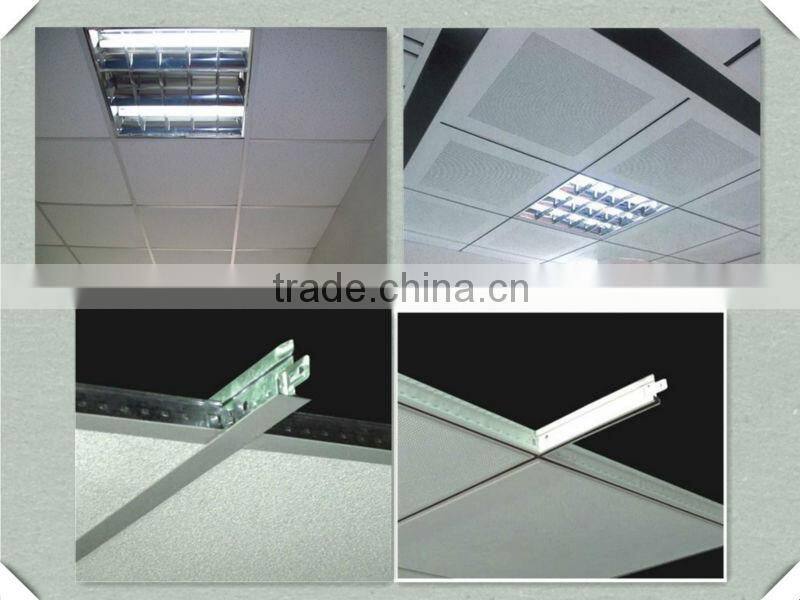

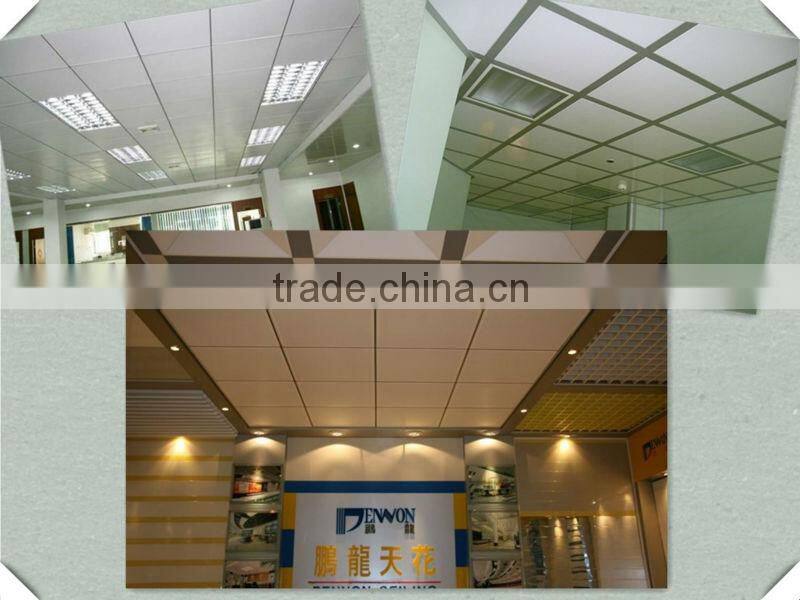

 Project  Show

Workshop Show

 Certificate

Quality Inspection Procedure

1  At Pennon,10% employees are QC/QA workers.

2  Including Random-checks and sample-check

3  Qualified rate is higher than 98%

4  We have five strict QC processes including incoming materials QC, IPQC (in process QC on patrol), LQC (line QC), FQC (final product QC) and OQC (output QC before shipping).

MOQ

20GP

Delivery time

7-14 days

Packing

Standard carton(Our logo , your logo,or not logo)

If you find any product problems in the first order,we will give you the new parts for free to replace in the next order.
