360.22.1155.010 Type 90/1300.22 WA Turntable Bearing
- Main ports in China
- T/T L/C Credit Card PayPal
You May Like
-
360.24.1055.010 Type 90/1200.24 WA Slewing Bearing Turntable
-
360.22.1055.010 Type 90/1200.22 WA Turntable Bearing
-
360.24.0955.010 Type 90/1100.24 WA Ball Bearing Turntable
-
360.22.0955.010 Type 90/1100.22 WA Turntable Bearing
-
360.22.1100.010 Type 90/1300.22 Ball Bearing Turntable
-
360.24.1000.010 Type 90/1200.24 Slewing Turntable Bearing
Product Details
| Parts | Trailer Suspension | Max Payload | 180KN | |
| Place of Origin | Liaoning, China | Brand Name | RTR | |
| Model Number | 360.22.1155.010 Type 90/1300.22 WA |
Product Description
Specifications
Rothe Erde Turntable 360.22.1155.010 Type 90/1300.22 WA1.Warranty:12 months
2.OEM
3.Sample available
4.Technical suppor

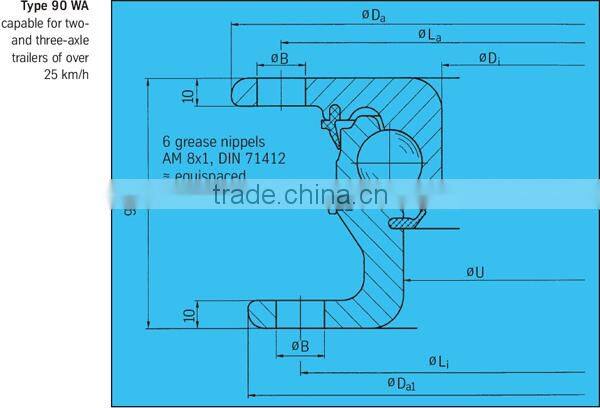

1. Rothe Erde Turntable 360.22.1155.010 Type 90/1300.22 WA : Below please find the reference number of trailer turntables, and click the number to see more details and specifications.
| Number · Type | DL mm | weight kg | Da mm | Di mm | H mm | La mm | Li mm | B mm | n1 | Da1 mm | U mm | d mm | 2 axles kN | more than 2 axles kN | axial clearance mm | radial clearance mm |
| 360.22.0955.010 Type 90/1100.22 WA | 994 | 71 | 1108 | 954 | 90 | 1074 | 1060 | 18 | 6 | 1100 | 985 | 22 | 130 | 120 | 0.8 | 0.6 |
| 360.24.0955.010 Type 90/1100.24 WA | 994 | 71 | 1108 | 954 | 90 | 1074 | 1060 | 18 | 6 | 1100 | 985 | 24 | 180 | 160 | 0.8 | 0.6 |
| 360.22.1055.010 Type 90/1200.22 WA | 1094 | 79 | 1208 | 1054 | 90 | 1174 | 1160 | 18 | 6 | 1200 | 1085 | 22 | 160 | 140 | 0.8 | 0.6 |
| 360.24.1055.010 Type 90/1200.24 WA | 1094 | 79 | 1208 | 1054 | 90 | 1174 | 1160 | 18 | 6 | 1200 | 1085 | 24 | 200 | 180 | 0.8 | 0.6 |
| 360.22.1155.010 Type 90/1300.22 WA | 1194 | 87 | 1308 | 1154 | 90 | 1274 | 1260 | 18 | 6 | 1300 | 1185 | 22 | 180 | 160 | 0.8 | 0.6 |

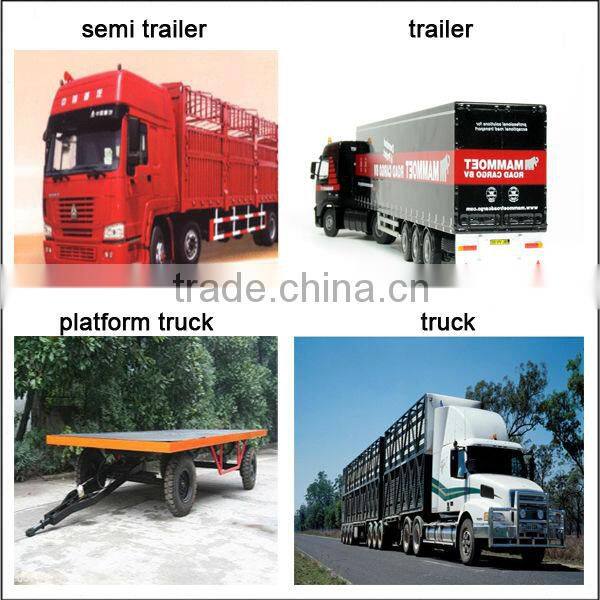

2. RTR Trailer Turntables Applications: RTR turntables are widely used in trailers, semi-trailers, platform truck,trucks and agricultural vehicles.

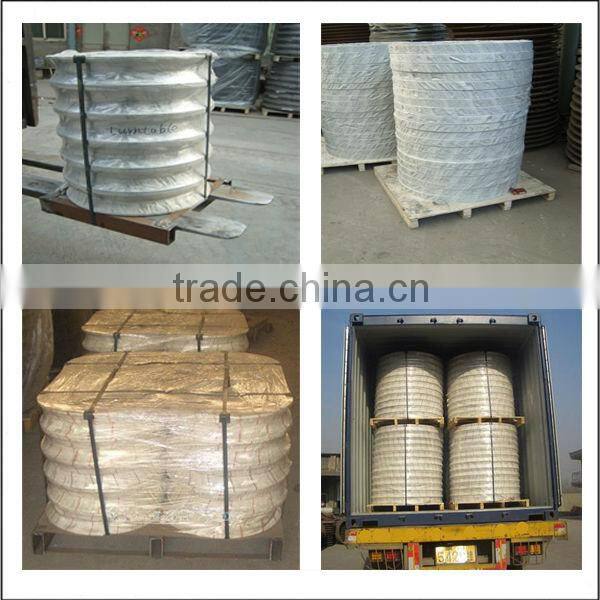

3. RTR Trailer Turntables Packaging: turntables are packaged well then put on the tray.
4. RTR Group: RTR bearings, RTR slewing rings, RTR precision bearings, RTR transmission,RTR machinery, RTR engineering and RTR online bearings store make up RTR Group.
5. Market Distribution& Customer Reference: customers are spreaded all over the world and annual turnover kept increasing in past 5 years.
6.Contact Us:
More Rothe Erde Turntables:
