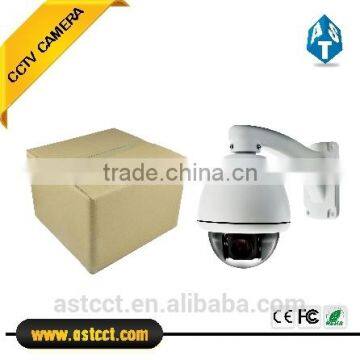

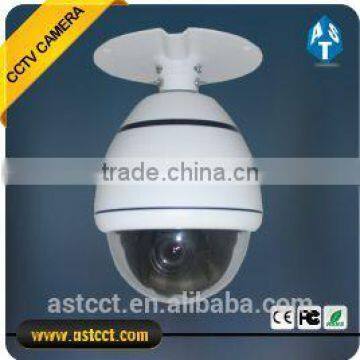

1080P HD CVI PTZ Camera 10X Optical Zoom 2.0Megapixel Sony CMOS MINI PTZ Camera CVI High Speed Dome Camera Support Ip66 DC12V 2A
- Shenzhen
You May Like
-
Metal Housing Support Ip66 Sony Cmos Outdoor 27X Optical Zoom 1080P HD CVI PTZ Camera
-
960P HD CVI PTZ Camera 10X Optical Zoom 1.3 Megapixel Sony CMOS MINI PTZ Camera CVI High Speed Dome Camera 100% Metal With Ip66
-
1.3Megapixel 27X Digital Zoom CVI PTZ Camera 960P Sony Panasonic Housing Camera Cvi High Speed Dome Camera Support Ip66
-
HD TVI 960P 10x Zoom Ptz Camera 1.3 Mp Sony Sensor Mini IR 70M Mini High Speed Dome Camera Provide by China Supplier
-
Intelligent Full HD TVI Camera 1080P 10x Zoom Ptz Camera 2.0Mp Sony Sensor Mini IR Ptz High Speed Dome Camera, Support IP66
-
Highest OSD Protection HD TVI 1080P 2.0Mp Mental Housing 10x Mini High Speed Dome Cctv Camera With High Performance
Product Details
| Place of Origin | Guangdong, China | Brand Name | AST | |
| Model Number | ASHC404-010-20 | Type | Digital Camera | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | Pan / Tilt / Zoom | Special Features | Waterproof / Weatherproof |
Product Description

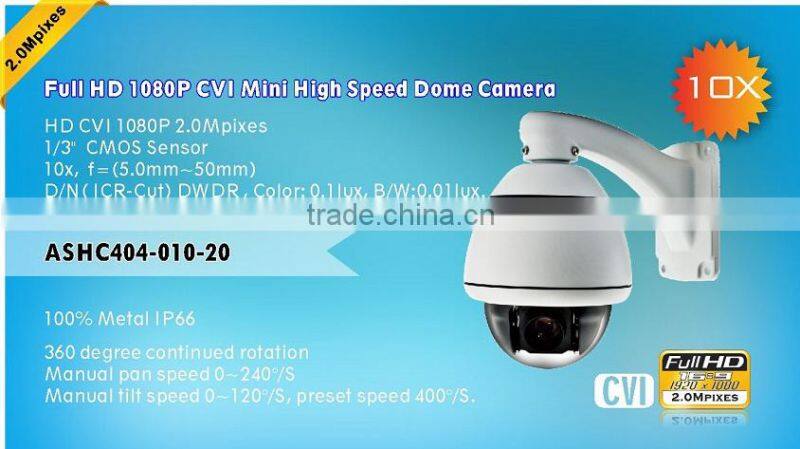

1080P HD CVI PTZ Camera 10X optical zoom 2.0Megapixel Sony CMOS MINI PTZ Camera CVI High Speed Dome Camera support Ip66 DC12V 2A
Camera:
HD CVI 1080P 2.0Mpixes
1/3" CMOS Sensor,10x, f=(5.0mm~50mm), , D/N( ICR-Cut) DWDR , Color: 0.1lux, B/W:0.01lux.
Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Highest ESD protection against lightning and power surges.
3.360 degree continued rotation, manual pan speed 0~240°/S, manual tilt speed 0~120°/S, preset speed 400°/S.
4. HD-CVI output
| Mode | Name and Description | ASHC404-010-20 HD CVI High Speed Dome Camera |
| ASHC404-010-20 Outdoor | ||
| Camera | Camera Name | AS-AT010 (10X D/N)) |
| Image Sensor | 1/3" CMOS Sony 322 | |
| Effective Pixels | 2.0 Mpixes | |
| Horizontal Resolution | 1080P | |
| Min. Illumination | 0.1Lux :Color/0.01 Lux:B/W | |
| Zoom | 10X, f=5.0mm~50.0mm | |
| Day/Night | AUTO/COLOR/BW | |
| SNR | ≥50dB(AGC OFF) | |
| WDR | DWDR | |
| White Balance | Auto/Indoor/Outdoor/Manual | |
| Electronic shutter | 1/30s~1/10,000s | |
| Dome Features | Address | 0~255(soft address and hard address) |
| Pan Range | 360° continued rotation | |
| Tilt Range | 0~90°(Auto Flip) | |
| Manual pan speed | 0~240º/S | |
| Manual tilt speed | 0~120°/S | |
| Preset speed | 400°/S | |
| Actual preset Accuracy | ±0.10° | |
| Preset points | 128 | |
| Operation OSD language | Chinese /English | |
| OSD Display | dome menu & camera menu adjustment | |
| Home position | Return to preset/scan/pattern/ if there is no command in the specified period. | |
| Operation recall | recall operation zone | |
| Tour | 4 | |
| Communication Protocol | HD-CVI | |
| Intelligent Three -dimensional Scan | Auto Pan & Tilt &Zoom /Manual | |
| Pattern group | 4 Programmable(Pan/Tilt/Zoom ) | |
| Speed adaption | Speed slows down automatically when zoom in | |
| Intelligent power off real time memory | automatic save functions setting ,automatic wake up tour function | |
| Camera Menu operation | support the operation of camera set up | |
| Manual continued Auto Scan | Non-limited position of manual continued Auto scan | |
| General | Work temperature | External–35℃~55℃ |
| Work Humidity | 0%~90% (Non condensing) | |
| Power | DC12V±10%; 2A | |
| Consumption | 50W | |
| Communication | RS-485 | |
| Video Output | HD-CVI | |

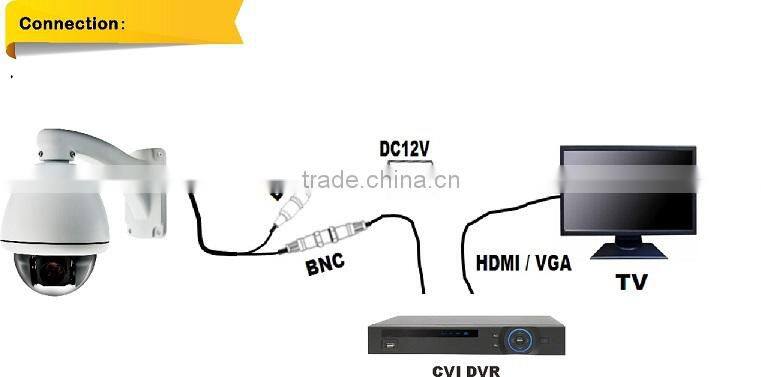

| Connection | BNC |
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small
order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
