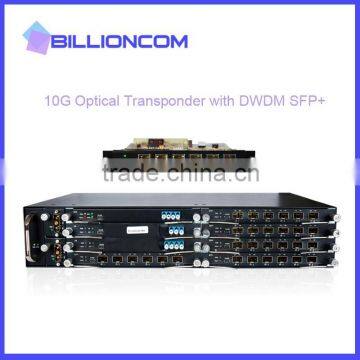

10G DWDM SFP+ OTU Fiber Optical Transponder Unit

OEO6500-SFP+ Card:  With 6 SFP+ Interfaces, support up to 3 channels wavelength conversion with rate 125M-10G, support 1+1 inter-board hot backup protection.

Overview

OEO6500-SFP+ is an optical fiber link wavelength converter (fiber amplifier). It regenerates optical signals in the principle of optical-electrical-optical to realize the amplification and wavelength conversion of optical signals. Wavelength division multiplexing can be realized by using C/DWDM multiplexer/de-multiplexer, which especially applies to optical transport systems up to 10G SDH/SONET, Ethernet etc. It provides cost-efficient solutions for the regeneration of optical signals and the transmission of rare fiber resources.

Features

• With six ports compatible with both SFP and SFP + modules;
• Support a maximum port rate of 10Gb/s, and is compatible with 125M/155M/622M/1G/2G5/4G/6G/8G;
• Support non-blocking cross switch configuration of any port;
• Support channel 1 + 1 protection and data multicasting or broadcasting;
• Support CDR function that SONET/SDH STM-1, STM - 4, STM16, STM 64 are optional;
• Support 1GFC, 2GFC, 4GFC, 8GFC, 10GFC, 10GE and 10GE rates;
• Support DWDM in compliance with ITU-T standards;
• Can be operated and controlled independently;
• Support shut-down of TX laser when there is no received optical signal.

Application

Single Port Loopback Mode

OEO Conversion Mode

Port 1 + 1 Protection Mode
