SNMP Managed Rack-mounted 48 Channels DWDM Mux and DeMux Equipment
- 100000 Pair / Pairs per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | Billioncom | |
| Model Number | AWG6148 |
Product Description
Product Overview:

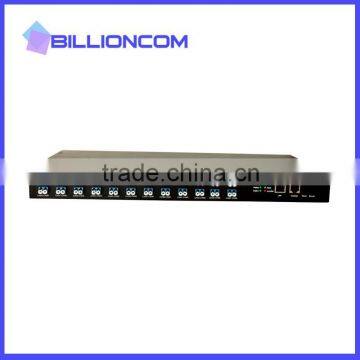

Billioncom's Rack-mounted 48 channels DWDM Mux and DeMux chassis provide excellent solution for infrastructure savings by aggregating 48 different wavelengths onto a single fiber. These 1U products are protocol transparent. All 48 channels are in the C-band with spacing of 100 GHz between channels using high quality AWG Gaussian technology.
Dual Fiber Transmission 4 Channels DWDM Mux and Demux
BIDI Transmission 4 Channels DWDM Mux and Demux
Singal Fiber Transmission 4 Channels DWDM Mux and Demux
Features:
- High isolation
- Low insertion loss
- Dual power supply
- Can be management by console and NMS
- Expoxy-free optical path
- Low total integrated crosstalk
- Excellent stability & reliability
- Excellent wavelength accuracy & stability
Applications:
- DWDM Metro and Long Haul Networks
- Fiber savings for Data Centers connectivity
Specifications:
Parameter | Value |
Number of Channels | 48 |
Channel Spacing | 100Ghz |
Operating Wavelength | C-band |
Passband Frequency | ±0.1nm |
Wavelength Accuracy | ±50pm |
Insertion Loss | <6.0dB |
Consistency of Insertion Loss | <1.2dB |
Insertion Loss Flatness | <0.5dB |
0.5dB Passband | >0.2nm |
1dB Passband | >0.4nm |
3dB Passband | >0.6nm |
20dB Passband | <1.2nm |
Adjacent Channel Isolation | ≥25dB |
Non-Adjacent Channel Isolation | ≥30dB |
Total Crosstalk | 22 dB |
Return Loss | ≥40dB |
Polarization Dependent Loss | <0.5ps |
Polarization Mode Dispersion | <0.5ps |
Maximum Load Optical Power | 24dBm |
Monitoring Range of Optical Power | -35dBm ~ +23dBm |
Connector Form | LC/UPC |
Operating Temperature | -10~+65℃ |
Relative Humidity | 95% |
Dimensions | 19-inch 1U rack (440 x 220 x 44mm) |
