Product Details
Place of Origin | Guangdong, China | Brand Name | AST | |
Model Number | ASHA20-D25-422 | Type | Digital Camera | |
Style | Dome Camera | Sensor | CMOS | |
Technology | Infrared | Special Features | Waterproof / Weatherproof |
Product Description

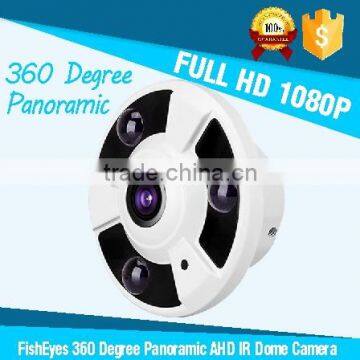

fisheye cctv camera 2MP Panoramic 360 degree camera bird view system Sony CMOS sensor AHD Color IR Dome Camera
Camera:
Full HD resolution 1920 x 1080P with Sony IMX322 CMOS sensor,Easy installation, HD video, OSD menu control over coaxial cable
Key Features:
1.Adopt Analog HD technology
2.Full HD 1080P AHD video output
3.1/2.8" 2.1MP Progressive Scan CMOS
4.Min illumination color 0.01 Lux
5.Day/Night(ICR)& 3D DNR&AWB&AGC&BLC
6.Support the OSD menu control
7.360°Panoramic with 5.0MP 1.78mm Lens
8.3pcs lattice lamp, IR distance 15M
9.Full Metal housing
10.IP66
Form parameters | ||
Mode | Name and Description | FishEye 2MP 360 Degree Panoramic AHD Color IR Dome Camera |
ASHA20-D25 -422 | ||
Camera | Media Processor | NVP2441H + IMX322 |
Image Sensor | 1/2.8" 2.1MP Progressive Scan CMOS (SONY IMX322) | |
Effective Pixels | 1984(H)*1105(V) | |
Video Frame Rate | 1080p@25fps (PAL)/1080p@30fps(NTSC) | |
Signal System | PAL/NTSC | |
Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR | |
Shutter Time | Auto/ 1/50 / (1/60) to 1/10,0000s | |
Lens | 360°Panoramic with 5.0MP 1.78mm Lens | |
Lens Mount | M12 Mount | |
Day& Night | Auto,dual IR-cut filter | |
IR Distance | 3pcs lattice lamp, IR distance 15M | |
S/N Ratio | ≥80dB(AGC OFF) | |
Video Output | AHD 1080P & CVBS 960H | |
Synchronization | Internal Synchronization | |
Menu | Auto Gain | Low/Middle/High/Off |
White Balance | AWB/ATW/Indoor/Outdoor/Manual | |
D-WDR | Support | |
Noise Reduction | 2D/3D DNR | |
Private Mask | On/Off, maximum 8 zones | |
Motion Detection | On/Off, maximum 4 zones | |
Language | Chinese/English/German/French/Italian/Spanish/polish/Russian/Portuguese/Turkish | |
Function | Sharpness, Brightness, Defog, Mirror | |
General Parameters | Power Supply | DC12V |
Operation Temperature | -20℃ - +50℃ | |
Operation Humidity | Less than 95%RH(no condensation) | |
Weather Proof Rating | IP66 | |
Dimension | 136.2*136.2*68.4mm | |
Weight | 0.5Kg |
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
