Product Details
Place of Origin | Guangdong, China | Brand Name | AST | |
Model Number | ASIH36-D7-020 | Type | IP Camera | |
Style | Dome Camera | Sensor | CMOS | |
Technology | NetWork | Special Features | Waterproof / Weatherproof |
Product Description

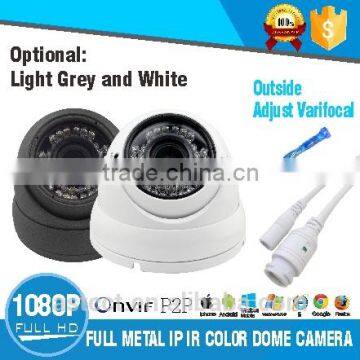

Product Name: Home Security System1080P 2.0MP HD IP Color IR Dome Camera
Camera:
1/2.8" 2.0 Megapixels Progressive Scan Sony IMX322 CMOS, Hisilicon Hi3516C Chipset, the highest resolution of 1920*1080, low illumination 0.1 Lux F1.2 (color); 0.01 Lux F1.2 (black and white ); IR-CUT (day/night), adapt Box, H.264 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.
Key Features:
1.1/2.8" 2.0 Megapixels Progressive Scan Sony CMOS
2.Max 25/30fps 2.0 Megapixels (1920×1080, 1280×960, 1280×720)
3.Min. Illumination: 0.1 Lux F1.2 (color); 0.01 Lux F1.2 (black and white)
4. H.264 & MJPEG dual-stream encoding
5.Multiple network monitoring: Web viewer, Smart phone.
6.2.8-12mm Vari Focal Lens,42pcs Ø5 LEDs, up to 40m IR distance
7.Privacy Mask, Motion Detection
8.Support Onvif 2.4 protocol
9.POE function
10.IP66 rating
Mode | Name and Description | H.264 2.0MP HD IP Color Outside Adjust Varifocal IR Dome Camera |
ASIH36-D7-020 | ||
Camera Specification | Media Processor | Hi3516C+SONY IMX322 |
Image Sensor | 1/2.8” 2.0 megapixels Progressive Sony IMX322 CMOS | |
Effective Pixels | 1920(H)x1080(V) | |
Shuttle time | Auto (1/25 ~ 1/10000s) | |
Min. Illumination | 0.1Lux/F1.2(Color) 0.01Lux/F1.2(B/W) | |
Lens Specifications | 2.8-12mm Vari Focal Lens | |
Day/Night Mode | Auto(ICR)/Color/B/W | |
IR Distance | 42pcs Ø5 LEDs, up to 40m IR distance | |
S/N Ratio | ≥50db(AGC OFF) | |
White Balance | Auto | |
Gain Control | Auto | |
WDR | Digital WDR ≥80db | |
Image | Compression | H.264/MJPEG |
Max Image Size | 1920(H)x1080(V) | |
Stream | Dual-stream | |
Frame Rate | Main Stream : | |
1920*1080,1-25(30))fps ; 1280*720,1-25(30)fps | ||
Sub-stream : | ||
704*576,1-25(30)fps 640*352,1-25(30)fps | ||
640*480,1-25(30)fps 320*240,1-25(30)fps | ||
Bit Rate | 32KB ~16Mbps; support VBR; CBR | |
Text Overlay | Channel; Date & Time; Bit Rate | |
Network | Data Storage | Video record; Picture format |
Trigger | Manual; Automatic(motion detection; alarm; schedule; cycle ) | |
Alarm data transmission | FTP; E-mail; Browser; CMS | |
Protocol | TCP/IP/IUDP/IRTP/IRTSP/IRTCP/IHTTP/IDNS/IDDNS/IDHCP/IFTP/ INTP/IPPPOE/ISMTP/IUPNP | |
ONVIF | ONVIF 2.4 | |
Max. User Access | 10 users; IE; Google; Firefox | |
Smart Phone | Windows Mobile; iPhone; iPad; Android | |
Interface | Audio in | Support |
Audio out | Support | |
BNC Video out | N/A | |
Memory Card | N/A | |
RS422/RS485 | N/A | |
USB | Support (64G USB flash/WIFI/3G) | |
Alarm in | N/A | |
Alarm out | N/A | |
IO Interface | Support (Reset ) | |
General Parameters | Power Supply | DC12V |
Operation Temperature | -20℃ - +50℃ | |
Operation Humidity | Less than 95%RH(no condensation) | |
Weather Proof Rating | IP66 | |
Dimension | 119.8*119.8*121.4mm | |
Weight | 0.5Kg |
Packading Details: Standard Paper Box Packing / Carton Packing
Delivery Detail: 3-7 working days after payment comfirmed
