Home > Products > H.265 IP Camera > H.265 4.0MP IP CMOS Sensor Bullet Network Camera H.265 Surveillance CCTV Camera Mini Bullet Camera

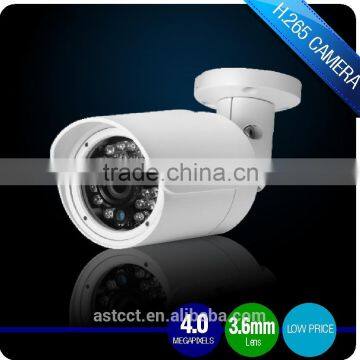

H.265 4.0MP IP CMOS Sensor Bullet Network Camera H.265 Surveillance CCTV Camera Mini Bullet Camera
- Shenzhen
You May Like
-
IP Starlight H.265 CMOS Sensor Bullet 3.0 Megapixels Network Camera H.265 IP .3.6mm Fixed Lens CCTV Camera Mini Bullet Camera
-
Sony178 0.001lux IP Starlight Full Color Bullet CCTV Camera with H.265 6.0Megapixels 3.6-10mm lens IP Surveillance CCTV
-
H.265 5Mpixels 3.3-10.5mm lens IP Color IR Surveillance cctv Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection
-
H.265 5.0Megapixels 3.3-10.5 Outside Adjust Varifocal lens Network IP Waterproof Bullet CCTV Camera for CCTV Manufacturer Quality Choice
-
Sony124 0.001lux IP Starlight Full Color Bullet CCTV Camera with H.265 3.0Megapixels 2.8-12mm lens IP Surveillance Camera
-
H.265 2.0MP 120dB Super WDR BLC HD IP Color IR Bullet Camera with 3Mpixes 2.8-12mm Manualvari-focal lens IR 40m
Product Details
Place of Origin | Guangdong, China | Brand Name | AST | |
Model Number | ASIH20-B4-3330 | Type | IP Camera | |
Style | Bullet Camera | Sensor | CMOS | |
Technology | NetWork | Special Features | Waterproof / Weatherproof |
Product Description
Camera
1/3" 4.0 Megapixels OV4689 CMOS Sensor ,Hisilicon Hi3516D Chipset, the highest resolution of 2592*1520, low illumination 0.6 Lux/F1.2 (color); 0.08 Lux/F1.2 (black and white) ,IR-CUT (day/night), H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.
Key Features:
1.1/3" 4.0 Megapixels OV4689 CMOS
2.Max 1-15fps/4.0 Megapixels (2592*1520)
3.Min. Illumination:0.6 Lux/F1.2 (color); 0.08 Lux/F1.2 (black and white)
4. H.264/H.265 & MJPEG dual-stream encoding
5.Multiple network monitoring: Web viewer, Smart phone.
6.3.6mm Fixed Lens, 24pcs Ø5 LEDs, up to 20m IR distance
7.Privacy Mask, Motion Detection
8.Support Onvif 2.4 protocol
9.POE function optional
10.IP66 rating
Form parameters | ||
Mode | Name and Description | H.265 4.0MP IP Color IR Mini Bullet Camera |
ASIH20-B4-3330 | ||
Camera Specification | Media Processor | HI3516D+OV4689 |
Image Sensor | 1/3" 4.0 Megapixels OV4689 CMOS | |
Effective Pixels | 2592*1520 | |
Shuttle time | Auto (1/25 ~ 1/10000s) | |
Min. Illumination | 0.6 Lux/F1.2 (color); 0.08 Lux/F1.2 (black and white) | |
Lens Specifications | 3.6mm Fixed Lens | |
Day/Night Mode | Auto(ICR)/Color/B/W | |
IR Distance | 24pcs Ø5 LEDs, up to 20m IR distance | |
WDR | DWDR ≥80db | |
S/N Ratio | ≥50db(AGC OFF) | |
Image | Compression | H.264/MJPEG/H.265 |
Max Image Size | 2592(H)x1520(V) | |
Stream | Dual-stream | |
Frame Rate | Main Stream : | |
2592*1520, 1-15fps ;2048*1520,1-25(30)fps ;1920*1080,1-25(30)fps | ||
Sub-stream : | ||
704*576,1-25(30)fps 640*352,1-25(30)fps | ||
640*480,1-25(30)fps 320*240,1-25(30)fps | ||
Bit Rate | 32KB ~16Mbps; support VBR; CBR | |
Text Overlay | Channel; Date & Time; Bit Rate | |
Network | Data Storage | Video record; Picture format |
Trigger | Manual; Automatic(motion detection; alarm; schedule; cycle ) | |
Alarm data transmission | FTP; E-mail; Browser; CMS | |
Protocol | TCP/IP/IUDP/IRTP/IRTSP/IRTCP/IHTTP/IDNS/IDDNS/IDHCP/IFTP/ INTP/IPPPOE/ISMTP/IUPNP | |
ONVIF | ONVIF 2.4 | |
Max. User Access | 10 users; IE; Google; Firefox | |
Smart Phone | Windows Mobile; iPhone; iPad; Android | |
Interface | Motion detect | Support |
Privacy Zone Masking | Support | |
Audio in | Support | |
Audio out | Support | |
BNC Video out | Support | |
Memory Card | N/A | |
Alarm in | Support | |
Alarm out | N/A | |
IO Interface | Support (Reset ) | |
RS485 | Support | |
General Parameters | Power Supply | DC12V |
Operation Temperature | -20℃ - +50℃ | |
Operation Humidity | Less than 95%RH(no condensation) | |
Weather Proof Rating | IP66 | |
Installation | Equipped With Bracket | |
Dimension | 172*65*62mm | |
Weight | 0.48Kg |
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small
order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thank for your interest.
