Single Turn 3386P 20K Ohm Trimmer Potentiometer

FOB Price

Negotiable / Piece

500 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.3386 trimmer potentiometer
2.10ohm~5M
3.factory price
4.high quanlity
5.free sample

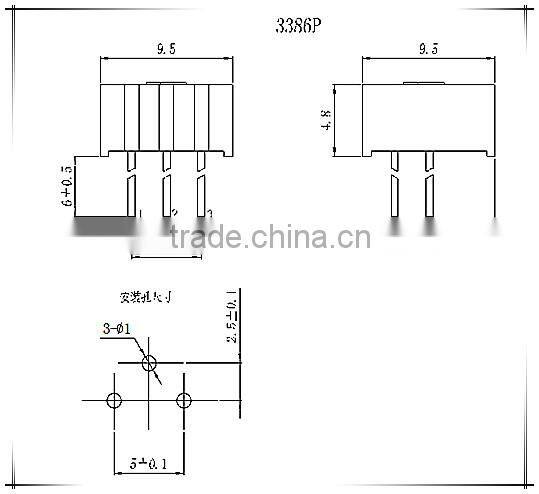

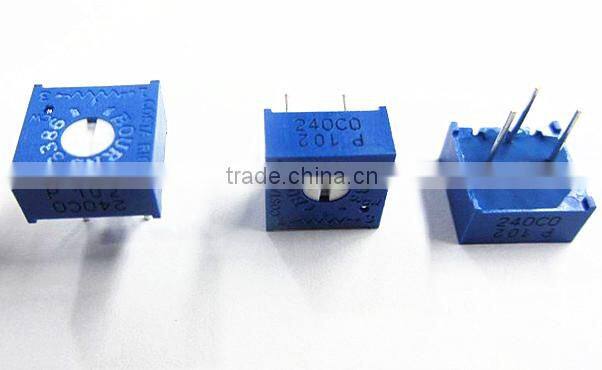

1,Potentiometer Picture & Drawing :

2, Characteristics of Potentiometer

Electrical Characteristics	Range of nominal resistance	10Ω~5MΩ
	Resistance tolerance	±10%

	Terminal resistance	≤±1%R or 2Ω

	Contact resistance variation (CRV)	≤±1%R or 3Ω
	Insulation resistance	≥ 1GΩ (100V AC)

	Withstand voltage	500V (DC or AC peak value)

	Effective electrical travel	≥ 250 °

Environment Characteristics	Rated power	0.5W ( 300V max)
	Temperature range	-55°C~+125°C

	TCR	±250×10-6/°C

	Collision (390m/S2, 4000 times)	ΔR≤±1%R

	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS

	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R,ΔUab/Uac≤±2%R

	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ

	Electrical endurance (0.5W, 1000h)	ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω

	Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω

	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ


Physical Characteristics	Total mechanical travel	300 ° ± 10°
	Starting torquE	≤20mN.m

	Standard package	50 pcs /tube

3,Certification Of Products

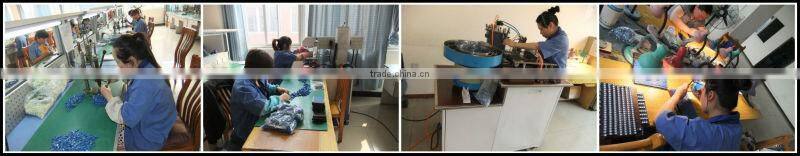

4, Production flow chart

5, Product packaging

6,Ways of Delivery

7,Payment Terms

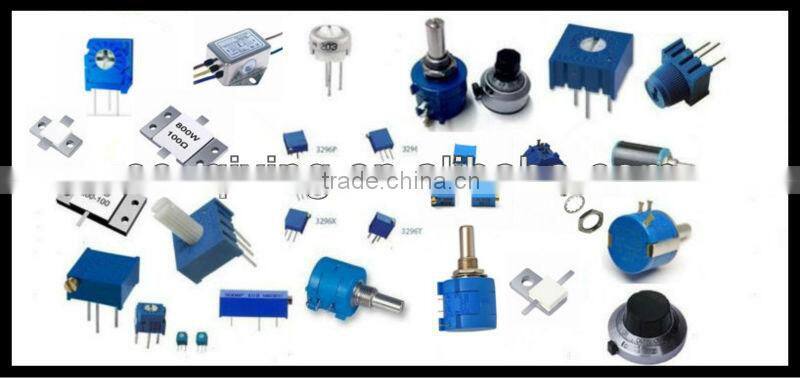

8,We also can produce potentiometer. emi filter,RF power resistor as following:
