T8 Tube Lights G13 Led Tube
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| LED Light Source | Epistar SMD2835 | Warranty(Years) | 5 | |
| Input Voltage(V) | AC100-277V | Lamp Power(W) | 25 | |
| Lamp Luminous Flux(lm) | 3000 | Lamp Luminous Efficiency(lm/w) | 120 | |
| Color Temperature(CCT) | Pure White | Working Temperature(℃) | -25, 40 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | IP54 | Certification | CE, EMC, FCC, LVD, PSE, UL | |
| Place of Origin | Guangdong, China | Brand Name | Alite | |
| Model Number | T8 |
Product Description

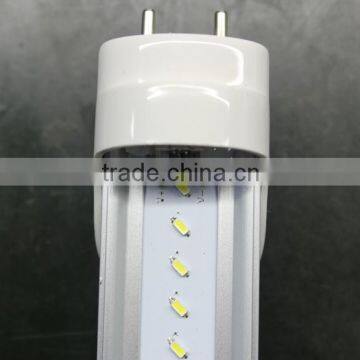

T8 Tube lights G13 led tube TUV CE approved
Product Feature of G13 led tube:
Ballast Compatible LED Tube is developed according to working principle of traditional fluorescent lamp and bal las t , which can be compatible with most existing electronic ballast & inductive ballast .

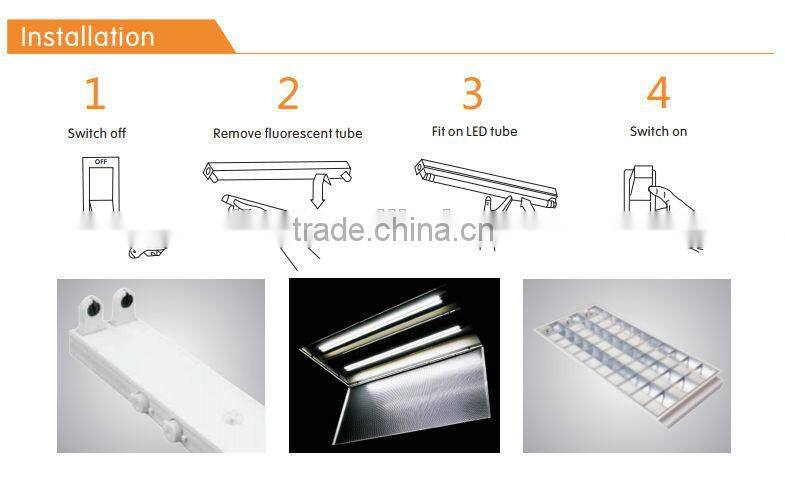

And installation is very easy , just direct replacement for fluorescent lamp. And it can meet safety standard of Europe , USA , Australia etc
Product Advantage of G13 led tube:
1. Compatible with Rapid Start, Instant start , dimming electronic ballasts and inductive ballasts etc. Most of existing ballasts .
2. Direct replacement for traditional fluorescent tubes ,no need to remove the starter & rewire .
3. Work with direct connection of AC90-277V ALSO .
4. Work well with one pc or more tubes when driven by one bullet in a parallel circuit .
5. Approved by UL/cUL CE ROHS FCC
6. 5 Years warranty
Specifications of G13 led tube:
T8-20W-1.2M-C | |||
Power Consumption | 20W | ||
Input Voltage | AC100V-277V | ||
Frequency | 50-60Hz | ||
Color | Warm white | Natural white | Cool white |
Color Temp. (Typical) | 3000K | 4000K | 6000K |
Luminous(Typical) | 2200lm | 2500lm | 2500lm |
Efficacy(Typical) | 120 lm/W | 125 lm/W | 125 Lm/W |
Color Rendering Index | >82 | >82 | >82 |
Power Factor | >0.92 | ||
Life Time | >50000hrs | ||
Housing Material | Pure Aluminum | ||
Beam Angle | 180° | ||
Operating Temp. | -25°C to +40°C | ||
Warranty | 3/5 Years | ||
Dimmable | NO | ||
Wiring Diagram of G13 led tube:

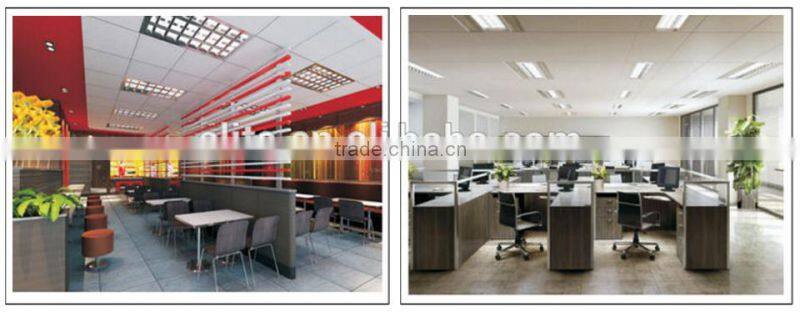

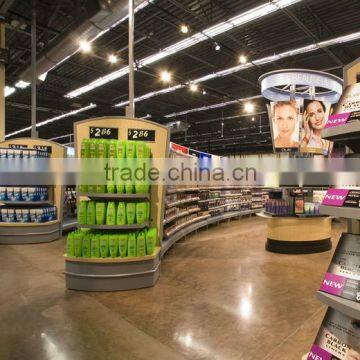

Applications of G13 led tube:
Warning of G13 bi-pin tube:
1) Do not use tubes in a closed fixture or under damp environment;2) Do not use for safety lamp or emergency lamp.
1, We accepted ODM and OEM produce.
2, Custom package and laser printing will be made with your LOGO according to your requirements. .
3, Best after sales service in LED industry:
Free maintenance or replacement if any quality problems caused while warranty period. And the shipping cost borne on us.
We supply 3-5 year guarantee and all he products with CE ,RoHS,UL,cUL,DLC,Energy star,PSE,SAA,Erp .
2, Payment term: TT; One-touch; L/C; T/T & D/P; T/T & OA; E-CREDIT LINE.So as to help you maintain cash flow and decrease your capital risks.
